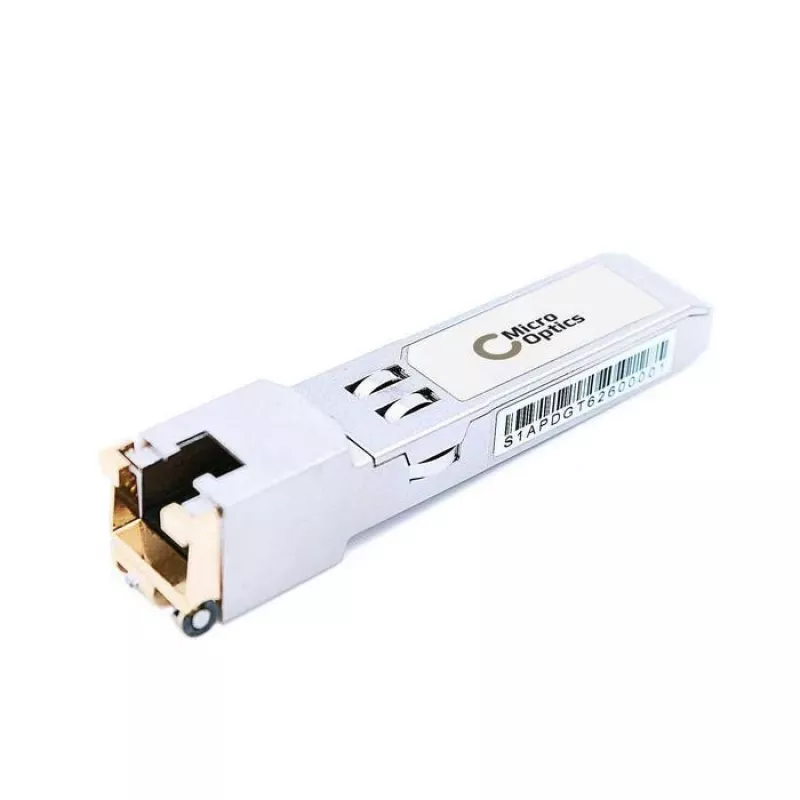

LANVIEW MO-FN-TRAN-GC SFP Copper Transceiver (1000Base-T, RJ-45, 100m) for Fortinet

Need dependable Gigabit Ethernet connectivity for your Fortinet network without breaking the bank? The LANVIEW MO-FN-TRAN-GC SFP transceiver delivers exactly that, providing a rugged, cost-effective copper connection for switches and firewalls that require SFP modules. Designed as a drop-in replacement for the Fortinet FN-TRAN-GC, this module ensures seamless integration with your existing FortiGate and FortiSwitch hardware.

Who is it for

Network administrators and IT professionals managing Fortinet environments who need short-range 1000Base-T connections over twisted-pair cabling. Whether you are linking an office switch to a firewall or connecting a server, this SFP module offers a plug-and-play solution with full compatibility.

Main features

• Gigabit Ethernet (1000Base-T) via Copper RJ-45 interface
• Maximum distance of 100 meters over Cat5e/Cat6 cabling
• Hot-swappable SFP form factor for easy installation and maintenance
• Full-duplex transmission for efficient data flow
• Digital Diagnostic Monitoring (DDM) enables real-time monitoring of optical parameters
• Low power consumption: less than 1.05 W

Specifications

• Brand: LANVIEW
• Model: MO-FN-TRAN-GC
• MPN: MO-FN-TRAN-GC
• EAN: 5715063307281
• Transceiver Type: SFP (mini-GBIC)
• Interface: 1 x 1000Base-T - RJ-45
• Connector Type: RJ-45
• Data Rate: 1 Gbps
• Max Distance: 100 m
• Duplex: Full-duplex
• Standards: IEEE 802.3ab, SFP MSA
• Hot-Plug: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Operating Humidity: 0% - 95% (non-condensing)
• Compatibility: Fortinet FortiGate, FortiSwitch devices with SFP ports

Tips

Use Cat5e or better twisted-pair cable to achieve the full 100-meter distance. The module supports hot-swapping, so you can replace it without powering down your equipment, but always handle the module by its edges and avoid touching the copper contacts.
