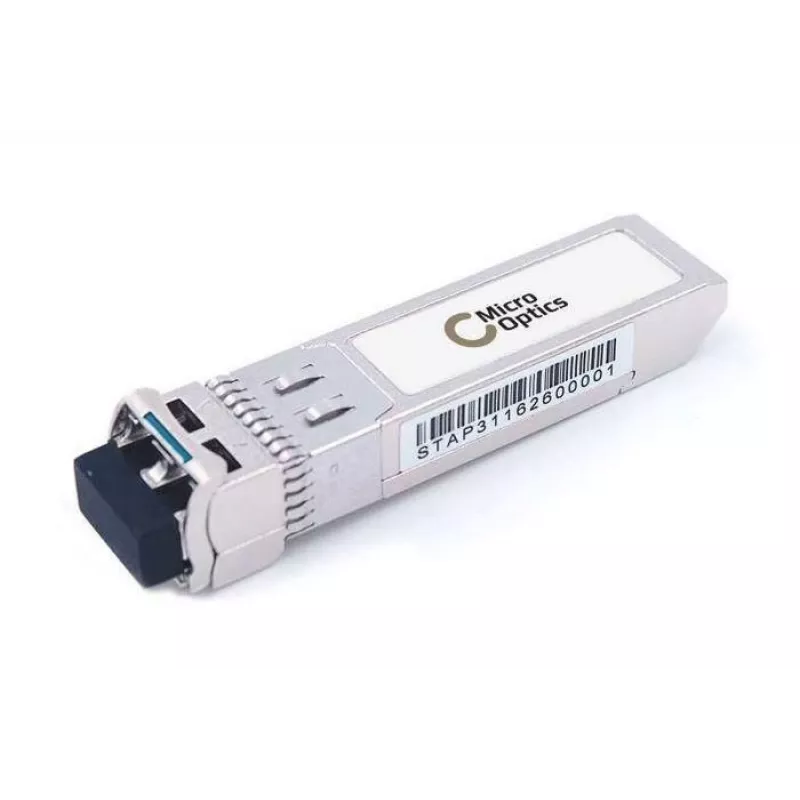

Lanview MO-C-S311X2-3CDL10 network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm

The Lanview MO-C-S311X2-3CDL10 is a Micro-Optics SFP+ fiber optic transceiver module engineered for 10 Gbit/s networks. Operating at a 1310 nm wavelength and supporting data rates up to 10000 Mbit/s, this MSA‑certified module is intended for reliable long-distance optical links. Its compact form factor (13.4 mm × 56.5 mm × 8.5 mm) allows installation in SFP+ slots across a range of switches and routers.

Advantages

The module provides stable 10 Gbit/s performance with MSA compliance to ensure broad interoperability. Its 1310 nm optical wavelength is suited for extended reach fiber connections. Small dimensions and standard SFP+ interface simplify replacement and deployment in dense network environments.

Suitable for

• Long-distance 10 Gbit/s fiber links
• SFP+ ports in switches and routers
• Data center uplinks and aggregation
• Telecommunications and enterprise backbone connections

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s
• Wavelength: 1310 nm
• Certification: MSA
• Dimensions (W×D×H): 13.4 mm × 56.5 mm × 8.5 mm
• MPN: SFP-10G-LR
• EAN: 5711045423185

How to use

Insert the Lanview MO-C-S311X2-3CDL10 into an available SFP+ port on a compatible switch, router or transceiver cage until it clicks into place. Connect the appropriate single-mode fiber cable using matching LC connectors and ensure transceiver settings (speed/duplex and SFP+ compatibility) on the host device are configured according to the network requirements. Monitor link status via the host device to confirm successful negotiation.

Recommendations

Use single-mode fiber suitable for 1310 nm operation and follow manufacturer guidelines for ESD protection when handling the SFP+ module. Verify compatibility with the host device firmware and keep optical connectors clean to maintain signal quality.
