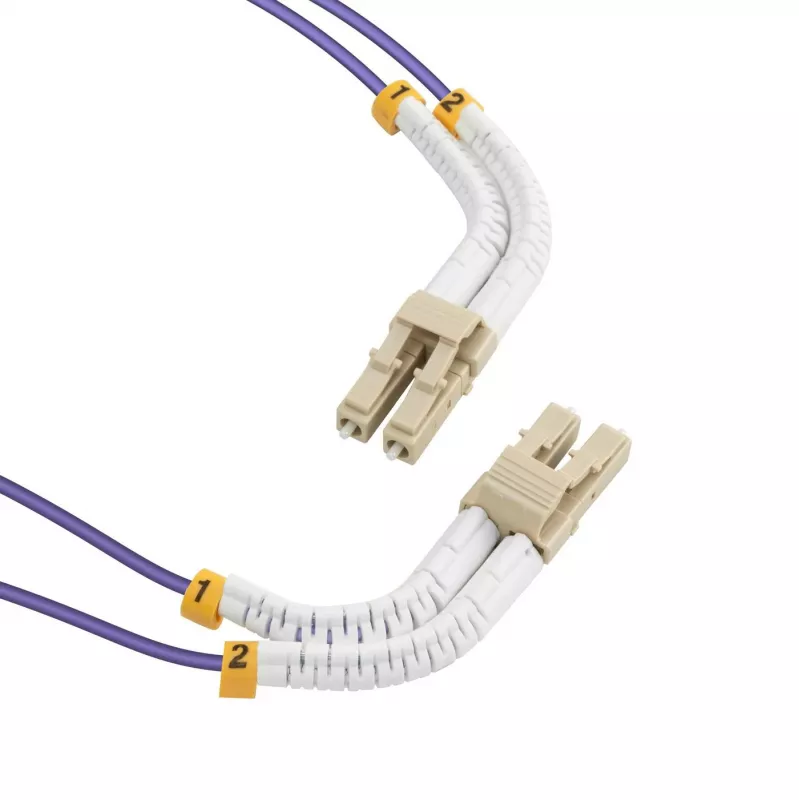

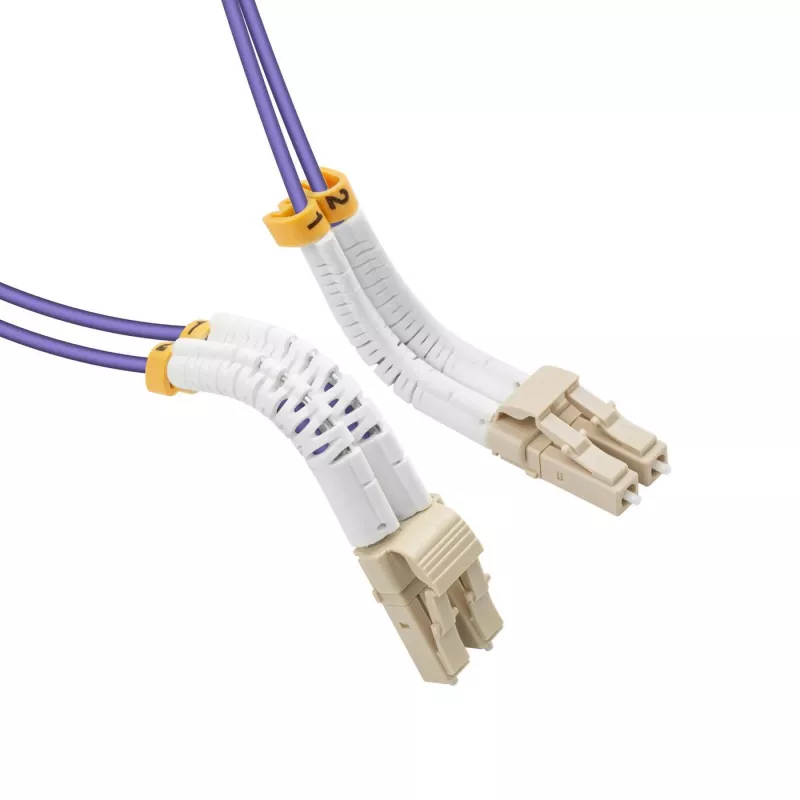

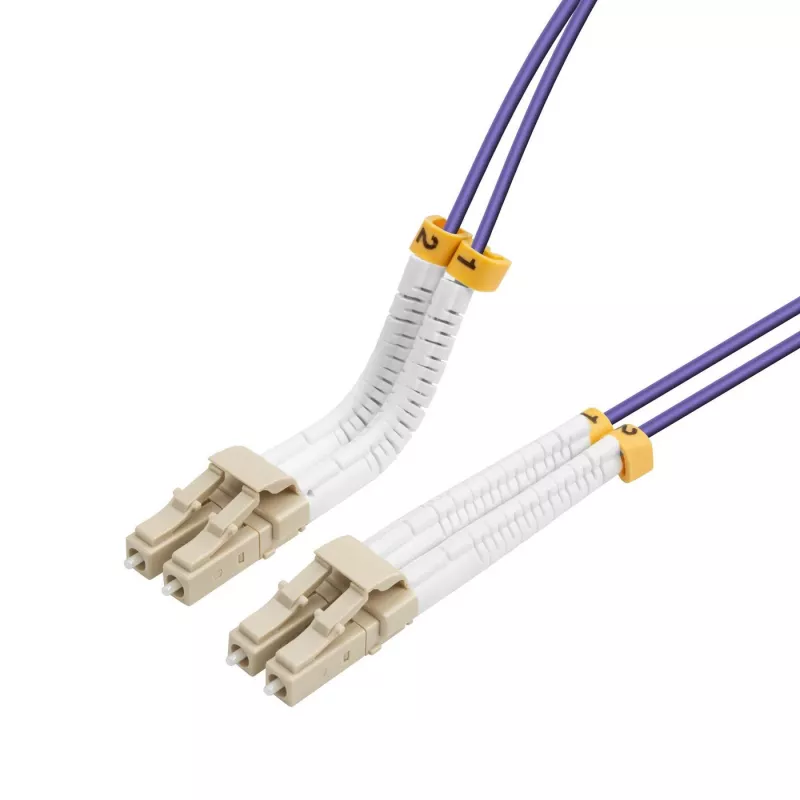

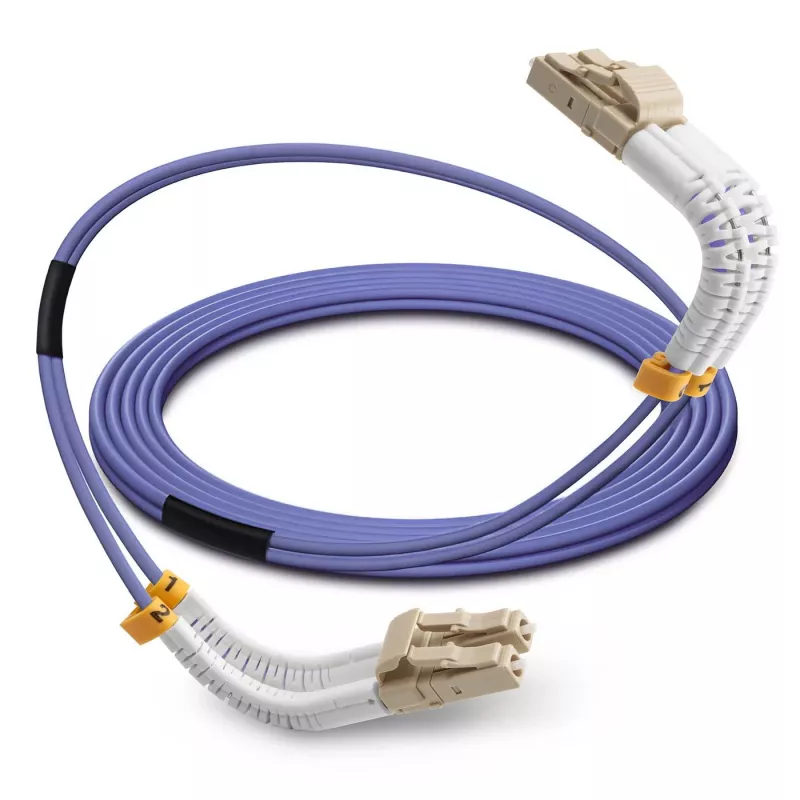

Lanview LVO231812-FLEX InfiniBand/fibre optic cable 3 m LC LC/LC Purple

The Lanview LVO231812-FLEX is a 3 m fibre optic cable with LC to LC connectors, built with OM4 multimode fibre (50 µm core) for high-speed data transmission. The cable features a bendable boot constructed around a single stainless-steel wire that can be manually adjusted and will hold the chosen angle from straight to 90 degrees, allowing reliable connector positioning in confined or high-density environments. The purple cable is intended for full-duplex connections in data centers and network equipment where precise cable direction is required.

Advantages

The flexible boot enables on-the-fly angle adjustment and maintains the set position without tools, facilitating installation and re-routing in tight spaces. OM4 multimode fibre ensures high bandwidth over short to medium distances, and the LC/LC connector pair provides compatibility with common transceivers and patch panels. The compact LC form factor combined with the bendable design reduces strain on connectors and eases cable management.

Suitable for

• Data centre patching and rack installations
• High-density network panels and switch connections
• Short- to medium-range multimode links requiring OM4 performance
• Environments with restricted space where connector angle control is needed

Key specifications

• Cable type: LC/LC
• Fibre type: OM4 multimode (50 µm core)
• Length: 3 m
• Connector 1: LC
• Connector 2: LC
• Product colour: Purple
• Weight: 0.08 kg
• MPN: LVO231812-FLEX
• EAN: 5715063505991

How to use

Position the cable and manually bend the stainless-steel–reinforced boot to the required angle, from straight up to 90 degrees, then insert the LC connectors into the appropriate ports or patch panel ports until they click. To change routing or disconnect, straighten the boot and remove the connector. Use standard handling procedures for multimode fibre patch cords: avoid tight kinks beyond the designed bend, keep connectors clean, and store with gentle loops when not in use.

Recommendations

For reliable performance, clean LC connectors before insertion, avoid exceeding the designed bend radius of the fibre beyond the boot's adjustable range, and use OM4-compliant transceivers and patch equipment for optimal multimode throughput.
