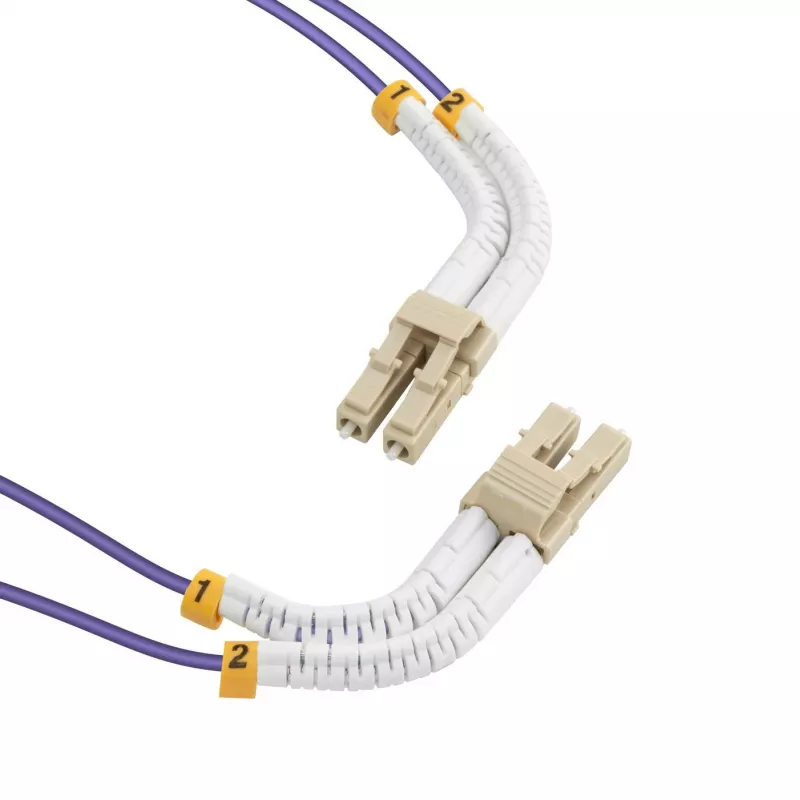

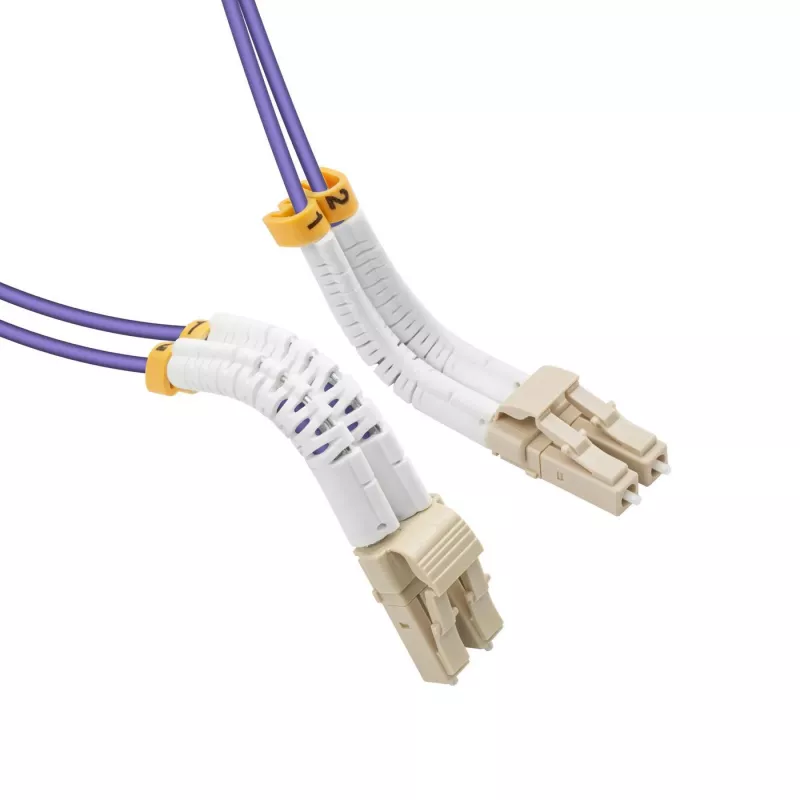

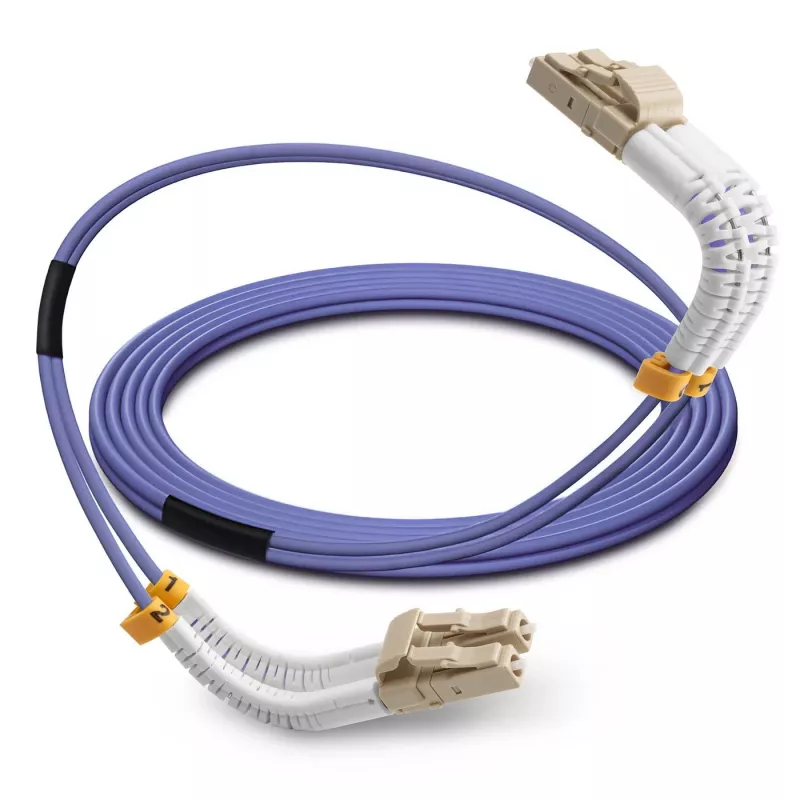

Lanview LVO231811-FLEX InfiniBand/fibre optic cable 2 m LC LC/LC Purple

The Lanview LVO231811-FLEX is a 2 m OM4 fibre optic patch cable with LC connectors on both ends, designed for full-duplex high-speed data transmission. The jacket is purple and the boot incorporates a bendable stainless-steel wire that lets you set and keep an angle from straight to 90° for precise connector routing in high-density or confined installations.

Advantages

The bendable boot is manually adjustable and holds the chosen angle without tools, allowing rapid repositioning or straightening for connector disconnection. OM4 multimode fibre with a 50 µm core supports high-bandwidth links while the LC/LC termination provides compact, widely compatible connections. The 2 m length and lightweight construction make the cable convenient for rack, patch panel and equipment interconnects.

Suitable for

• Data center patch panels and high-density racks
• Server-to-switch optical connections
• Telecommunications closets and network cabinets
• Environments with limited clearance behind equipment

Key specifications

• Cable type: LC/LC
• Length: 2 m
• Fibre type: OM4 multimode (50 µm core)
• Configuration: full duplex
• Colour: Purple
• Weight: 0.04 kg
• Manufacturer part number: LVO231811-FLEX
• EAN: 5715063505984

How to use

Hand-bend the boot around its internal stainless-steel wire to set the desired routing angle from straight to 90° and insert the LC connectors into the corresponding ports until they click. To disconnect, straighten the boot as needed and depress the LC latch before pulling the connector out. Route the cable to avoid sharp bends beyond the settable range and secure it to prevent strain on connectors.

Recommendations

Use the adjustable boot when working in cramped or high-density setups to achieve optimal connector orientation; avoid exceeding the cable's minimum bend radius and do not apply excessive force to the connectors or boot when adjusting angle.
