Lanview LVO231407-FLEX InfiniBand/fibre optic cable 2 m LC LC/LC Yellow

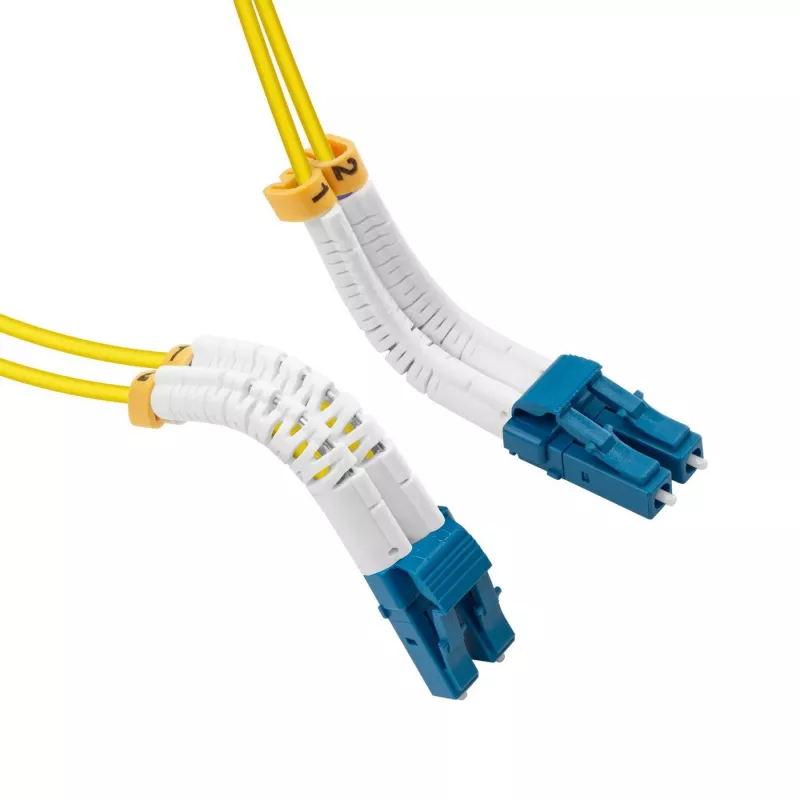

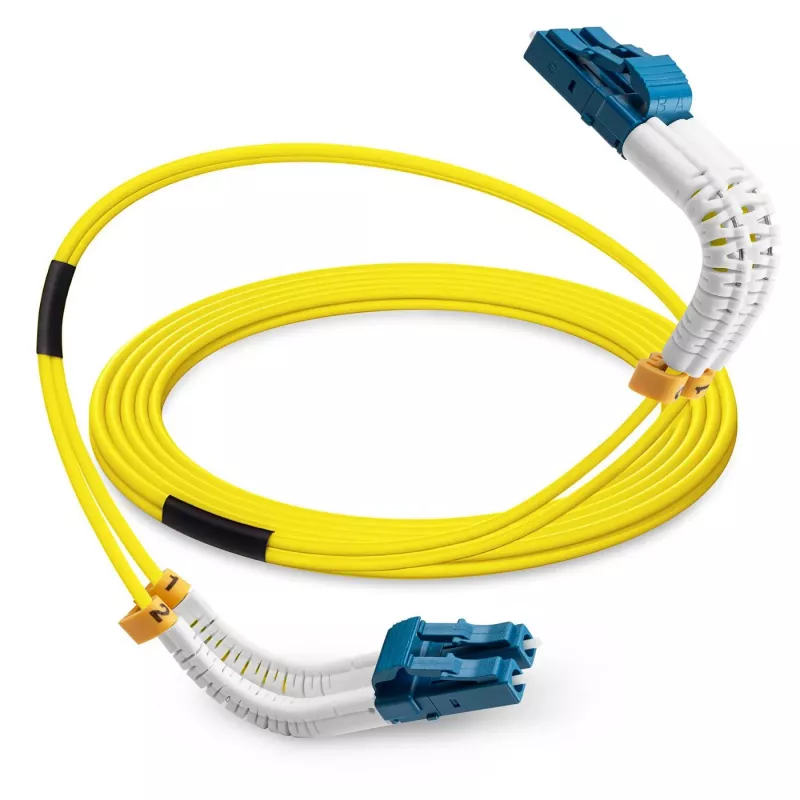

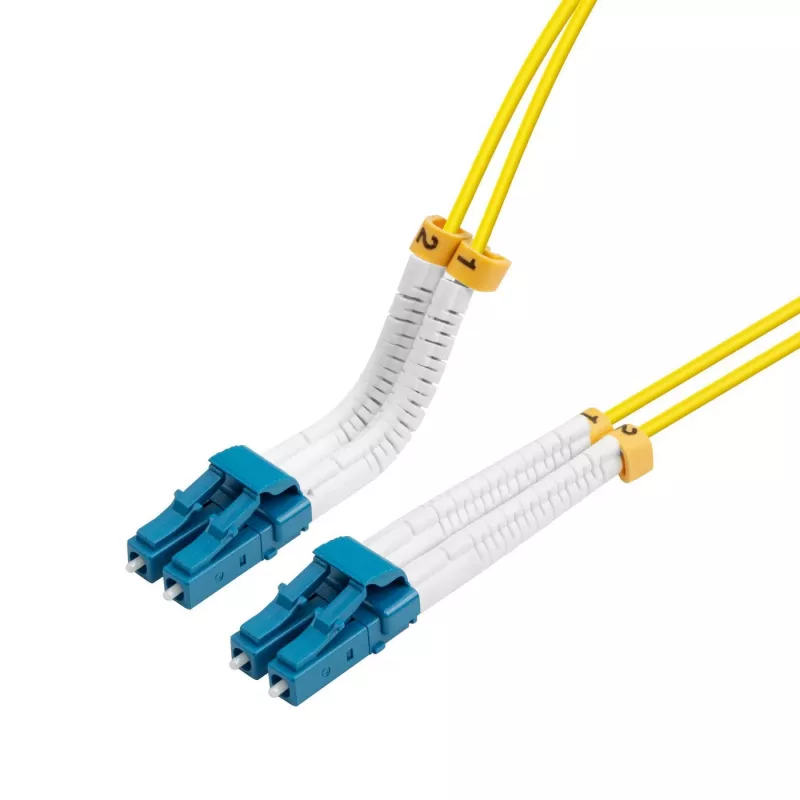

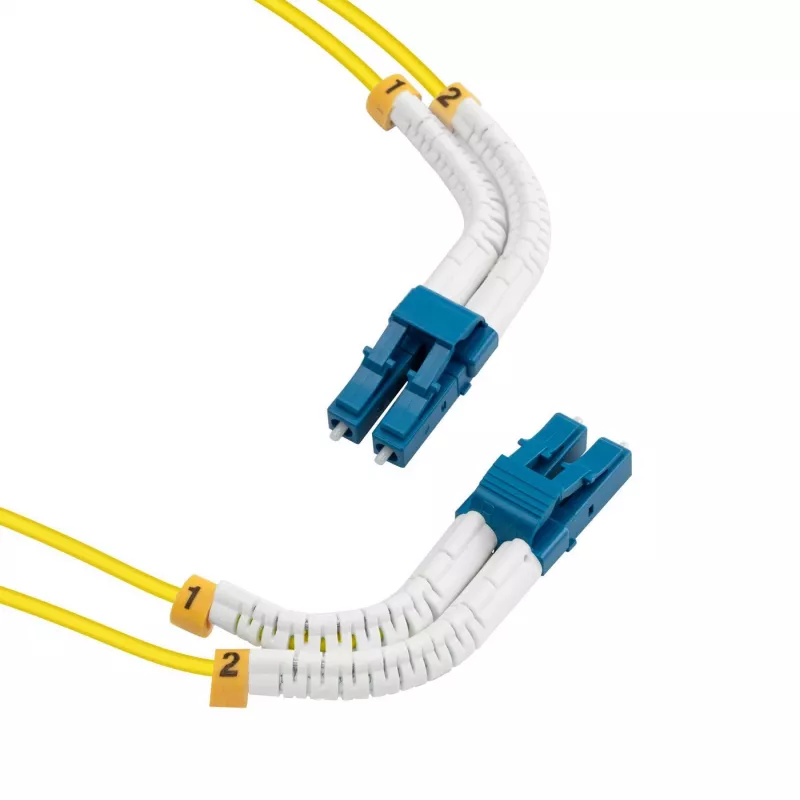

The Lanview LVO231407-FLEX is a 2 m fibre optic cable with LC connectors on both ends, designed for OS2 single-mode applications. The cable features a bendable boot molded around a single stainless-steel wire that can be manually adjusted to hold any angle from straight up to 90 degrees, allowing secure connector positioning in confined or high-density installations.

Advantages

The bendable boot preserves the chosen angle while remaining re-shapable or straightenable for connector disconnection. OS2 single-mode construction with a 9 µm core provides low loss and reliable high-speed transmission. A bright yellow jacket ensures easy identification in cable runs and racks.

Suitable for

• High-density patch panels and densely packed network racks
• Installations with limited space behind equipment
• Data centres and telecommunication rooms requiring OS2 single-mode links
• Permanent or temporary connections where connector orientation must be fixed

Key specifications

• Cable type: LC/LC
• Cable length: 2 m
• Fibre type: OS2 single-mode (9 µm core)
• Connector 1: LC
• Connector 2: LC
• Product colour: Yellow
• Weight: 0.04 kg
• MPN: LVO231407-FLEX
• EAN: 5715063506097

How to use

Insert the LC connectors into the corresponding adapter or transceiver ports. Manually bend the molded boot to the desired angle; the internal stainless-steel wire will hold the position. If needed, straighten the boot to allow connector removal. Handle the fibre by the connector boots and avoid bending the fibre beyond the boot's limits outside the reinforced section.

Recommendations

For optimal performance, use the cable in environments appropriate for OS2 single-mode fibre, avoid sharp bends beyond the booted area, and ensure connectors and adapters are clean before mating to minimise insertion loss.
