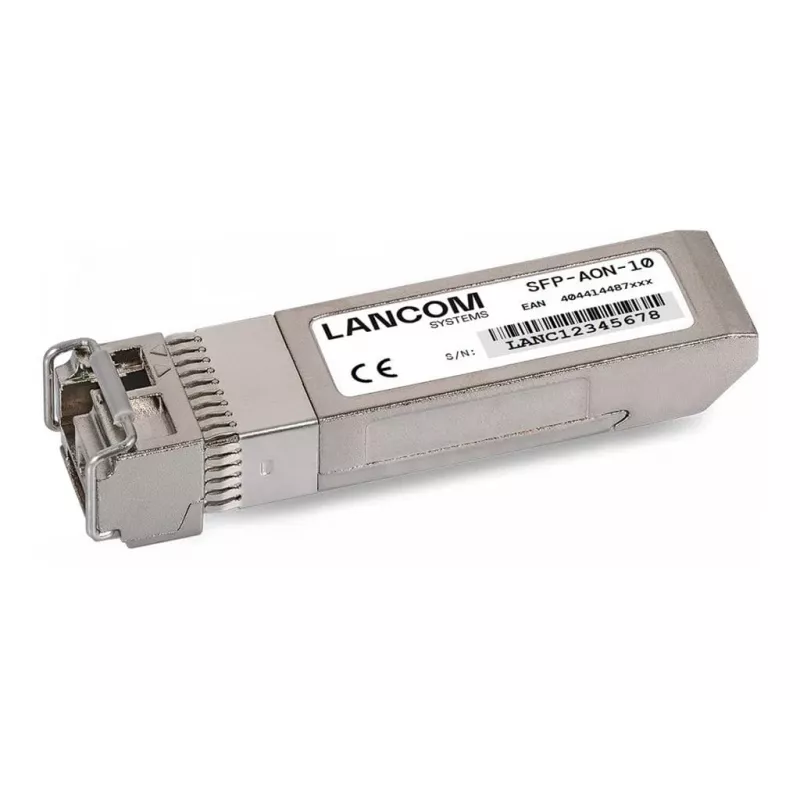

LANCOM SFP-AON-10

The LANCOM SFP-AON-10 is an SFP fiber-optic transceiver designed for direct connection to Active Optical Network (AON) FTTH lines. It provides up to 10 Gbit/s bidirectional data throughput via an SFP interface and is compatible with selected LANCOM devices. The module is supplied in a stainless-steel housing, consumes about 1.4 W in typical operation, and is packaged with a 3 m LC/APC to LC/UPC cable for immediate installation.

Advantages

The transceiver supports AON architectures with up to 10 Gbit/s, enabling direct fiber connections without requiring a separate provider modem or additional power supply for a modem. This reduces cabling and installation complexity while maintaining a constant high-speed link suitable for demanding network environments. Designed for straightforward integration with LANCOM equipment, the module simplifies upgrading existing sites to 10G AON access.

Suitable for

• Direct 10G connection to AON FTTH lines
• Integration into LANCOM edge and gateway devices in small to large networks
• High-bandwidth links for branch offices, central sites, or data backhaul

Key specifications

• Form factor: SFP fiber-optic transceiver
• Maximum data transfer rate: 10,000 Mbit/s (10 Gbit/s)
• Interface: SFP (connects to SFP+ ports on compatible devices)
• Housing colour: stainless steel
• Typical power consumption: 1.4 W
• Included cable: 3 m LC/APC to LC/UPC
• Operating temperature range: 0 °C to 70 °C

How to use

Insert the LANCOM SFP-AON-10 into a compatible SFP/SFP+ port on a supported LANCOM device. Connect the included 3 m LC/APC to LC/UPC cable between the transceiver and the incoming AON fiber line according to the fiber polarity and connector types. After physical installation, verify link status on the LANCOM device and apply any required interface configuration in the device management interface. No separate provider modem is required when using this transceiver with an AON FTTH connection.

Recommendations

Use the module in supported LANCOM devices with SFP/SFP+ ports and confirm compatibility with the exact device model. Ensure clean fiber connectors and correct APC/UPC mating to maintain signal quality. Operate the transceiver within the specified temperature range and follow standard ESD handling procedures during installation.
