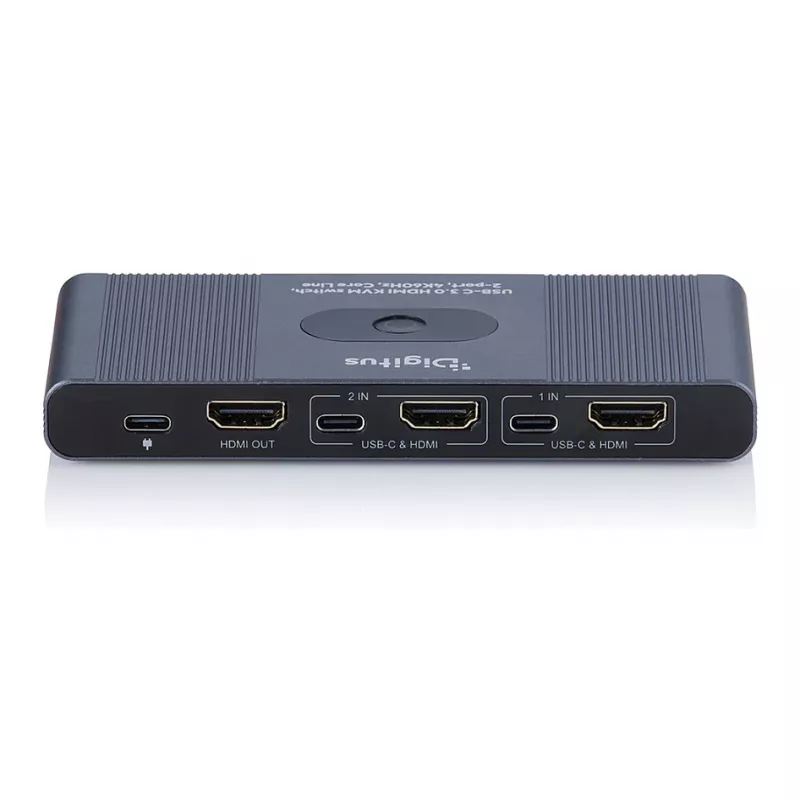

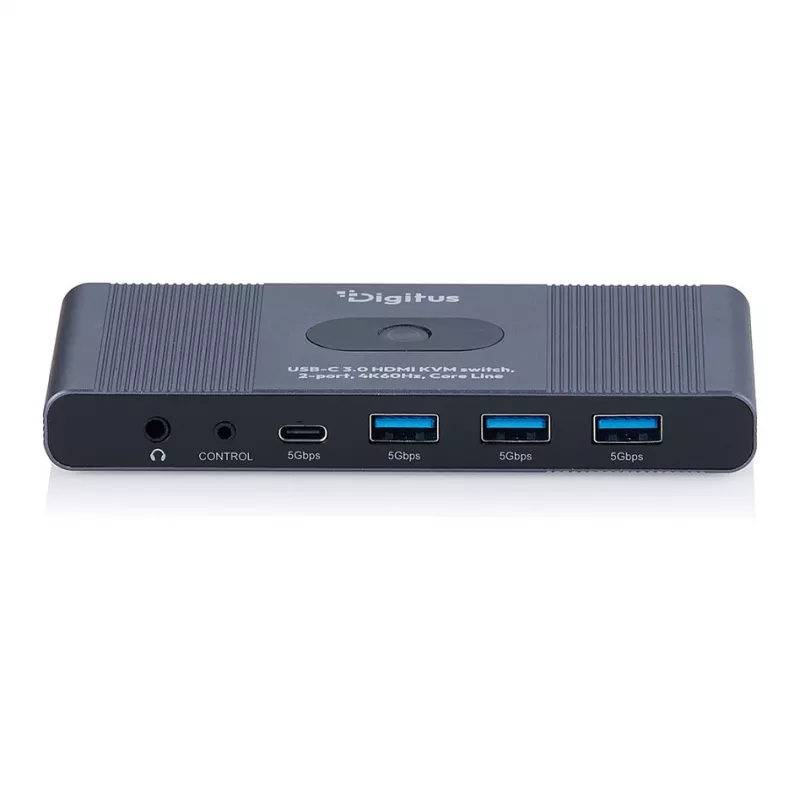

KVM switch DIGITUS USB-C 3.0 HDMI 2‑port 4K60Hz, USB-C/USB-A, aluminium, 135×60×30 mm

The DIGITUS USB-C 3.0 HDMI 2‑port 4K60Hz KVM switch is a compact desktop unit that lets you control two computers with one monitor, one keyboard and one mouse. The aluminium housing (135 × 60 × 30 mm) provides a robust, space-saving solution for multi‑PC workstations and AV setups. Video output supports up to 4K Ultra HD (3840×2160) at 60Hz with YUV 4:4:4, HDR and HDCP compatibility, while USB 3.0 connectivity allows sharing of peripherals and fast data transfer. Power is supplied via USB‑C; an optional 5V/2A adapter is recommended for high‑power USB devices.

Advantages

The unit enables seamless switching between two HDMI‑enabled devices without reconnecting cables, keeping workspaces tidy and reducing downtime. USB 3.0 ports deliver data transfer rates up to 5 Gbps for external drives and flash media, and the integrated 3.5 mm audio output supports stereo audio formats. Switching is possible via the front button or the included wired remote control with magnetic base for flexible placement. The aluminium housing supports heat dissipation and provides a durable, premium feel in a compact footprint.

Suitable for

• Home office setups with a laptop and desktop PC
• Small office workstations where one monitor and input set is shared
• Multimedia presentations and meeting rooms requiring 4K video
• Gaming setups that switch between console and PC
• AV workstations that share external USB drives or audio output

Key specifications

• Supported resolution: up to 4K Ultra HD (3840×2160) at 60Hz (YUV 4:4:4)
• Video bandwidth: up to 6 Gbit/s per channel, 18 Gbit/s total
• HDCP support: HDCP 1.4 / 2.2
• HDR and 3D content support
• USB interfaces: USB‑C 3.0 input and USB‑A 3.0 ports (USB 3.2 Gen 1) for peripherals and storage (up to 5 Gbps)
• Audio output: integrated 3.5 mm stereo jack, supports LPCM, DTS, Dolby Digital, TrueHD
• Control: front panel button and wired remote control (1.5 m) with magnetic base
• Power: USB‑C powered (DC 5V); optional external 5V/2A adapter recommended for power‑hungry devices
• Housing: aluminium, colour grey
• Dimensions: 135 × 60 × 30 mm; weight: approx. 227 g
• Number of computers supported: 2
• Video port type: HDMI

How to use

Connect each computer to the KVM switch using the provided HDMI and USB cables (USB‑C or USB‑A depending on the host). Connect your monitor to the HDMI output and plug your keyboard and mouse into the available USB ports. Power the unit via the USB‑C power input; if you connect high‑power USB devices such as external SSDs, use an optional 5V/2A adapter to ensure stable operation. Switch between connected devices using the front button or the supplied wired remote control. The device is plug‑and‑play and does not require additional drivers for basic operation.

Recommendations

For reliable 4K@60Hz performance and stable peripheral operation, use high‑quality HDMI cables capable of 18 Gbit/s, connect USB 3.0 compatible drives for full transfer speeds, and provide an external 5V/2A power supply when using power‑hungry USB devices or multiple external drives.
