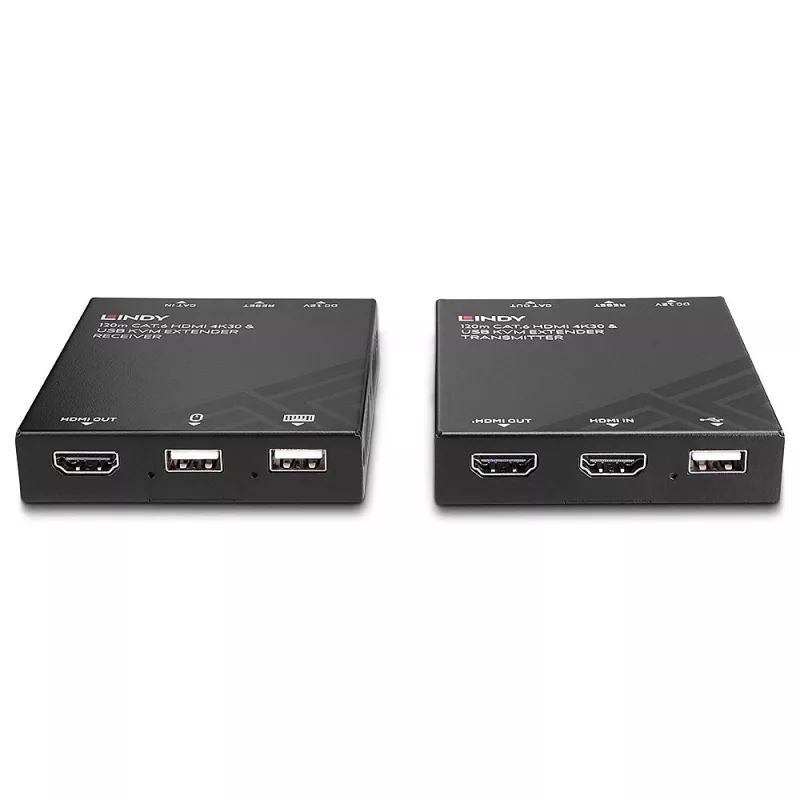

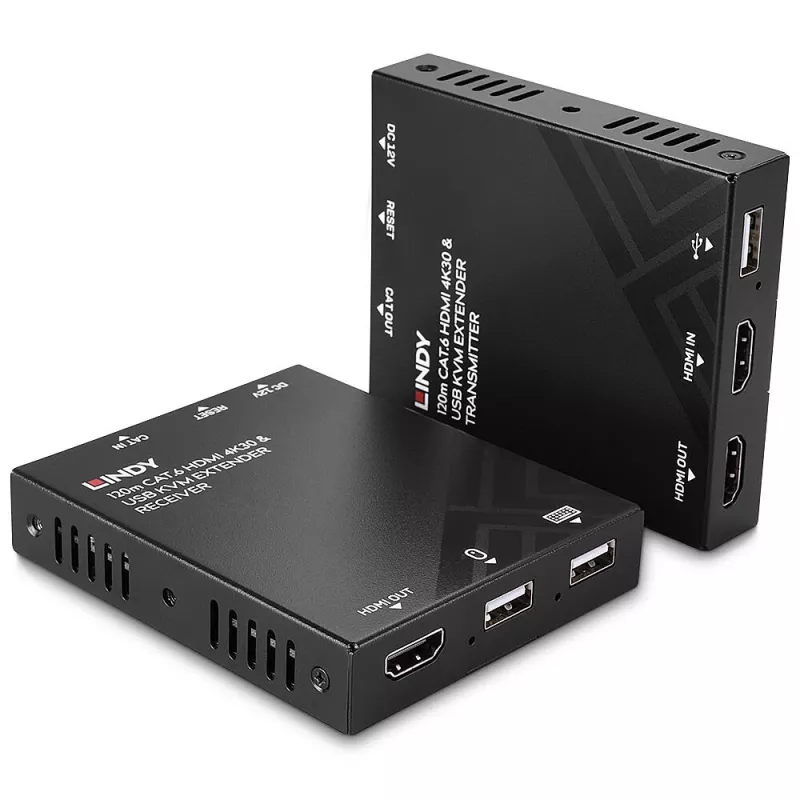

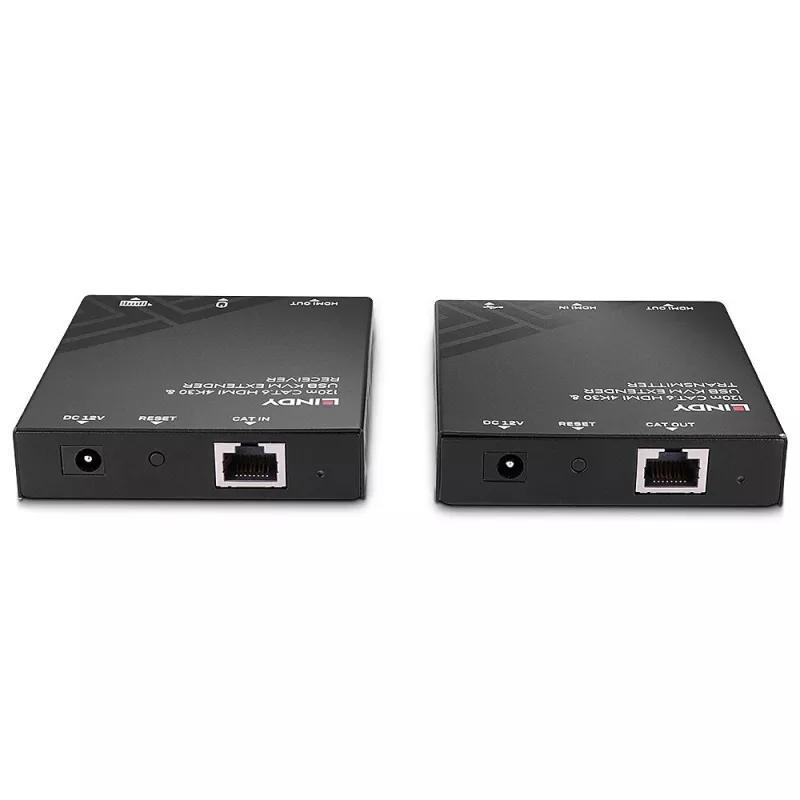

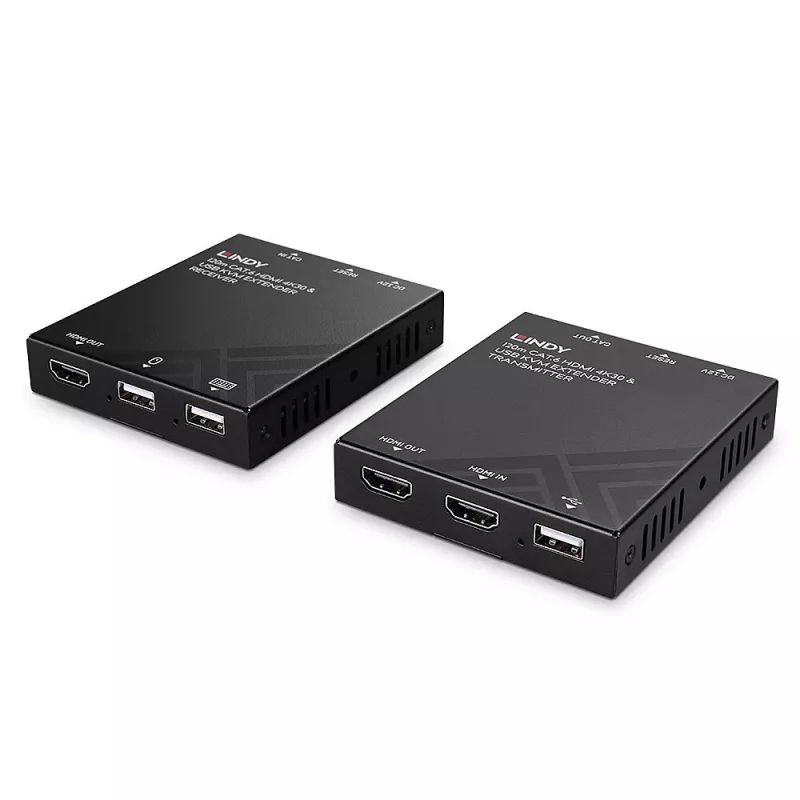

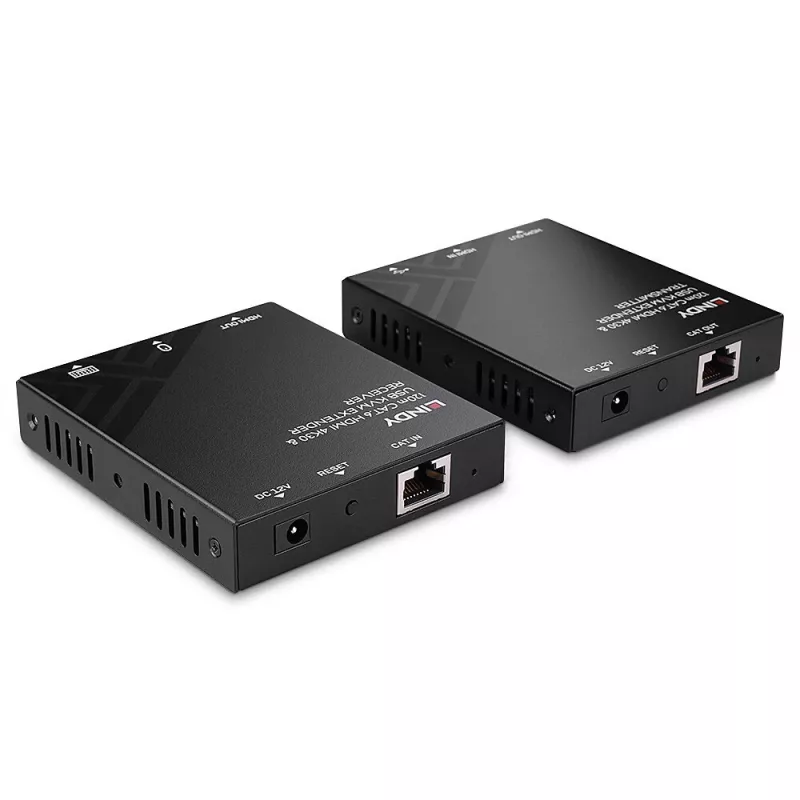

KVM Extender Lindy 120m Cat.6 HDMI and USB Transmitter & Receiver

The Lindy 120m Cat.6 HDMI and USB KVM Extender is a point-to-point transmitter and receiver kit that extends HDMI video and USB HID signals up to 120 metres over Cat.6 network cable. It is designed to provide remote access to a PC or other USB source device from a single keyboard, mouse and display while maintaining Full HD (1920x1080) resolution and offering an HDMI loop-through on the transmitter for local monitoring.

Advantages

This KVM extender supports PoC (Power over Cable), allowing the receiver to be powered via the Cat.6 cable so only one power supply is required at the transmitter end. The unit provides plug-and-play USB keyboard/mouse support and reliable HDMI transmission over a single network cable, with metal enclosures for stability and a compact transmitter/receiver pair suited for professional AV and KVM use.

Suitable for

• Remote workstation control in offices and control rooms
• Lecture halls, classrooms and conference rooms
• Digital signage and retail display installations
• Home cinema or AV setups requiring separated source and display

Key specifications

• Transmission distance: up to 120 m over Cat.6 cable
• Video support: up to Full HD 1920x1080
• Ports (transmitter): HDMI video, HDMI loop-out
• Ports (receiver): HDMI local output, USB for keyboard/mouse
• Power: PoC (Power over Cable) supported — single power supply required at transmitter
• Includes: transmitter and receiver
• Material: metal
• Colour: black
• Warranty: 2 year

How to use

Connect the transmitter to the source device using an HDMI cable and attach the transmitter power supply. Run a single Cat.6 cable from the transmitter to the receiver. If required, connect a local display to the transmitter HDMI loop-out. Connect a keyboard and mouse to the receiver USB ports and connect the receiver to the remote display with HDMI. Power can be supplied only at the transmitter when using PoC, otherwise provide power to both units as needed. Do not connect through active network switches or routers; use a direct point-to-point Cat.6 connection.

Recommendations

Use high-quality Cat.6 cables and secure connectors to maintain signal integrity over long runs. Ensure point-to-point cabling without intermediate network devices. Verify source and display support Full HD 1920x1080 for optimal results.
