KVM Console Inter-Tech KVM-1708 17 inch 1280x1024

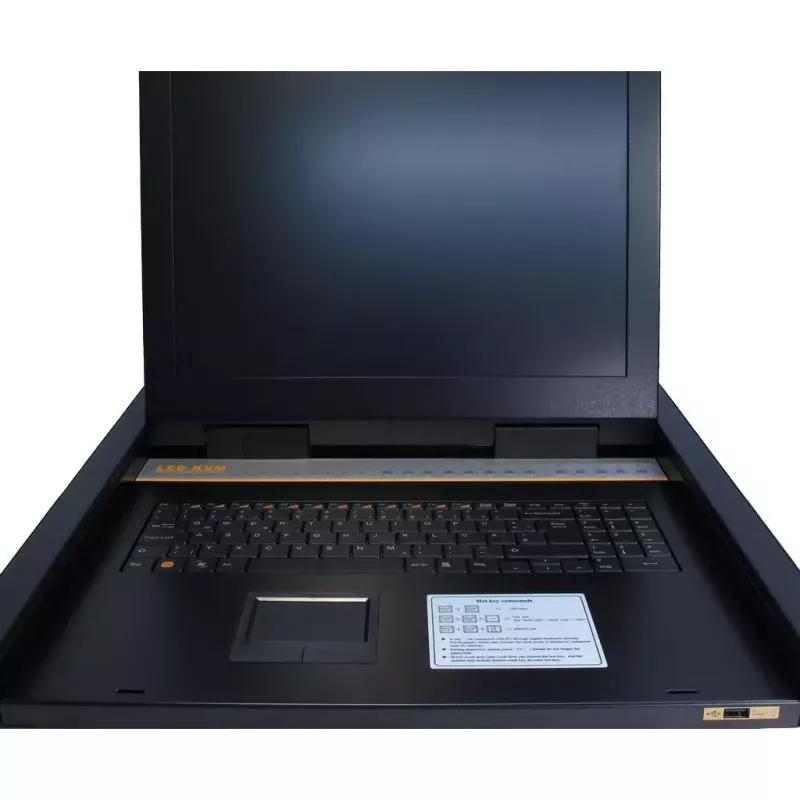

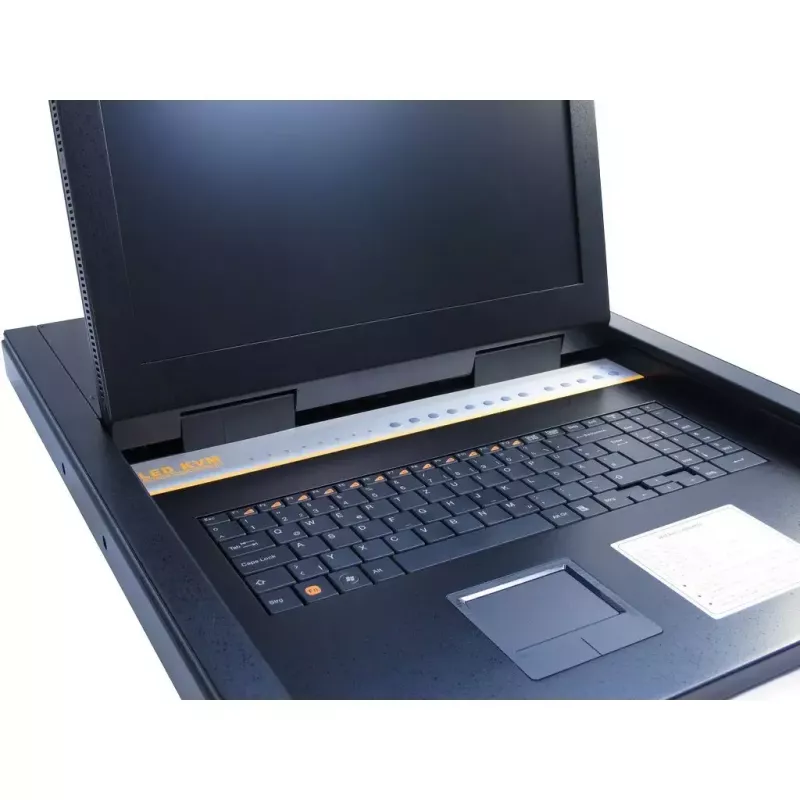

The KVM-1708 LED is a professional 8-port rack console with an integrated extractable keyboard and a 17" LED monitor with 1280 x 1024 resolution and 300 cd/m² brightness. Designed for installation in server racks, the Inter-Tech KVM-1708 provides USB and PS/2 connections for keyboard and mouse and a VGA video port. With a compact 1U-compatible chassis (480 mm width, 44 mm height, 610 mm depth), wide input voltage range (100–240 V) and 30 W power supply, it is intended for managing multiple servers in data centre and IT environments.

Advantages

The unit combines monitor and retractable keyboard in a single 1U rack mount device, saving rack space and simplifying server access. Support for both USB and PS/2 keyboard and mouse interfaces ensures compatibility with various systems. Built-in password protection helps prevent unauthorized access to connected servers. The KVM-1708's durable metal housing and standard VGA connectivity provide reliable, long-term operation in professional installations.

Suitable for

• Server racks in data centres and server rooms
• IT maintenance and remote administration cabinets
• Environments requiring consolidated access to multiple servers

Key specifications

• Model: Inter-Tech KVM-1708
• Monitor: 17" LED, 1280 x 1024 pixels, 300 cd/m²
• Video port: VGA
• Keyboard / Mouse ports: USB and PS/2
• Number of controlled computers: up to 256
• Power: 30 W, input 100–240 V
• Dimensions (W×H×D): 480 × 44 × 610 mm
• Weight: 13.01 kg
• Colour: Black

How to use

Mount the KVM-1708 in a standard 19" rack using the included mounting brackets. Connect the console's VGA cable and keyboard/mouse interfaces (USB or PS/2) to the target servers or to KVM switch modules as required. Power the unit from a 100–240 V AC source. Use the integrated keyboard and monitor to switch between connected systems and enter the configured password when prompted for secure access.

Recommendations

For reliable operation, install the console in a properly ventilated rack space and ensure cables are secured to prevent strain. Configure unique user passwords and follow your organisation's access-control policies when granting console access.
