Kramer Electronics TP-583T 4K HDR HDMI HDBaseT Transmitter with IR and RS-232

The Kramer Electronics TP-583T is a professional 4K HDR HDMI HDBaseT transmitter designed for long-distance signal distribution. Part of the MegaTOOLS® line, it extends HDMI signals up to 40m at 4K@60Hz (4:4:4) and up to 70m at 1080p over a single RJ-45 cable, supporting HDR10 and HDCP 2.2. With built-in IR and RS-232 control pass-through, it integrates seamlessly into AV systems for remote device management.

Advantages

Reliable, fan-less design ensures silent operation in noise-sensitive environments. Power flexibility with local 12V DC or PoE from compatible receivers reduces cabling. Full 18 Gbps HDMI bandwidth supports high-resolution content without compression.

Suitable for

• Conference rooms and boardrooms requiring 4K signal extension
• Digital signage installations over long distances
• Education and healthcare AV systems
• Any professional AV setup needing reliable HDBaseT transmission

Key specifications

• Max Resolution: 4K@60Hz (4:4:4)
• HDR Support: HDR10
• HDCP Compliance: HDCP 2.2
• HDBaseT Range (4K): Up to 40m (130ft)
• HDBaseT Range (1080p): Up to 70m (230ft)
• HDMI Input: 1x HDMI Type A
• HDBaseT Output: 1x RJ-45
• Control Ports: 1x RS-232 (3-pin terminal block), 1x IR (3.5mm jack)
• HDMI Data Rate: 18 Gbps
• HDBaseT Data Rate: 10.2 Gbps
• Power: Local 12V DC or PoE
• Audio Formats: PCM, Dolby Digital, DTS-HD
• EDID Management: Pass-through
• Color Depth: 8-bit, 10-bit, 12-bit
• Enclosure: Fan-less

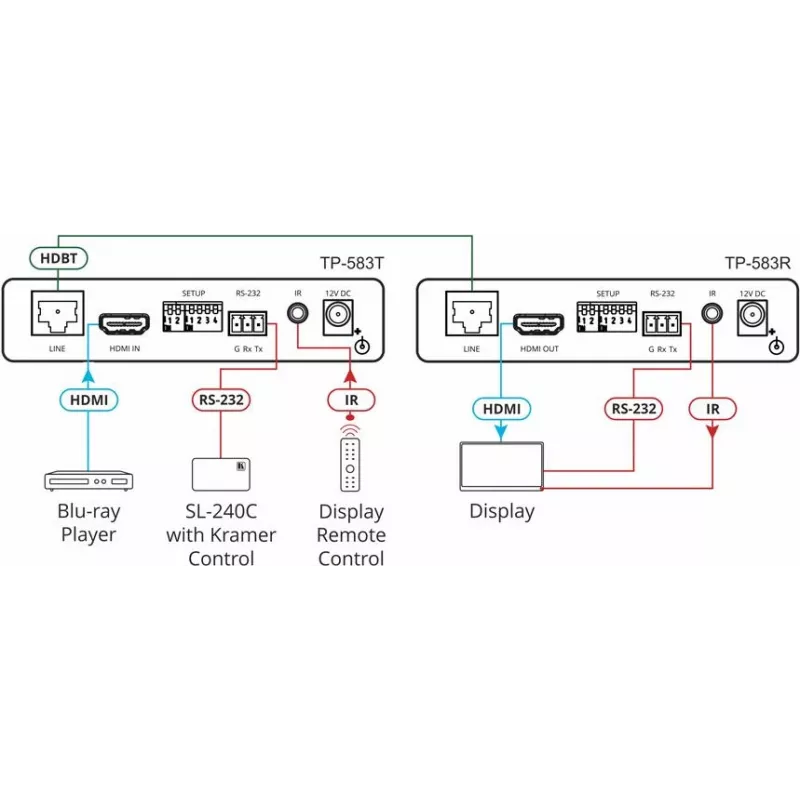

Recommendations

For optimal performance, use shielded CAT6/6a cable. Pair with a compatible Kramer HDBaseT receiver (e.g., TP-583R) for end-to-end signal integrity. Firmware updates can be performed via RS-232.
