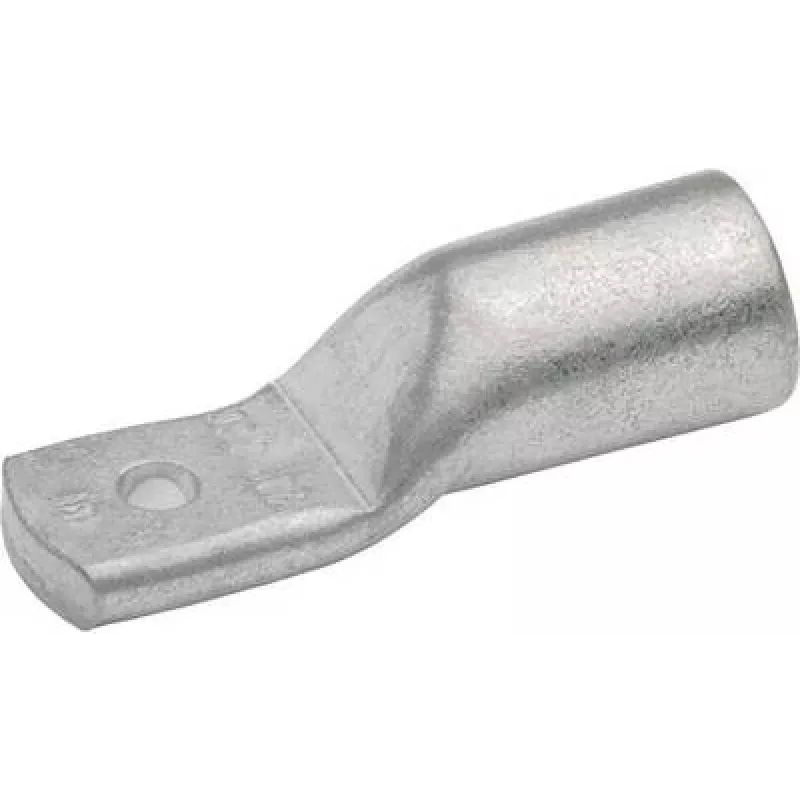

Klauke 8SG6 Tubular Cable Lug 95 mm² M6 for Switchgear

Klauke 8SG6 Tubular Cable Lug 95 mm² M6 for Switchgear
Klauke 8SG6 Tubular Cable Lug 95 mm² M6 for Switchgear
R573
Electrical installers and switchgear assemblers use the Klauke 8SG6 tubular cable lug to terminate 95 mm² copper conductors with an M6 bolt. The lug is crimped onto the conductor, creating a durable, low-resistance connection in industrial power distribution and control cabinets.Key specificationsCo... Read More
Stock 139 Code 3529716 Brand KLAUKE Model 8SG6 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Electrical installers and switchgear assemblers use the Klauke 8SG6 tubular cable lug to terminate 95 mm² copper conductors with an M6 bolt. The lug is crimped onto the conductor, creating a durable, low-resistance connection in industrial power distribution and control cabinets.

Key specifications

  • Conductor cross-section: 95 mm²
  • Bolt hole: M6 (6.4 mm diameter)
  • Material: Electrolytic copper, tin-plated
  • Overall length: 55 mm
  • Palm width: 22 mm
  • Palm thickness: 3.5 mm
  • Barrel inner diameter: 13.5 mm
  • Barrel outer diameter: 17.5 mm
  • Inspection hole: Yes
  • Standard: DIN 46235

Why choose it

Tin plating provides corrosion resistance and reliable contact. The inspection hole allows visual confirmation of full conductor insertion before crimping.

Ideal use cases

  • Switchgear and control panel wiring
  • Industrial power distribution
  • Motor and transformer connections

Good to know

Use with a suitable crimping tool for 95 mm² copper lugs. The lug is halogen-free and suitable for voltages up to 1000 V.

Specifications
Brand
Klauke
Category
Cable Lug
EAN
4012078461597
Functions
Crimp connection
Material
Electrolytic Copper, Tin-plated
Measurement range
95 mm² conductor cross-section, M6 bolt hole, up to 1000 V
Model
8SG6
MPN
8SG6
Product type
Tubular Cable Lug
Special features
Inspection hole, halogen-free
Weight
1 kg
