Klauke 110R12 Tubular Compression Cable Lug, 150 mm², M12, Electrolytic Copper, Tinned Gray

The Klauke 110R12 is a high-quality tubular compression cable lug designed for reliable and permanent connections of copper conductors. Manufactured from electrolytic copper (E-Cu) with an electro-tinned surface, it offers excellent corrosion resistance and conductivity. This lug conforms to DIN 46235 and is suitable for crimping with standard compression tools.

Advantages

Electro-tinned surface provides superior protection against oxidation and corrosion. Precision-machined barrel ensures consistent crimp quality. M12 bolt hole fits standard stud sizes. RoHS compliant for environmental safety.

Suitable for

• Copper conductors up to 150 mm² cross-section
• Power distribution, switchgear, and control panels
• Industrial and commercial electrical installations
• Automotive and renewable energy systems

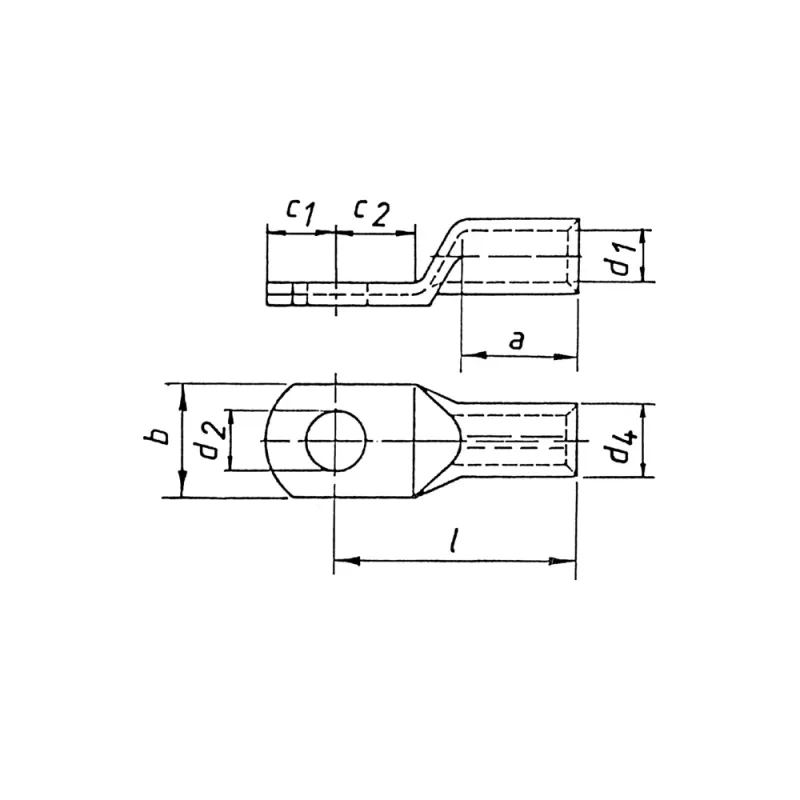

Key specifications

• Conductor cross-section: 150 mm²
• Bolt hole diameter: M12 (12.5 mm)
• Material: Electrolytic copper (E-Cu), tinned
• Overall length: 75 mm
• Barrel length: 35 mm
• Palm width: 35 mm
• Inner barrel diameter: 15.5 mm
• Outer barrel diameter: 20 mm
• Wall thickness: 2.25 mm
• Standard: DIN 46235
• Operating temperature: -50°C to +150°C

Recommendations

Use with appropriate crimping tool and die set for optimal connection. Ensure conductor is stripped to correct length before insertion. For best results, follow manufacturer's crimping instructions.
