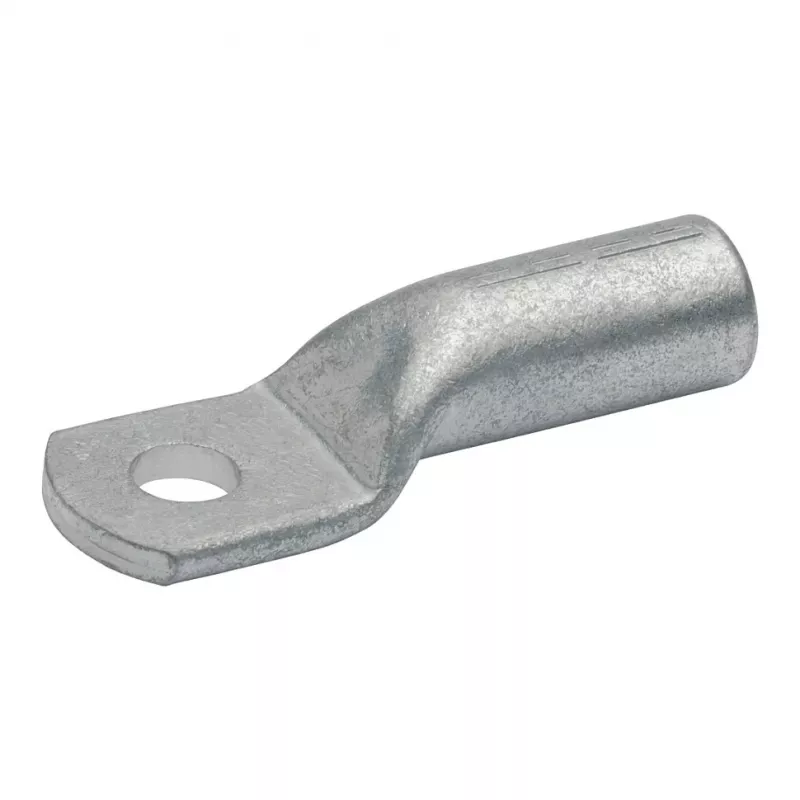

Klauke 104R10 Tubular Cable Lug, 25 mm², M10 Bolt Hole, Tin-Plated Copper, Grey

The Klauke 104R10 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, it ensures excellent conductivity and corrosion resistance. Suitable for fine-stranded, multi-stranded, and solid copper conductors, this lug meets DIN 46235 standards and features an inspection hole and flared cable entry for easy installation and verification.

Advantages

Tin-plated surface provides superior corrosion protection and long-term reliability. The inspection hole allows visual confirmation of proper conductor insertion, while the flared cable entry simplifies assembly. Designed for crimp connection, it ensures a secure and permanent joint.

Suitable for

• Power distribution and control panels
• Industrial machinery and equipment
• Electrical installations requiring secure cable terminations
• Automotive and marine applications

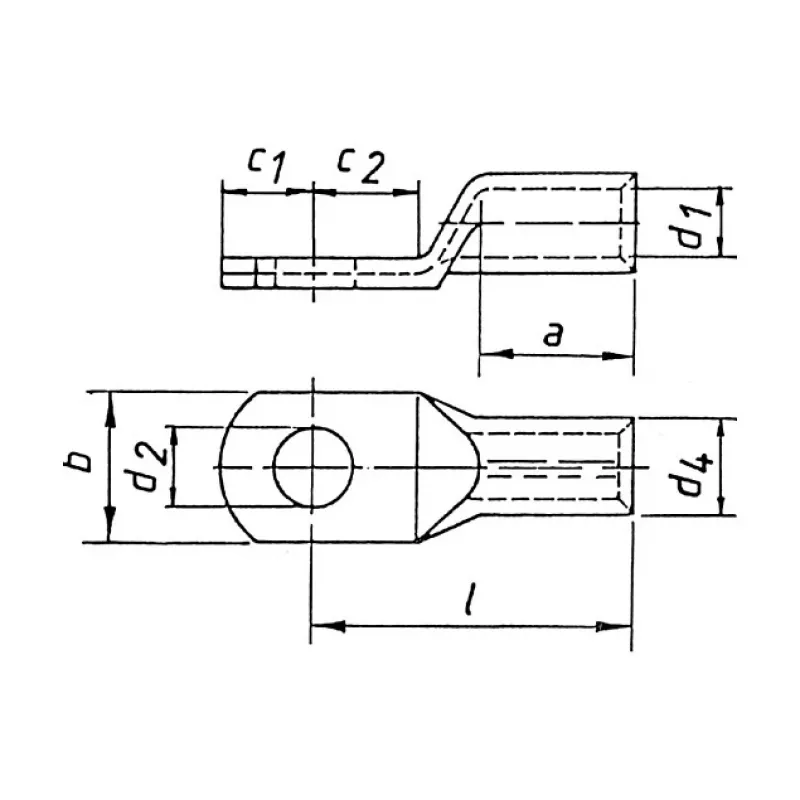

Key specifications

• Product Type: Tubular Cable Lug
• Conductor Cross-Section: 25 mm²
• Bolt Hole Diameter: 10.5 mm (M10)
• Material: Electrolytic Copper (E-Cu), Tin-Plated
• Standard: DIN 46235
• Connection Method: Crimp
• Total Length: 43 mm
• Palm Width: 16 mm
• Barrel Outer Diameter: 10.5 mm
• Barrel Inner Diameter: 7.5 mm
• Operating Temperature: -50°C to +150°C

Recommendations

For optimal performance, use with appropriate crimping tools and ensure the conductor is fully inserted into the barrel before crimping. Verify the crimp connection with a pull test if required.
