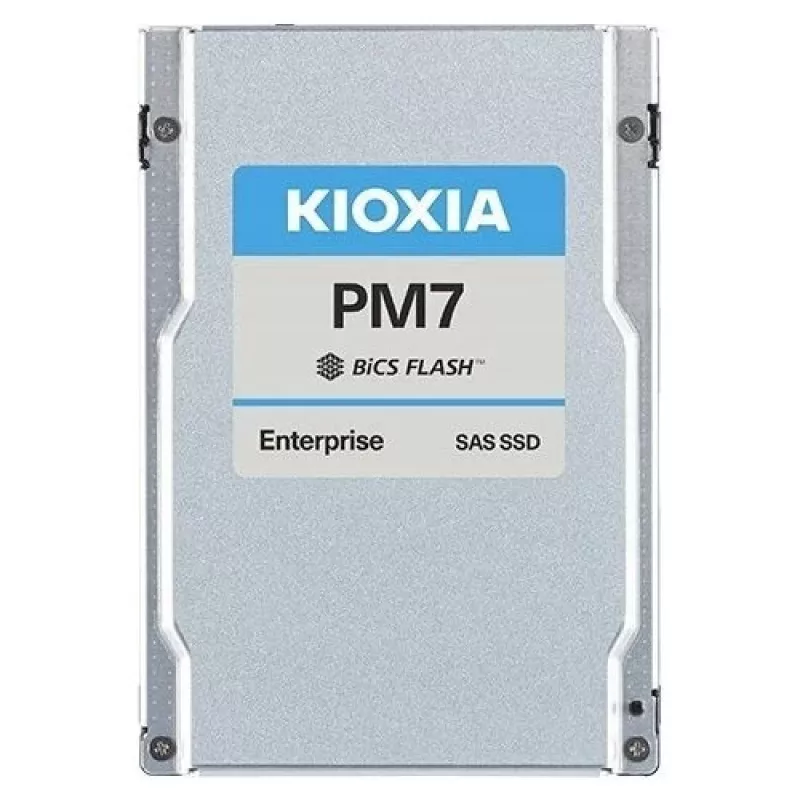

KIOXIA SSD PM-7R 1920GB 2.5-inch SAS 24Gbit/s DWPD 1 3D TLC BiCS Flash Enterprise SSD SED PLP

The KIOXIA PM-7R is a high-performance enterprise SSD designed for mixed-use workloads, offering 1920GB of storage capacity in a 2.5-inch form factor. With a SAS-4 interface (24Gbit/s) and Kioxia BiCS FLASH 3D TLC NAND, it delivers exceptional sequential read speeds up to 4200 MB/s and sequential write speeds up to 3000 MB/s. This drive features Power Loss Protection (PLP) and Self-Encrypting Drive (SED) with Sanitize Instant Erase (SIE) for enhanced data security.

Advantages

Optimized for enterprise environments, the PM-7R provides high endurance with 1 DWPD (Drive Writes Per Day) over 5 years, ensuring reliability for demanding applications. Its low power consumption (13W active, 5.5W idle) reduces operational costs, while end-to-end data protection and field-updatable firmware maintain data integrity and ease of maintenance.

Suitable for

• Enterprise servers and storage arrays
• Data centers requiring high-speed SAS connectivity
• Mixed-use workloads such as database, virtualization, and analytics
• Applications needing hardware-based encryption and power loss protection

Key specifications

• Storage Capacity: 1920 GB (1.92 TB)
• Form Factor: 2.5-inch
• Interface: SAS-4 (24Gbit/s)
• NAND Flash: Kioxia BiCS FLASH 3D TLC
• Endurance: 1 DWPD (5 years)
• Sequential Read: Up to 4200 MB/s
• Sequential Write: Up to 3000 MB/s
• Random Read: Up to 720,000 IOPS
• Random Write: Up to 250,000 IOPS
• MTBF: 2,500,000 hours
• Power Consumption: 13W active, 5.5W idle
• Security: SED (Self-Encrypting Drive) with SIE
• Power Loss Protection: Yes

Recommendations

For optimal performance, pair the KIOXIA PM-7R with a SAS-4 compatible controller and ensure proper cooling in your server chassis. This drive is ideal for upgrading enterprise storage systems requiring high reliability and security features.
