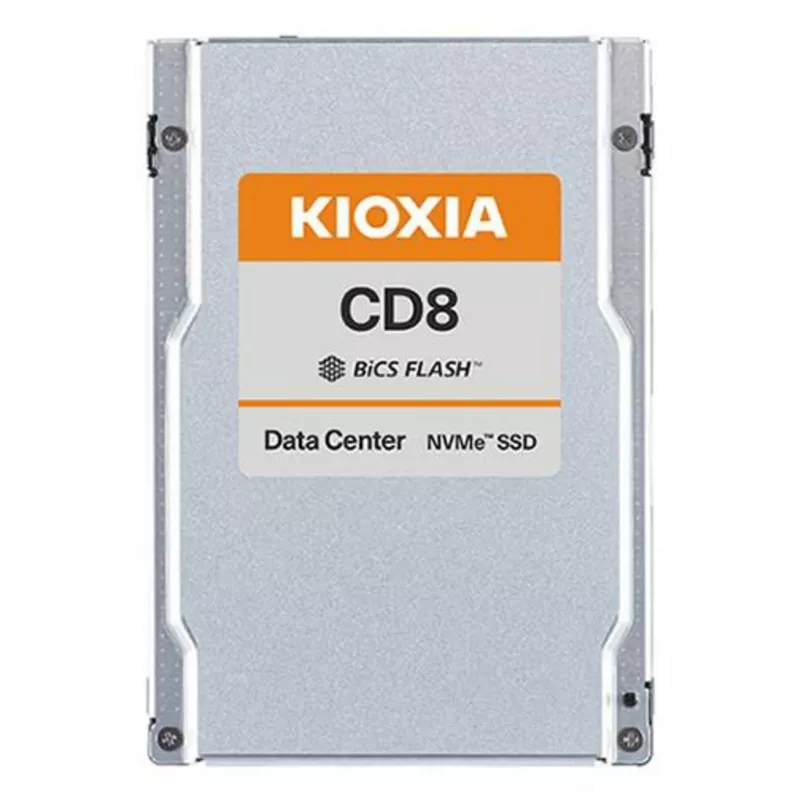

Kioxia CD8 Series KCD8XVUG800G - SSD - 800 GB - Internal - 2.5 inch (6.4 cm) PCIe 4.0 (NVMe) Cache: 256 MB

The Kioxia CD8 Series KCD8XVUG800G is a high-performance enterprise SSD designed for data centers and server environments. With a storage capacity of 800 GB and a PCIe 4.0 x4 NVMe interface, it delivers exceptional read and write speeds while maintaining low latency. The drive features a 2.5-inch U.2 form factor with a 15 mm height, making it compatible with a wide range of enterprise systems. Built with 3D TLC BiCS Flash and a 256 MB cache, it offers a high endurance rating of 3 DWPD (Drive Writes Per Day) and includes power loss protection for data integrity.

Advantages

High-speed PCIe 4.0 NVMe interface for rapid data transfer; enterprise-grade endurance with 3 DWPD; power loss protection ensures data safety; 256 MB cache for improved performance; suitable for demanding data center workloads.

Suitable for

• Data center servers
• Enterprise storage systems
• High-performance computing
• Virtualized environments
• Database and analytics applications

Key specifications

• Storage capacity: 800 GB
• Form factor: 2.5-inch U.2 (SFF-8639)
• Interface: PCIe 4.0 x4, NVMe
• Cache: 256 MB
• Drive height: 15 mm
• Endurance: 3 DWPD
• NAND flash: 3D TLC BiCS
• Power loss protection: Yes
• Mean time between failures (MTBF): 2.5 million hours
• Uncorrectable Bit Error Rate (UBER): 1 sector per 10^17 bits read

Recommendations

This SSD is ideal for IT professionals upgrading enterprise storage with a reliable, high-performance NVMe drive. Ensure your system supports U.2 (SFF-8639) interface and PCIe 4.0 for optimal performance.
