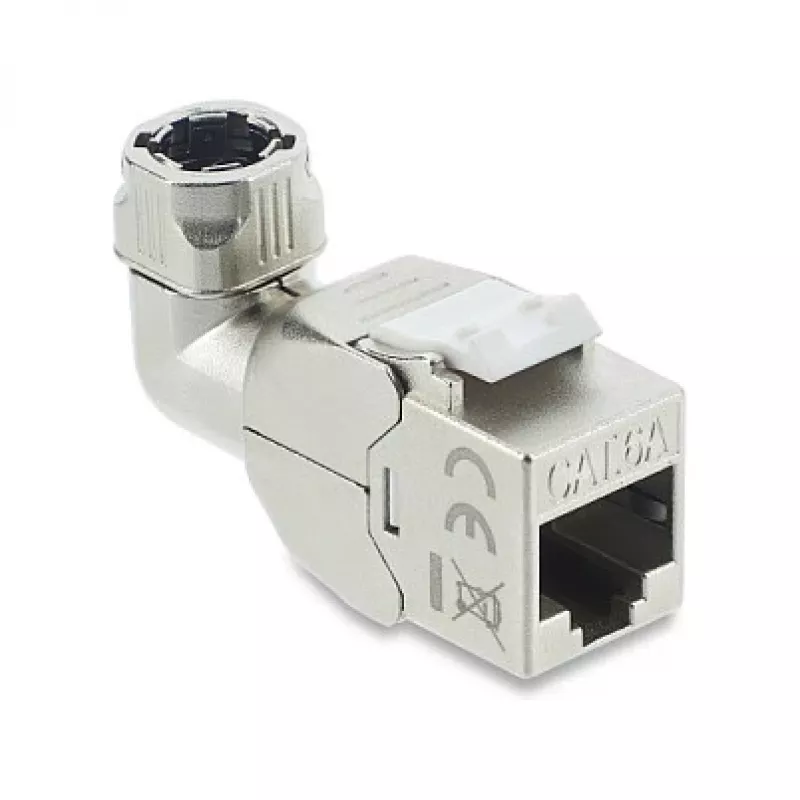

Keystone RJ45 Module DELOCK 90374 Cat.6A 90° Tool-free

DELOCK Keystone RJ45 Module 90374 Cat.6A 90° Tool-free is an angled keystone network connector created for structured cabling installations that require Cat6A performance in limited space. The module snaps into standard keystone panels and wall plates, and its tool-free termination design facilitates quick RJ45 cable connections without specialized crimping tools. Built for high-speed Ethernet links, the angled form factor helps route cables neatly in patch panels, outlets or surface-mounted boxes where rear clearance is restricted.

Advantages

The tool-free termination simplifies on-site wiring by allowing fast insertion and secure contact without additional tools, reducing installation time. Cat6A support ensures compatibility with 10 Gigabit Ethernet over copper when properly installed and paired with appropriate cabling. The 90° orientation minimizes cable bend radius and improves cable management in dense or shallow enclosures. The keystone format provides broad compatibility with standard faceplates and patch panels for flexible deployment.

Suitable for

Key specifications

How to use

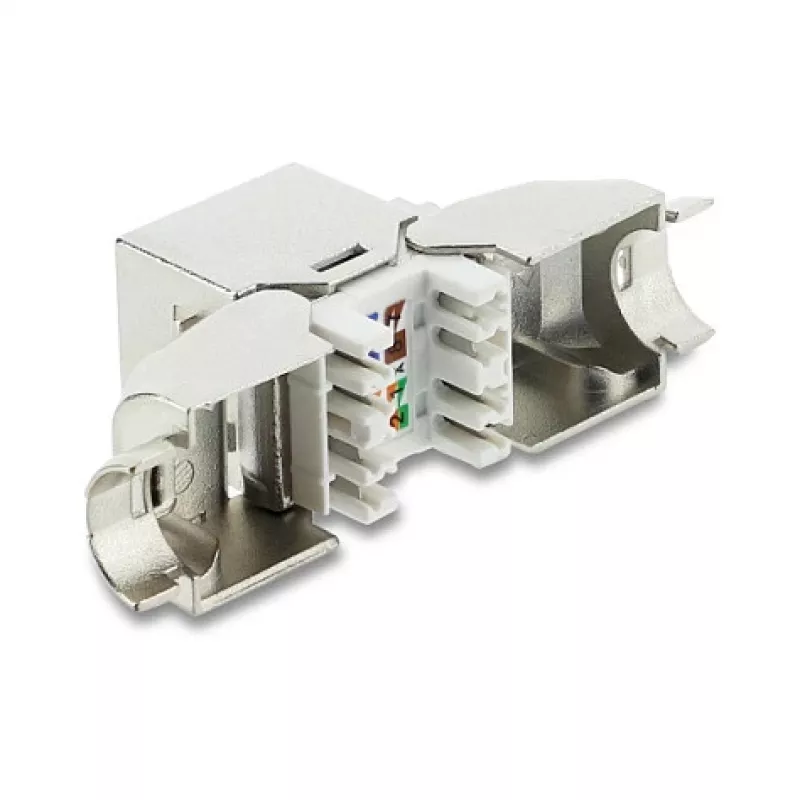

Insert the module into a compatible keystone opening until it snaps firmly into place. Prepare the Ethernet cable by stripping the outer jacket to expose pairs to the length indicated by the module instructions, then insert each conductor into the corresponding IDC slot following the color code marking. Apply the built-in termination mechanism by pressing the cover or closure according to the product’s design until the conductors are secured. After termination, verify the connection visually and test the link with a network tester to confirm performance and correct pinout.

Recommendations

The module performs best when used with Cat6A-rated twisted pair cable and installed in compatible keystone panels or faceplates; avoid exceeding recommended bend radius and ensure proper cable preparation and testing to achieve specified performance.
