Keystone Module HDMI female 250° DeLOCK 86854

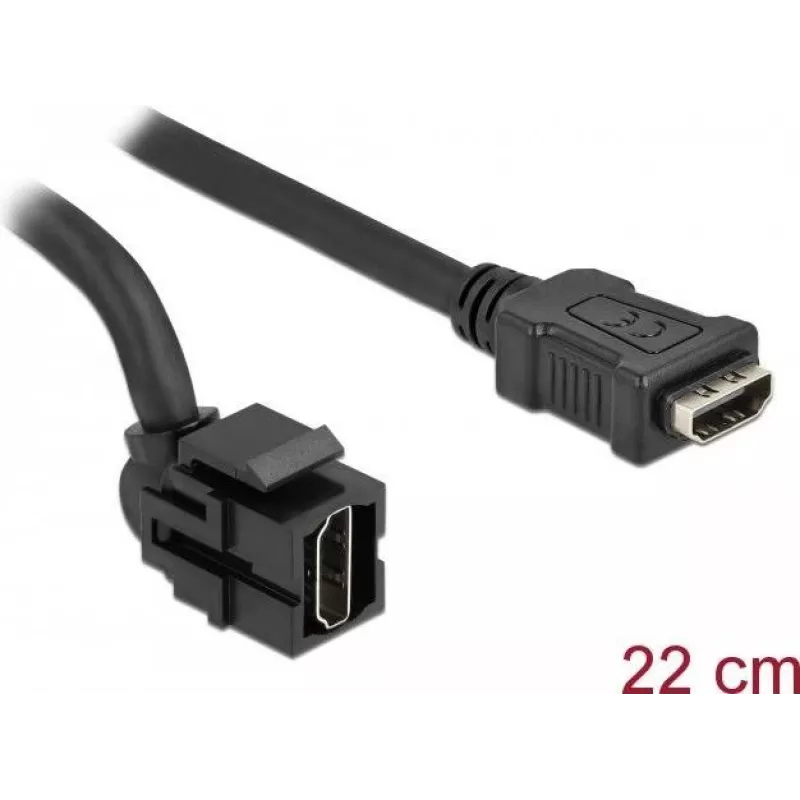

The DeLOCK Keystone Module HDMI female 250° (model 86854) is a compact HDMI extension module with a flat construction and black finish. It provides a female HDMI coupling with a 250° angled short cable designed for installations where space is limited, and it conforms to keystone dimensions for snap-in mounting in keystone patch panels, faceplates or surface-mount boxes. The module enables extension or relocation of an HDMI connection while maintaining standard HDMI interfacing for video and audio transmission.

Advantages

The module‘s flat, angled cable reduces mounting depth and allows installation in tight or hard-to-reach locations. Standardised keystone dimensions ensure compatibility with common face plates, patch panels and surface-mount boxes for quick snap-in mounting. The HDMI female coupling preserves a standard HDMI interface for straightforward connection to HDMI cables and devices. The black finish provides a discreet appearance in most installation environments.

Suitable for

• Extending or relocating HDMI connections in wall plates or patch panels
• Installations in shallow or constrained spaces such as equipment racks or cable ducts
• Home theatre, office displays and meeting room AV installations

Key specifications

• Brand: DELOCK
• Model / MPN: 86854
• EAN: 4043619868544
• Connector 1: HDMI (female)
• Connector 2: HDMI (female, via short angled cable)
• Angle: 250°
• Product colour: Black
• Form factor: Keystone module (standardised snap-in dimensions)

How to use

Press the keystone module into a compatible keystone opening of a patch panel, face plate or surface-mount box until it snaps into place. Connect an HDMI cable to the module's female HDMI socket and route the short angled cable to the device or internal wiring as required. Ensure the module is securely seated in the panel and that cables are not stressed at the connection points.

Recommendations

Use with standard HDMI cables and devices; avoid excessive bending of the short angled cable to maintain reliable signal transmission. Verify that the chosen face plate or panel accepts standard keystone modules before installation.
