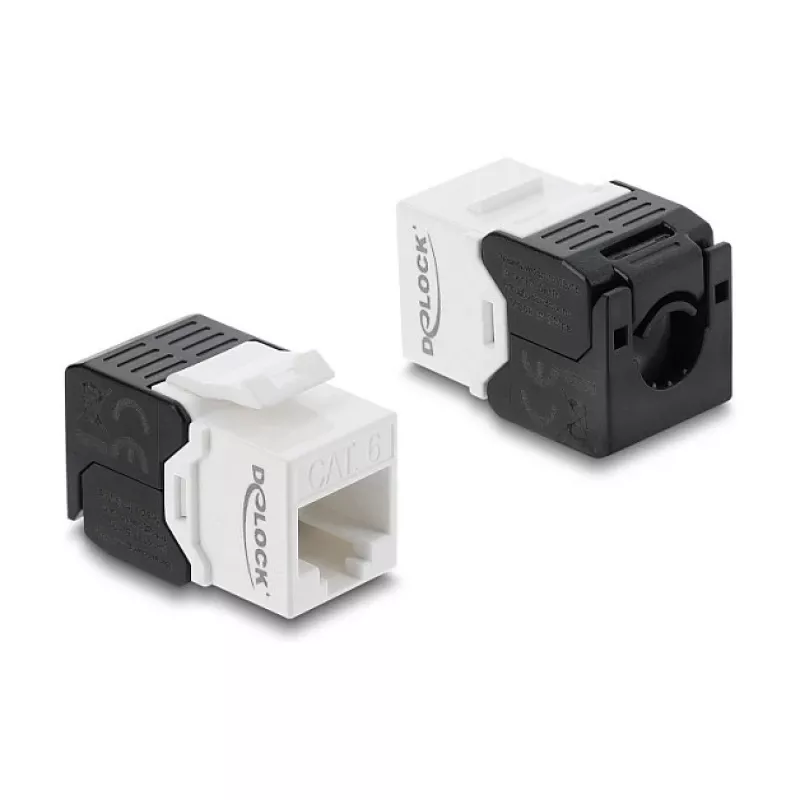

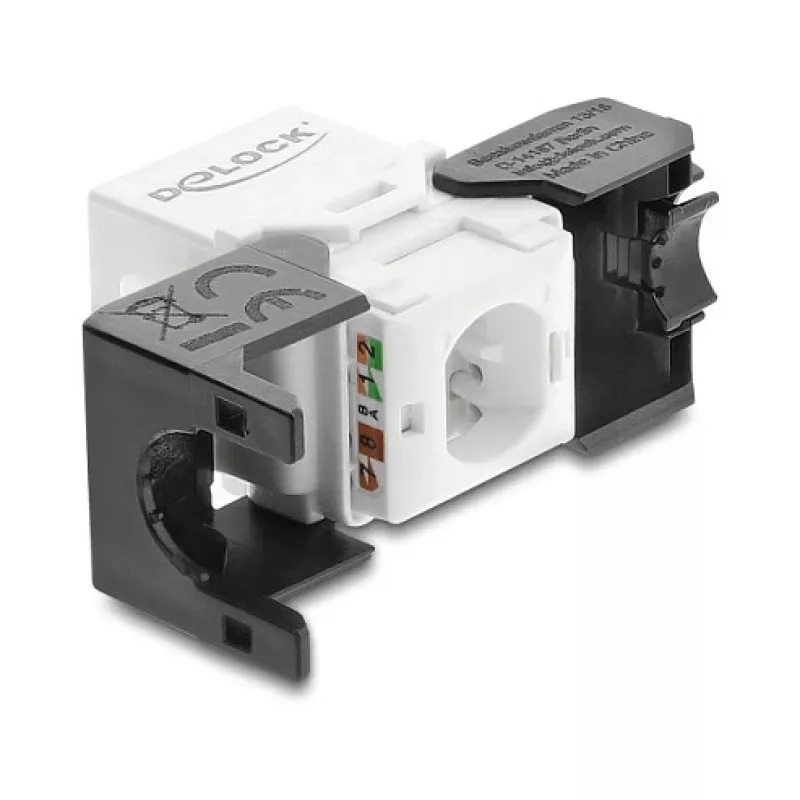

Keystone module DELOCK RJ45 to LSA Cat.6 UTP tool-free, flat construction, 16.2×28.2×19.4 mm, black/white

Keystone module DELOCK RJ45 to LSA Cat.6 UTP is a compact, tool-free flat connector designed for mounting network jacks in keystone patch panels, faceplates or surface-mount boxes. The module accepts an RJ‑45 plug on one side and provides LSA termination on the other side for Cat.6 UTP cabling. With small dimensions (16.2 × 28.2 × 19.4 mm) and availability in black or white, the module is supplied individually in a polybag and is suitable for installations where limited space and a low-profile finish are required.

Advantages

The tool-free design eliminates the need for additional crimping or punching tools, enabling faster and simpler installations. Flat construction and compact size reduce protrusion behind wall plates and allow neat mounting in shallow housings. The combination of RJ‑45 receptacle and LSA termination supports structured Cat.6 UTP cabling while maintaining reliable electrical contact. Being sold individually makes it easy to replace or extend single network ports as needed.

Suitable for

Key specifications

How to use

Insert the module into a compatible keystone opening of a patch panel, wall plate or surface-mount box until it snaps into place. Prepare the Cat.6 UTP cable by stripping the sheath to expose the conductor pairs and arrange the wires according to the appropriate wiring standard. Terminate each conductor into the LSA contacts following the module's wire guide; the tool-free mechanism secures the conductors without separate punching tools. Plug an RJ‑45 connector from the network device or patch cable into the front RJ‑45 receptacle to establish the link.

Recommendations

Use with Cat.6 UTP solid conductors of 22–24 AWG and ensure consistent wiring standard across the link. Avoid excessive cable bending near the termination point to preserve signal integrity. For installations in demanding environments or where shielded cabling is required, choose a module and cabling that match those shielding requirements.
