Keystone Module DeLOCK 86746 Flat Black RCA Connector

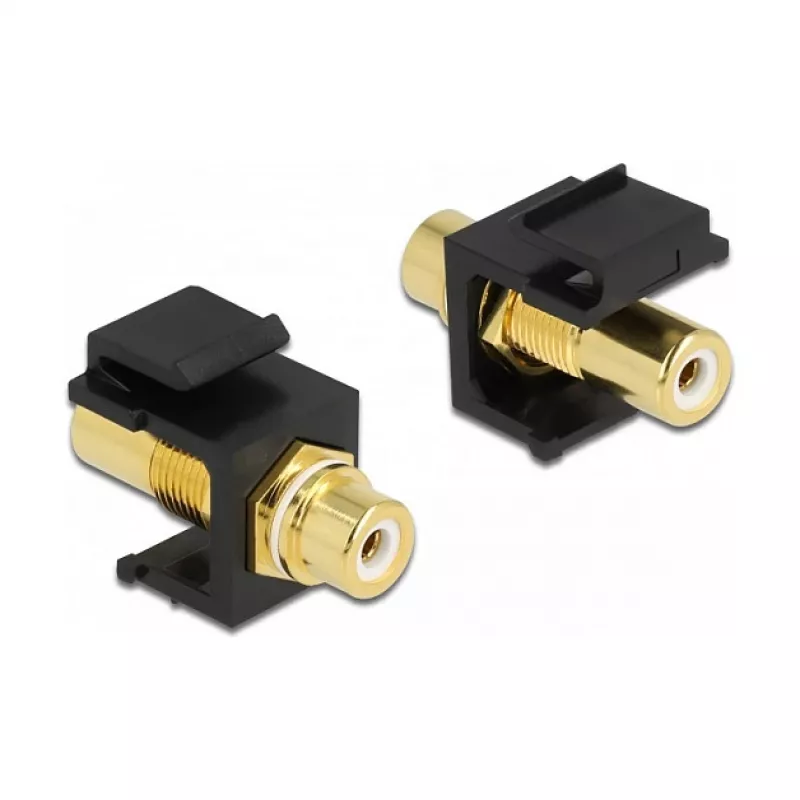

The DeLOCK 86746 keystone module is a compact, flat black RCA connector designed for audio and video applications. With standardized keystone dimensions and a sturdy snap-in housing, it allows easy installation in keystone patch panels, faceplates or surface-mount boxes to extend or replace RCA connections.

Advantages

The module offers a space-saving flat design and standardized dimensions for tool-free snap-in mounting. It provides a reliable female RCA interface for extending stereo or mono audio/video cables and is sold individually to match required quantities. Its black finish ensures discreet integration in AV installations.

Suitable for

• Extending or repairing RCA audio cables
• Connecting composite video or analog audio in AV panels
• Modular keystone patch panels, faceplates and surface-mount boxes

Key specifications

• Connector: RCA (female)
• Product colour: Black
• Dimensions: 16.3 mm (W) x 33.2 mm (D) x 22.3 mm (H)
• Packaging: Single unit
• Brand: DELOCK, MPN: 86746, EAN: 4043619867462

How to use

Push the module into a compatible keystone opening on a patch panel, faceplate or surface-mount box until it snaps into place. Insert the RCA plug from the cable into the module’s RCA jack to establish the audio/video connection. To remove, press the housing latch and pull the module out of the keystone slot.

Recommendations

For reliable signal transmission, use standard RCA cables in good condition and ensure the module is fitted into a compatible keystone opening. Avoid excessive bending of cables at the connector and install in dry, indoor environments unless the faceplate or box provides additional protection.
