Keystone module DeLOCK 86733

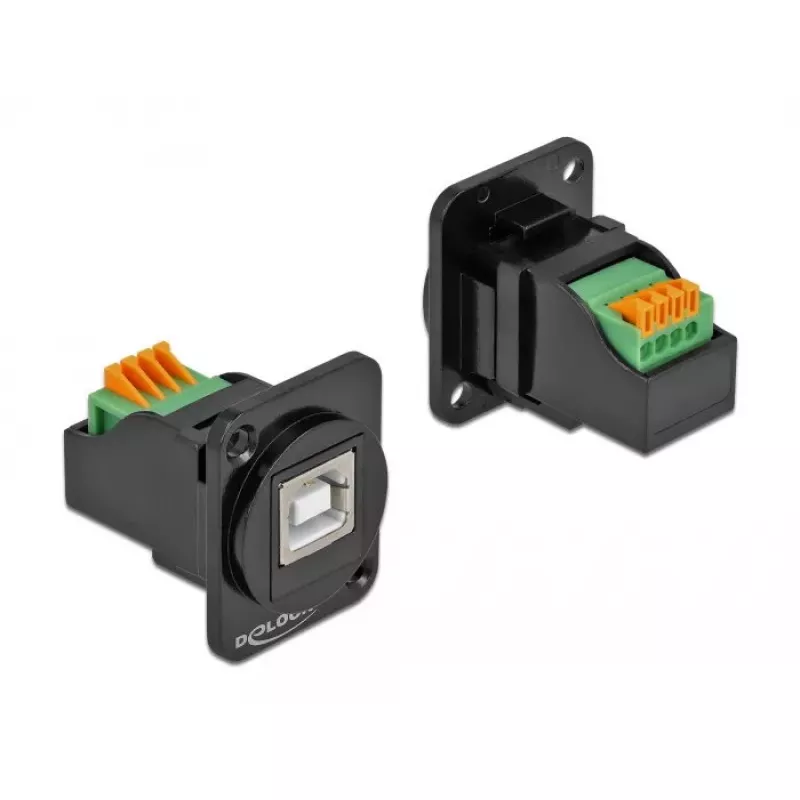

The DeLOCK 86733 keystone module is a compact panel insert with a black finish and a flat construction. It provides a USB B connector in a keystone format and is intended for mounting into panels or enclosures with D-type openings, allowing easy integration of USB devices into existing audio or equipment racks. The module measures 31 mm (width) × 34 mm (depth) × 25.8 mm (height) and is supplied as a single unit.

Advantages

The keystone format allows quick installation into standard D-type openings; the flat profile and black finish give a discreet result in panels or cases. The built-in USB B connector provides a reliable interface for connecting peripheral devices, while the compact dimensions minimise space usage. The module is sold as a single piece and is manufactured to consistent quality standards.

Suitable for

• Integration into audio equipment panels and racks
• Mounting in instrument or device enclosures with D-type openings
• Replacing or extending USB B access on control panels

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 86733
• EAN: 4043619867332
• Connector: USB B (keystone module)
• Dimensions: 31 mm × 34 mm × 25.8 mm (W × D × H)
• Finish: black
• Package quantity: 1
• Made in: China

How to use

Insert the keystone module into a compatible D-type opening in a panel or enclosure until it snaps into place or is secured by the panel retention mechanism. From the rear, connect the internal USB cable or wiring to the module's USB B connector according to the device wiring requirements. Ensure connections are made with the equipment powered off and verify fit and alignment before final assembly.

Recommendations

Use the module in panels or cases with matching keystone/D-type cutouts and check that internal cable lengths and connector orientation allow comfortable routing. Avoid forcing the module into undersized openings and secure internal wiring to prevent strain on the connector.
