Keychron V3 Max Keyboard Universal RF Wireless Bluetooth Black Grey Tenkeyless

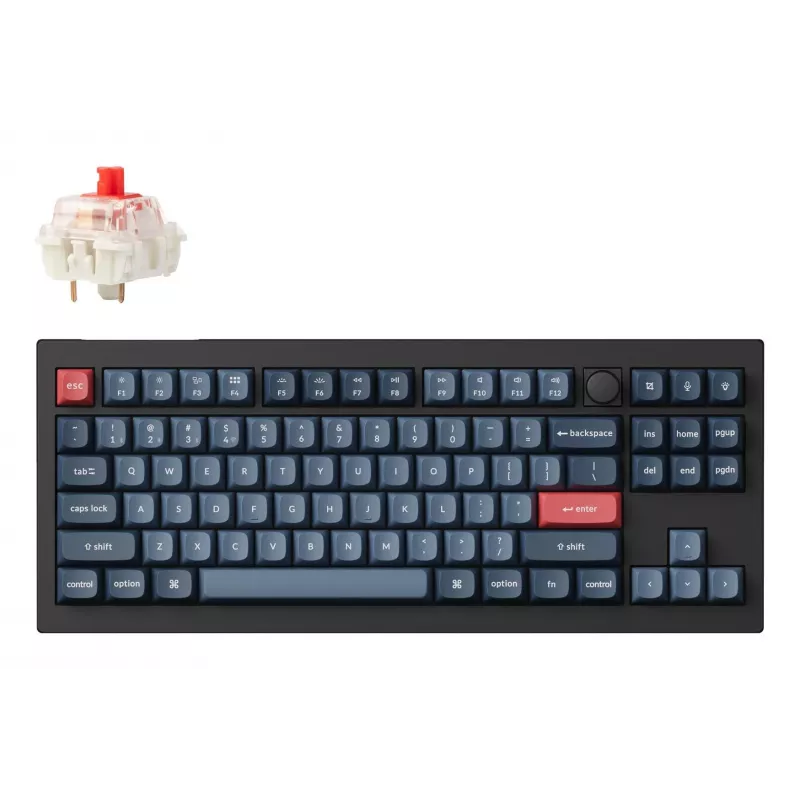

Keychron V3 Max
The V3 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. It has a classic TKL layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V3 Max is designed for a personalized experience and enhanced typing comfort.

• ABS plastic housing
• The keyboard PCB, screw-in stabs, and the PC plate
• Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
• Gateron Jupiter switches

Summary: Keychron V3 Max. Keyboard form factor: Tenkeyless (80 - 87%). Keyboard style: Straight. Connectivity technology: Wired & Wireless, Device interface: RF Wireless + Bluetooth, Keyboard key switch: Mechanical. Backlight type: RGB LED. Recommended usage: Universal. Product colour: Black, Grey | Vendor Homepage: https://www.keychron.com/products/keychron-v3-max-qmk-via-wireless-custom-mechanical-keyboard?_pos=2&_psq=V3M-D1&_ss=e&_v=1.0&variant=40868403150937 | Actuation force: 45 | Bluetooth version: 5.1 | Built-in memory: Yes | Built-in memory capacity: 256 | Connectivity technology: Wired & Wireless | Device interface: RF Wireless + Bluetooth | Frequency band: 2.4 | Key travel distance: 4 | Keyboard form factor: Tenkeyless (80 - 87%) | Keyboard key profile: High-profile | Keyboard key switch: Mechanical | Keyboard keys operating life: 80 | Keycaps: Double shot | Keycaps material: Polybutylene terephthalate (PBT) | Numeric keypad: No | On/off switch: Yes | Pointing device: No | Polling rate: 1000/90 | Programmable hot keys: Yes | Recommended usage: Universal | Rollover: N-key rollover | Windows keys: Yes | Adjustable backlight: Yes | Adjustable keyboard height: Yes | Backlight: Yes | Backlight colour: Red/Green/Blue | Backlight type: RGB LED | Keyboard style: Straight | Material: Plastic | Product colour: Black/Grey | Detachable cable: Yes | Hot-swap: Yes | USB connector type: USB Type-C | Battery capacity: 4000 | Battery life (max): 225 | Battery technology: Lithium Polymer (LiPo) | Keyboard battery type: Built-in battery | Power source type: Battery,USB | Rechargeable: Yes | USB Type-C charging port: Yes | Mouse included: No | Operating temperature (T-T): -10 - 50 | Keyboard dimensions (WxDxH): 367.8 x 149 x 32.5 | Keyboard weight: 895 | AC adapter included: No | Number of products included: 1 | Receiver included: Yes | Units per Pallet: 0 | Units per Shipping Box: 1 | Unit Calculated Volume: 0.0056 | Unit Calculated Weight: 1.54

How to use

Connect the keyboard via RF 2.4 GHz wireless using the included receiver, or pair it with a device using Bluetooth 5.1. Install the appropriate keycaps for your operating system if needed. Use the adjustable feet to set the preferred typing angle. For advanced customization, access QMK-compatible firmware to remap keys and program layers.

Recommendations

For quieter operation and longer component life, use recommended switch lubrication and periodically clean keycaps and stabilizers. When using RF wireless, keep the receiver unobstructed for optimal signal; for Bluetooth, ensure device Bluetooth drivers are up to date.
