Kathrein ESD 85 Single Antenna Outlet with DC Pass-through

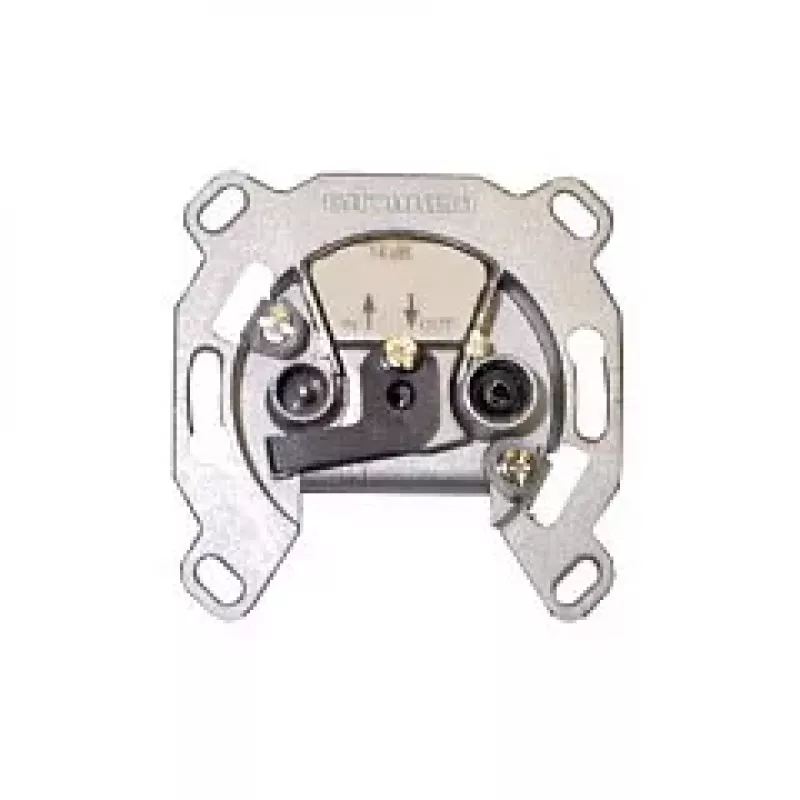

The Kathrein ESD 85 is a high-quality single antenna outlet designed for use in star networks and single-cable systems. It features DC pass-through on the SAT output, making it ideal for powering an LNB or other active components directly through the coaxial cable. The outlet provides three separate outputs for TV, Radio, and SAT signals, ensuring optimal signal distribution with minimal loss.

Advantages

• DC pass-through on SAT output (max. 0.5 A, 24 V) for powering active components
• Low connection loss of 1.5 dB across all frequency ranges
• Class A shielding effectiveness (>85 dB) for excellent interference protection
• Robust die-cast metal housing for durability and long service life
• Flush-mounted design for a clean, professional installation

Suitable for

• Single-cable satellite systems
• Star network topologies
• End outlets in series installations
• Residential and commercial TV/radio/SAT distribution

Key specifications

• Frequency Range TV: 5–862 MHz
• Frequency Range Radio: 87.5–108 MHz
• Frequency Range SAT: 950–2200 MHz
• Connection Loss: 1.5 dB (all bands)
• Impedance: 75 Ohm
• Return Loss: >10 dB
• Outputs: 3 (TV, Radio, SAT)
• Connector TV: IEC Male (plug)
• Connector Radio: IEC Female (socket)
• Connector SAT: F-Connector Female
• DC Pass-through Current: Max. 0.5 A
• DC Pass-through Voltage: Max. 24 V
• Installation: Flush-mounted
• Housing Material: Die-cast metal

Recommendations

For best performance, use with high-quality coaxial cables and ensure proper grounding. The DC pass-through feature is ideal for powering a single LNB or similar device; do not exceed the maximum current rating.
