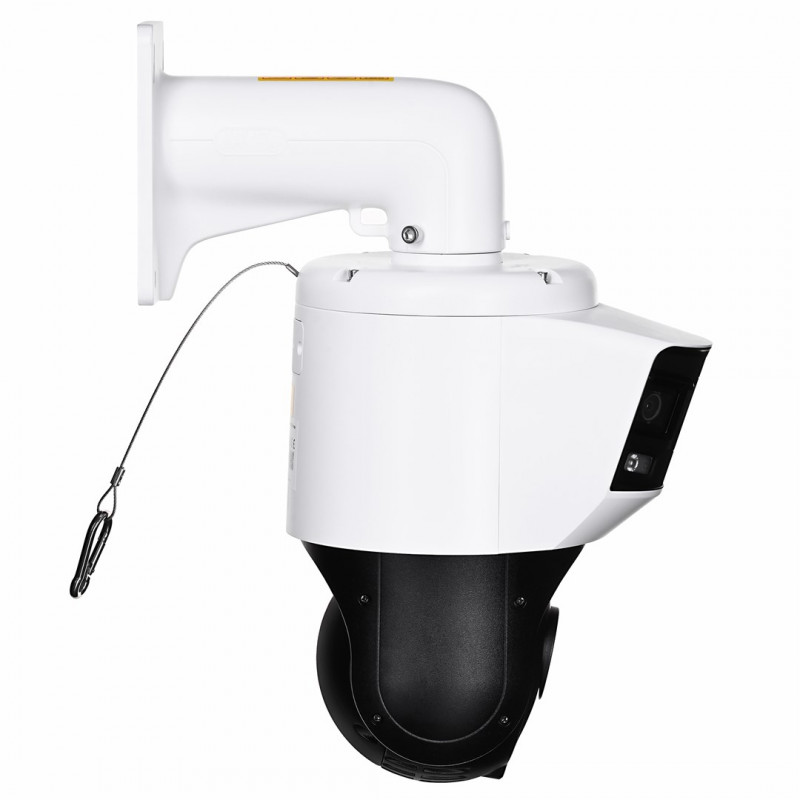

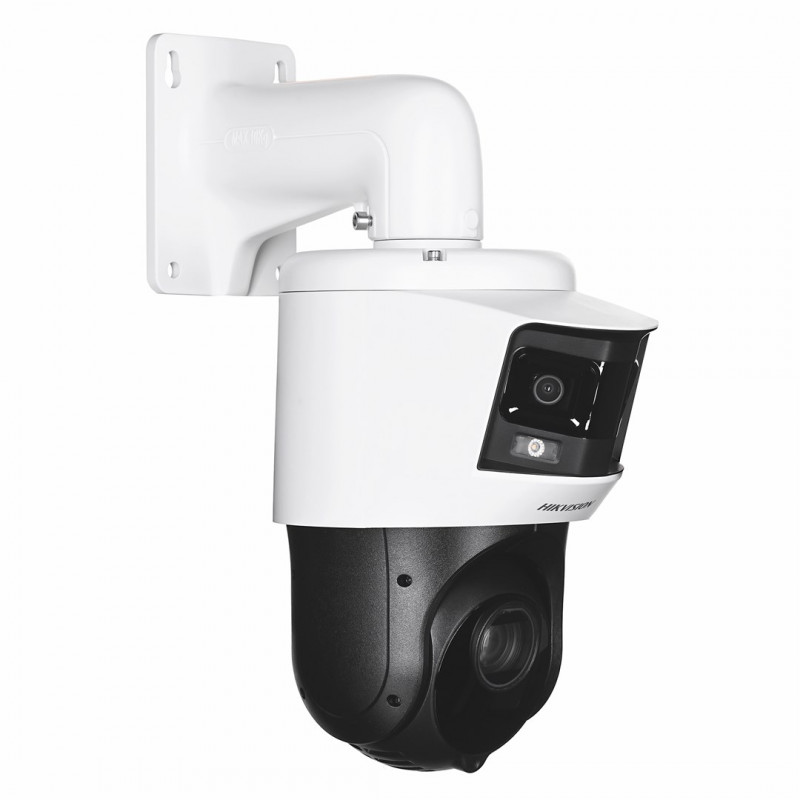

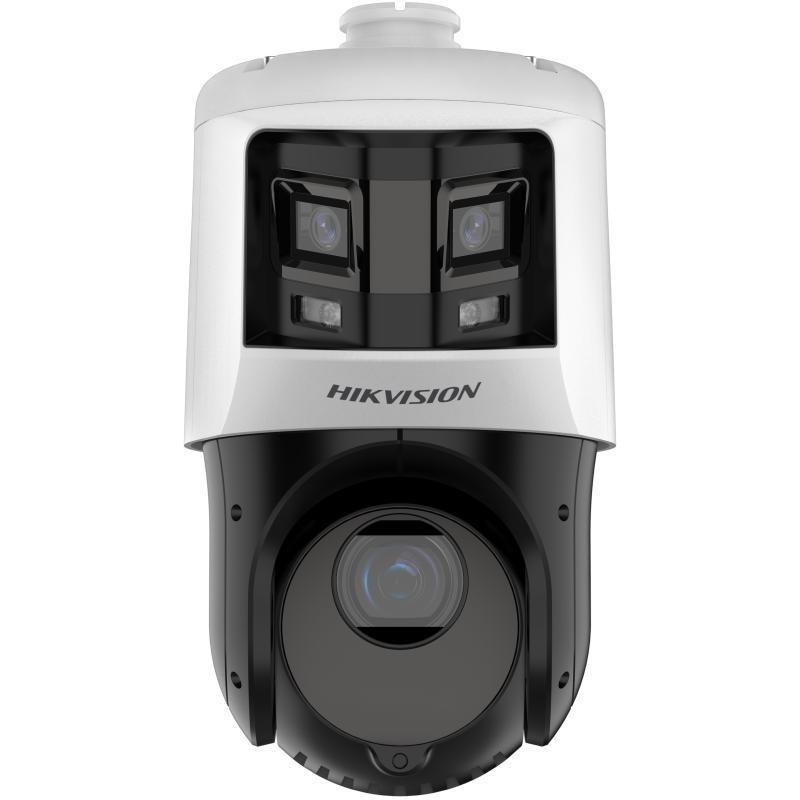

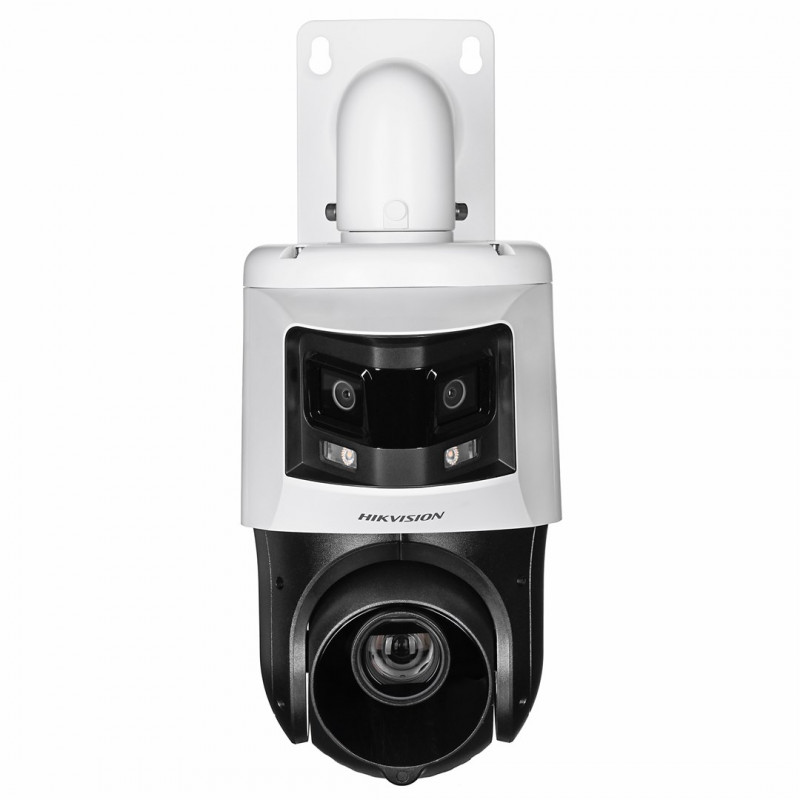

Hikvision DS-2SE4C225MWG-E/26(F0) IP Security Camera

The Hikvision DS-2SE4C225MWG-E/26(F0) is an advanced IP security camera that combines panoramic and PTZ capabilities. It captures a wide area with 6 MP panoramic imaging and detailed views with 2 MP PTZ imaging, ensuring comprehensive surveillance. With DarkFighter and ColorVu technologies, it delivers excellent low-light performance.

Key features

• Simultaneous panoramic and PTZ monitoring
• 6 MP panoramic resolution and 2 MP PTZ resolution
• DarkFighter and ColorVu for superior low-light imaging
• 25x optical zoom and 16x digital zoom
• IR range up to 100 m and white light range up to 30 m
• Deep learning-based human and vehicle classification
• Supports 12 V DC and PoE+

Specifications

• Brand: HIKVISION
• Model: DS-2SE4C225MWG-E/26(F0)
• Product type: IP Security Camera
• Power source: DC & PoE
• Connectivity: Wired
• Image sensor: [Panoramic] 1/2.5" Progressive Scan CMOS; [PTZ] 1/2.8" Progressive Scan CMOS
• Max resolution: [Panoramic] 3632 × 1632; [PTZ] 1920 × 1080
• Min illumination: [Panoramic] 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ] Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter speed: 1 s to 1/30,000 s
• Day/Night: ICR
• Zoom: [PTZ] 25× optical, 16× digital
• Lens: [Panoramic] 2.8 mm; [PTZ] 4.8 to 120 mm, 25× optical zoom
• Field of view: [Panoramic] Horizontal 180°±10°, Vertical 80°±5°; [PTZ] Horizontal 54.8°–2.8°, Vertical 31.4°–1.5°, Diagonal 62.2°–3.2°
• Aperture: [Panoramic] F1.0; [PTZ] F1.6
• Illuminator: [PTZ] IR up to 100 m; [Panoramic] White light up to 30 m
• Pan range: 360°
• Tilt range: -15° to 90° (auto flip)
• Pan speed: 0.1° to 80°/s, preset 80°/s
• Tilt speed: 0.1° to 80°/s, preset 80°/s
• Presets: 300
• Patrol routes: 8 routes, up to 32 presets each
• Patterns: 4
• Video compression: H.265 / H.264 / MJPEG
• Bitrate: 32 kbps – 16384 kbps
• Audio compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket
• API: ISAPI, SDK, ISUP, ONVIF
• Users: 32
• Network storage: NAS (NFS, SMB/CIFS), ANR
• Clients: VMS-4200, Hik-Connect
• Web browsers: IE11+, Chrome57+, Firefox52+, Safari12+, Edge79+
• WDR: 120 dB
• SNR: ≥ 52 dB
• Stabilization: EIS
