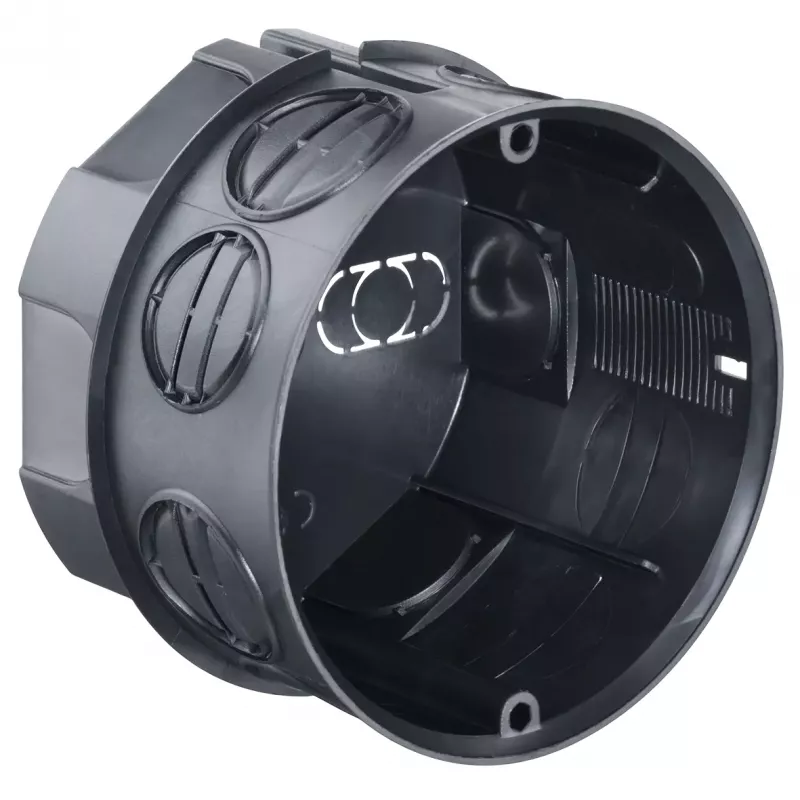

KAISER ELEKTRO Flush-Mounted Junction Box 1572-02

The KAISER ELEKTRO 1572-02 is a high-quality flush-mounted junction box designed for professional electrical installations. Made from halogen-free, flame-retardant polypropylene, it ensures safety and durability in masonry and concrete walls. With 8 universal conduit entries (M20/M25) and a 60 mm device diameter, this box offers flexibility for switches, sockets, and junctions. Its airtight design and IP20 protection make it suitable for indoor use in temperatures from -5°C to +60°C.

Advantages

Halogen-free and flame-retardant material for enhanced safety. Airtight construction prevents drafts and moisture ingress. Universal conduit entries simplify cable routing. Easy break-out knockouts for quick installation. Complies with DIN VDE 0606-1 for reliable performance.

Suitable for

• Flush-mounted switches and sockets
• Junction boxes in masonry and concrete walls
• Indoor electrical installations requiring airtightness

Key specifications

• Installation type: Flush-mounted (UP)
• Box type: Device and junction box
• Material: Polypropylene (PP)
• Halogen-free: Yes
• Flame retardant: Yes
• Airtight: Yes
• Nominal device diameter: 60 mm
• Installation depth: 61 mm
• Outer diameter: 70 mm
• Number of conduit entries: 8
• Conduit entry compatibility: M20 / M25 (universal)
• Number of screw domes: 2
• Colour: Grey
• Wall type compatibility: Masonry, Concrete
• IP protection class: IP20
• Temperature range: -5°C to +60°C
• Standard compliance: DIN VDE 0606-1
• Cable entry type: Break-out knockouts
• Mounting type: For plaster/mortar installation
• Suitable for: Switches, Sockets, Junctions

Recommendations

For best results, use with compatible flush-mounted devices and ensure proper sealing for airtight applications. Always follow local electrical codes.
