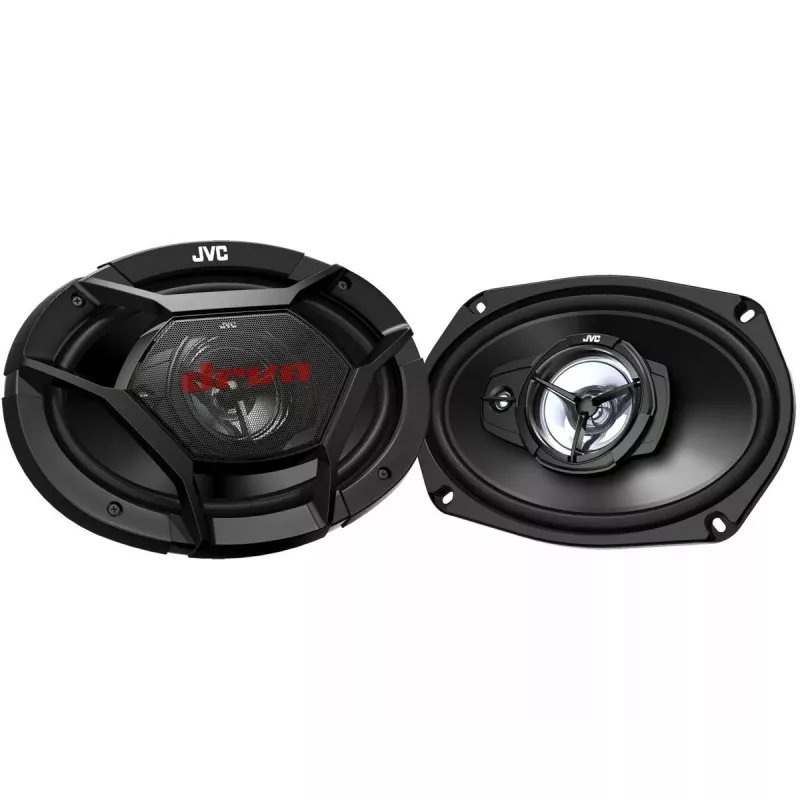

JVC CS-DR6930 car speaker Oval 3-way 500 W

The JVC CS-DR6930 is a 15 x 23 cm (6" x 9") 3-way coaxial car speaker designed to deliver balanced sound in standard car installations. It has a peak power of 500 W and a rated (RMS) power of 70 W, with a mounting depth of 7.9 cm and a lightweight construction of 1.07 kg. The speaker integrates a 1.5 cm tweeter for clear high frequencies and a ferrite woofer magnet to support robust bass performance, achieving a maximum sound pressure level of 88 dB.

Advantages

The JVC CS-DR6930 combines a 3-way design with a dedicated tweeter and woofer to produce clear highs and reinforced low frequencies. Its compact mounting depth and moderate weight make it suitable for many factory and aftermarket car speaker locations. With a ferrite magnet and specified power ratings, the speaker offers reliable passive performance when paired with appropriate car audio systems.

Suitable for (tasks / use cases)

• Replacing or upgrading factory 6" x 9" car speakers
• Installation in doors or rear decks with up to 7.9 cm mounting depth
• Use with aftermarket head units or amplifiers matched to the speaker's RMS power

Key specifications

• Model: JVC CS-DR6930
• Size: 15 x 23 cm (6" x 9")
• Configuration: 3-way coaxial
• Peak power: 500 W
• Rated (RMS) power: 70 W
• Tweeter size: 1.5 cm
• Magnet type: Ferrite (woofer)

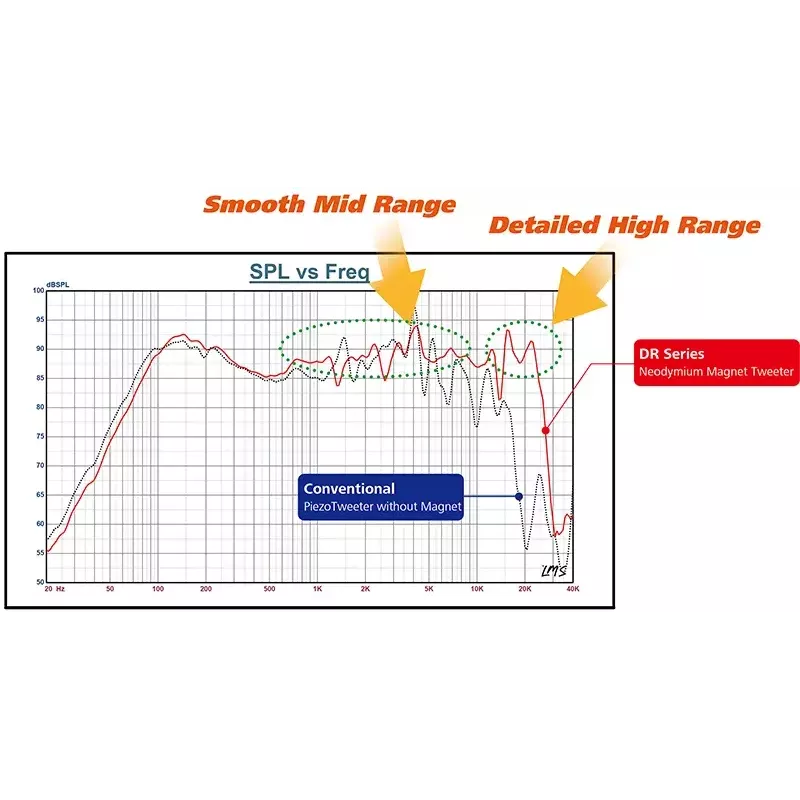

• Maximum SPL: 88 dB

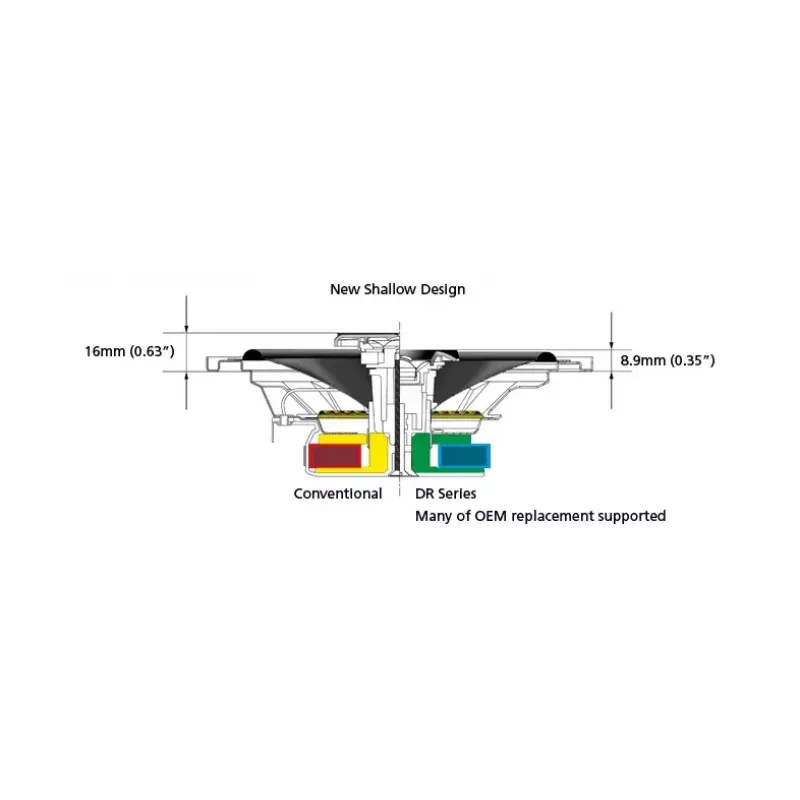

• Mounting depth: 7.9 cm
• Weight: 1.07 kg
• MPN: CSDR6930
• EAN: 4975769435386

How to use

Mount the JVC CS-DR6930 in an appropriate 6" x 9" opening in the door or rear deck, ensuring the mounting depth of 7.9 cm is available. Connect the speaker to the vehicle audio wiring, observing correct polarity for left and right channels. For best results, match the speaker to a head unit or amplifier that can supply up to the speaker's RMS rating (70 W) without distortion. Secure the speaker with the supplied or compatible screws and verify there is no contact between the speaker cone and mounting surface.

Recommendations

For stable long-term performance, avoid driving the speaker continuously at or near its peak power. If you plan to use the speakers at high volume levels, consider pairing them with an appropriate external amplifier and applying a correct crossover or equalization to protect the tweeter and improve overall sound balance.
