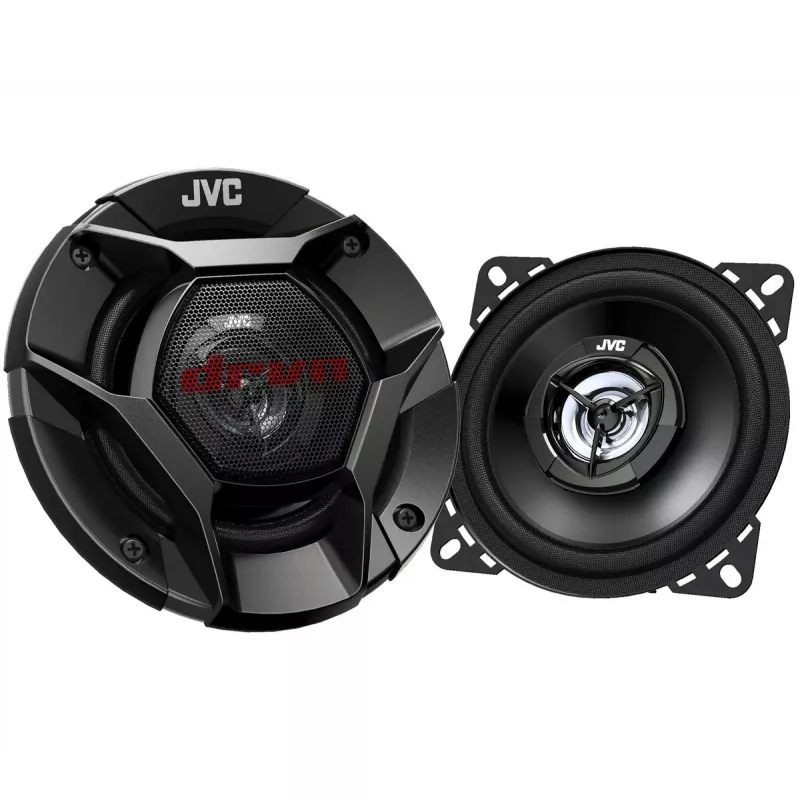

JVC CS-DR420 car speaker Round 2-way 220 W

The JVC CS-DR420 is a 2-way round car speaker designed to deliver clear high frequencies and smooth mids while fitting a wide range of vehicles thanks to its compact height. It has a 10 cm carbon mica woofer with a ferrite magnet and a balanced neodymium tweeter for detailed treble, a peak power of 220 W and a rated power of 35 W. The speaker's shallow mounting depth and lightweight construction make installation straightforward and suitable for many aftermarket and replacement applications.

Advantages

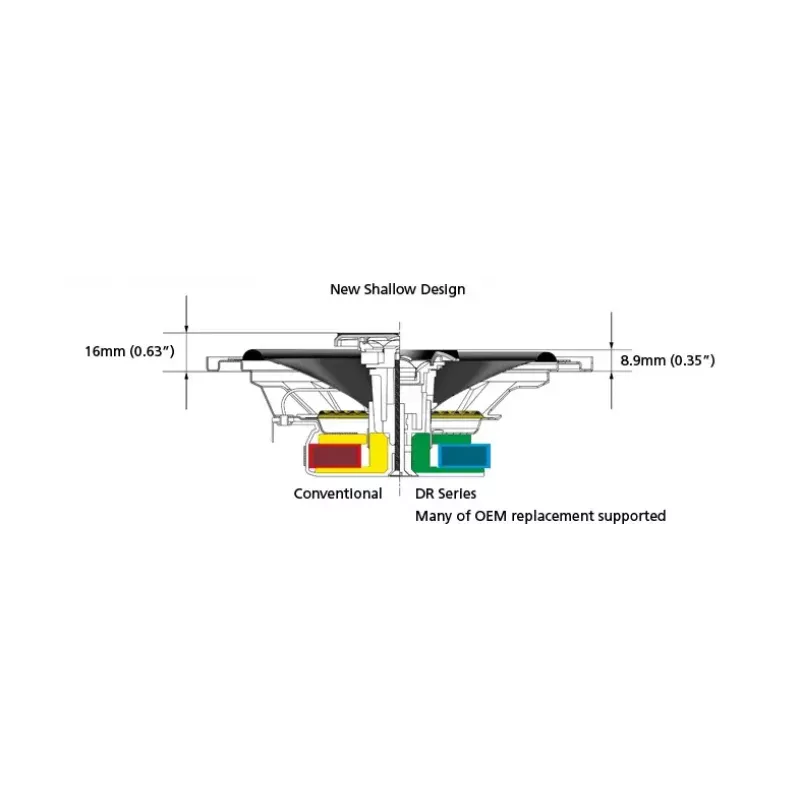

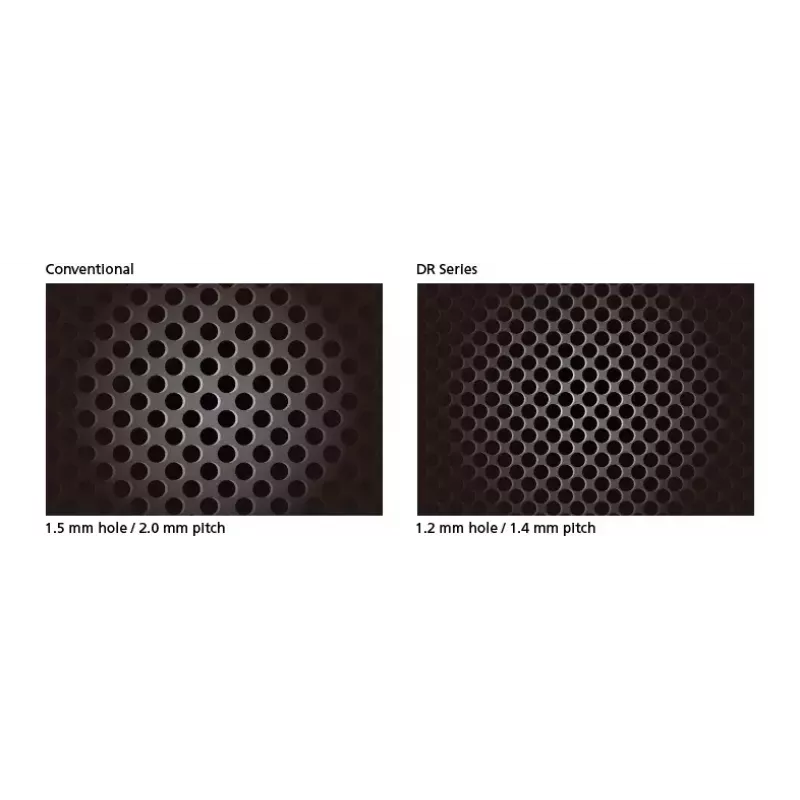

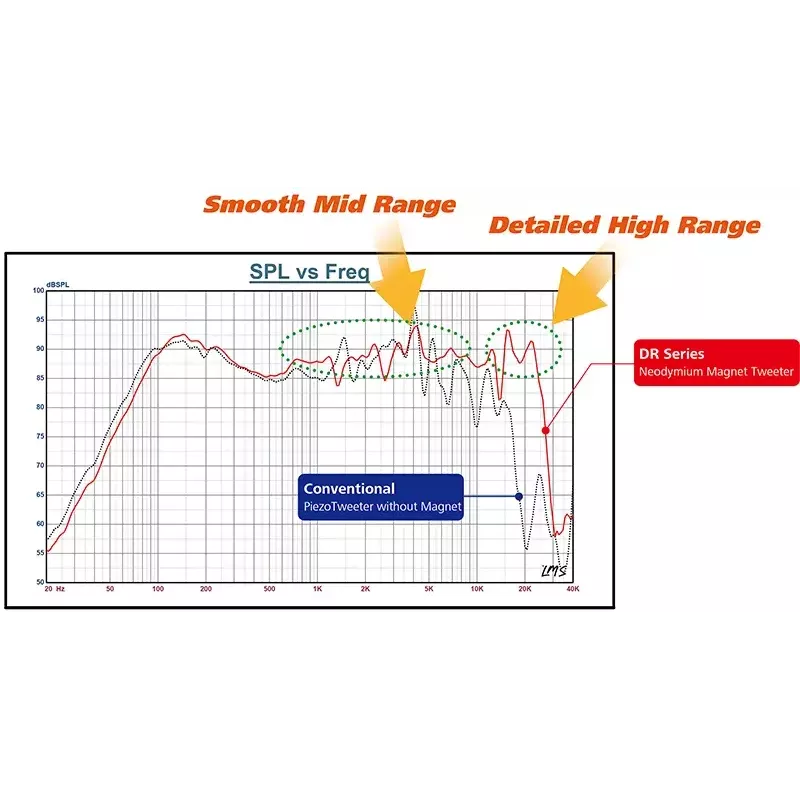

The balanced neodymium tweeter provides detailed high-range and smooth mid-range reproduction while its reduced height increases compatibility with more vehicle mounting locations. A carbon mica cone offers robust, lightweight performance for clear and undistorted sound. The hybrid surround (rubber-coated cloth) improves excursion control and responsiveness to audio signals. The grill features a wider opening ratio for improved acoustic transparency and durability, and a small-design tweeter cover minimizes interference with the woofer cone to preserve sound quality.

Suitable for

• Front or rear door/parcel shelf replacement in compact and mid-size vehicles
• Aftermarket upgrades where limited mounting depth is required
• Systems needing balanced two-way performance with clear highs

Key specifications

• Type: Round 2-way car speaker
• Speaker size: 10 cm (approx. 4") woofer
• Peak power: 220 W
• Rated (RMS) power: 35 W
• Magnet: Ferrite (woofer) and balanced neodymium (tweeter)
• Sound pressure level (SPL): 88 dB (max)
• Mounting depth: 4.55 cm
• Weight: 400 g

How to use

Install the JVC CS-DR420 in the vehicle’s compatible speaker openings following the vehicle manufacturer's removal and installation procedures. Ensure secure wiring to the car audio amplifier or head unit using correct polarity and connectors. Verify the mounting depth (4.55 cm) and clearances before final installation to avoid contact with door mechanisms or interior panels. After mounting, test playback at moderate volume and adjust the head unit's crossover, gain, or EQ settings as needed for balanced two-way sound.

Recommendations

For best results, pair the CS-DR420 with a head unit or amplifier that matches its rated power (35 W RMS) and use appropriate crossovers to protect the tweeter. Ensure the speaker is mounted in a location with adequate clearance and secure fastening to prevent vibration-related noise.
