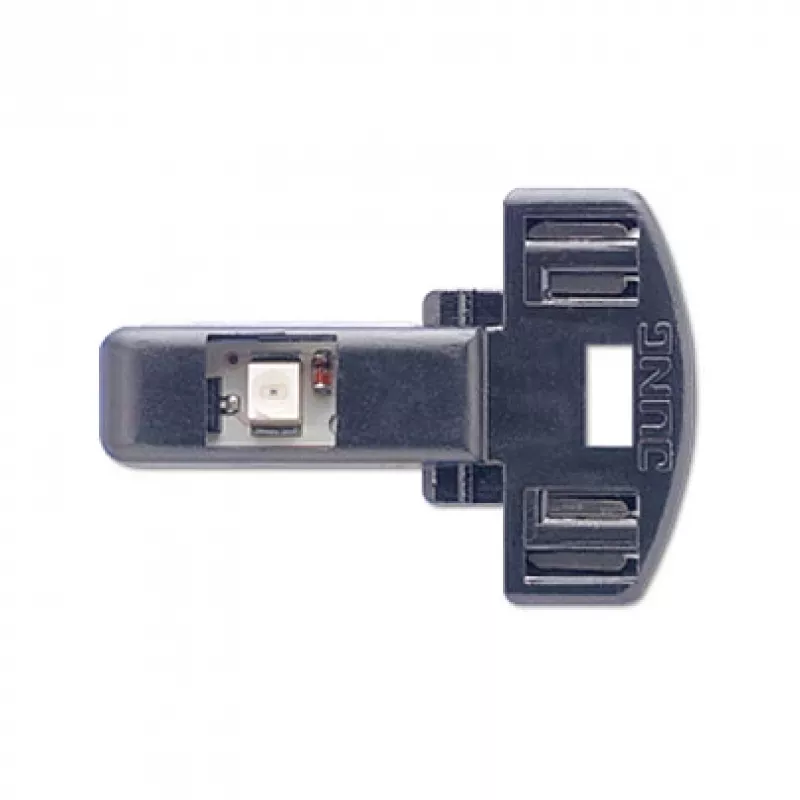

Jung 90-LED RT LED module, black, compatible with selected JUNG frames and switches

Jung 90-LED RT is a black LED module designed to integrate with selected JUNG frames and switch units. Supplied as a single module per pack, it provides a compact LED indicator or illumination source that fits into specified JUNG series devices for retrofit projects or new installations. The module is intended for installation in compatible frames such as examples from the 500 and 800 series and is suitable where a discreet, low-profile LED element is required.

Advantages

The compact form factor and black finish allow the LED module to blend with matching JUNG frames and switches while providing reliable illumination or status indication. The unit is supplied ready for installation, simplifying replacement or upgrade work. Its design follows the mechanical interfaces of compatible JUNG products, ensuring consistent fit and alignment without the need for additional adapters.

Suitable for

Key specifications

How to use

Before installation, verify that the receiving frame or switch unit is listed as compatible with this module. Isolate electrical power at the relevant circuit breaker or disconnect to ensure safe handling. Remove the existing insert or open the frame according to the JUNG device’s installation instructions, then align the module with the mechanical guides and press it into place until it clicks or seats securely. Reconnect power and test the LED function. For retrofit work, follow the original device’s guidelines for removal and disposal of the replaced module.

Recommendations

Install and service the module only when the supply is de-energised and in accordance with applicable electrical regulations. Use the module only in compatible JUNG frames and devices; verify mechanical and electrical compatibility before fitting. For optimal performance, operate within the environmental and electrical limits specified by the equipment into which the module is installed.
