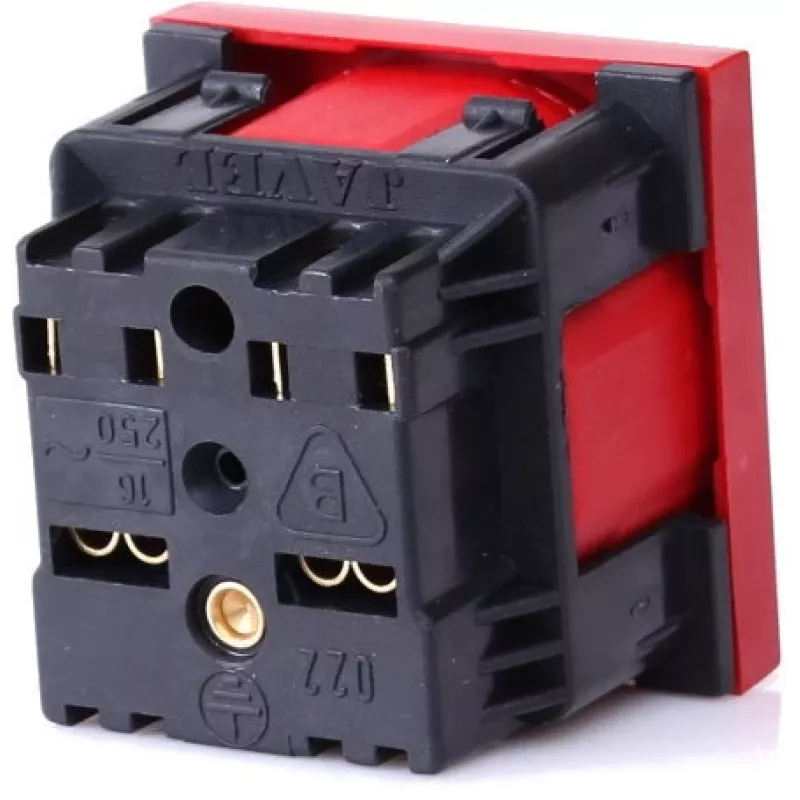

JAVEL 1-Module Single Socket Outlet with Plug Lock, Red, 16A 250V AC, Flush-Mounted, Type E/F

The JAVEL 01-G22-2 is a high-quality single socket outlet designed for flush-mounted installation. Featuring a Type E/F hybrid earthing system and a built-in plug lock mechanism, it ensures secure and reliable connections for demanding environments. The red colour makes it easy to identify in industrial or commercial settings.

Advantages

Integrated plug lock prevents accidental disconnection, enhancing safety and reliability. Screw terminals provide secure wiring, while the thermoplastic PC/ABS material offers durability and impact resistance. The compact 1-module size fits standard Simon Basic frames.

Suitable for

• Industrial power distribution
• Commercial office spaces
• Workshops and laboratories
• Any application requiring secure plug retention

Key specifications

• Socket Type: Single, Type E/F (Schuko compatible)
• Rated Current: 16 A
• Rated Voltage: 250 V AC
• Frequency: 50/60 Hz
• Colour: Red
• Mounting Type: Flush-mounted
• Connection Type: Screw Terminals
• Material: High-quality Thermoplastic (PC/ABS)
• IP Rating: IP20
• Series: Simon Basic
• Module Size: 1-Module
• Number of Poles: 2P+E
• Shutter Protection: Yes
• Installation Depth: Approx. 30-40 mm
• Operating Temperature: -5°C to +40°C
• Standards Compliance: CE, RoHS, EN 60884-1

Recommendations

For optimal performance, use with compatible Simon Basic frames and ensure proper earthing during installation. Suitable for indoor use only.
