IP security camera Hikvision DS-2TD1217B-6/PA

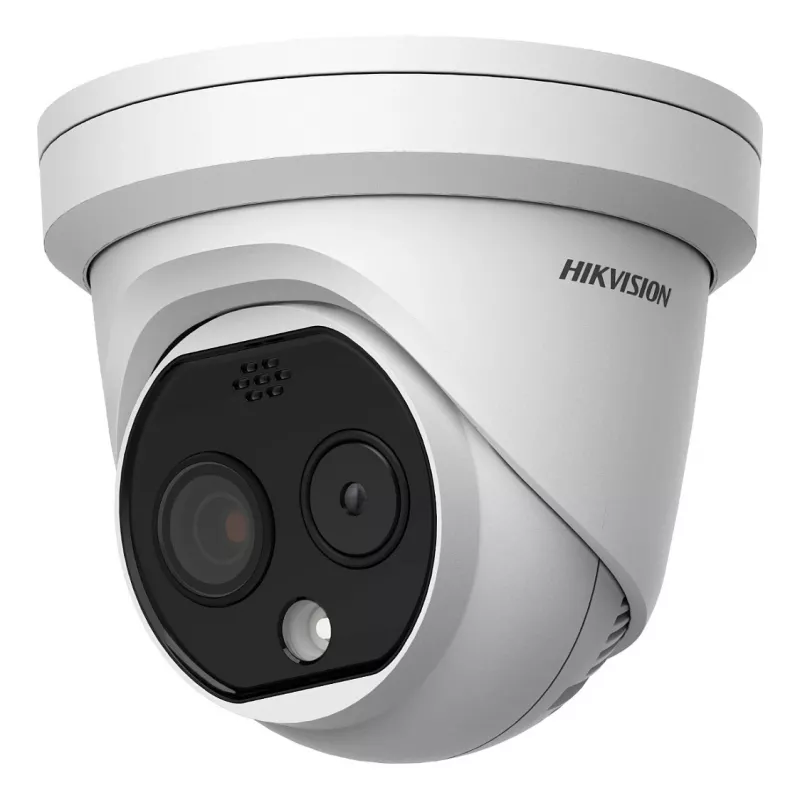

Hikvision DS-2TD1217B-6/PA is a thermographic turret IP camera that combines optical and thermal imaging to provide real-time detection of elevated skin-surface temperature with high accuracy. Designed for ceiling or wall mounting in indoor and sheltered outdoor environments, the camera delivers 2688 x 1520-pixel optical resolution, a 39.42° field of view and an integrated 6.2 mm fixed-focus thermal module for preliminary temperature screening in office buildings, factories, stations, and airports.

Advantages

This model integrates a CMOS optical sensor and a thermal sensor to enable simultaneous visual monitoring and temperature screening. It supports low-light performance down to 0.0089 lx for clear imaging in dim conditions, and the thermal module is calibrated to detect elevated skin-surface temperatures in real time. The camera’s turret form factor and white finish suit ceiling installations while providing a compact, unobtrusive appearance.

Suitable for

• Preliminary temperature screening at building entrances
• Surveillance in offices and factory floors
• Passenger flow control at stations and airports
• Healthcare facility triage and waiting areas

Key specifications

• Model: Hikvision DS-2TD1217B-6/PA (MPN: DS-2TD1217B-6/PA(B))
• Optical resolution: 2688 x 1520 pixels
• Optical sensor: CMOS
• Minimum illumination: 0.0089 lx
• Field of view (optical): 39.42°
• Thermal module focal length: 6.2 mm (fixed)
• Color: White
• EAN: 6941264047230

How to use

Install the camera on a ceiling or wall at an appropriate height and angle to ensure faces are within the thermal module’s field of view. Connect to a compatible network recorder or management software per Hikvision guidelines, configure the thermal screening parameters and alarms, and verify calibration using a reference target if provided. Use the optical stream for identification and the thermal stream for rapid temperature checks; flagged cases should be rechecked with a medical-grade thermometer according to local procedures.

Recommendations

For accurate screening results, mount the camera in a stable environment away from direct sunlight, drafts, or heat sources. Maintain a consistent distance between subjects and the camera, perform regular calibration if required by local regulations, and treat thermal readings as preliminary—confirm elevated temperatures with a medical device.
