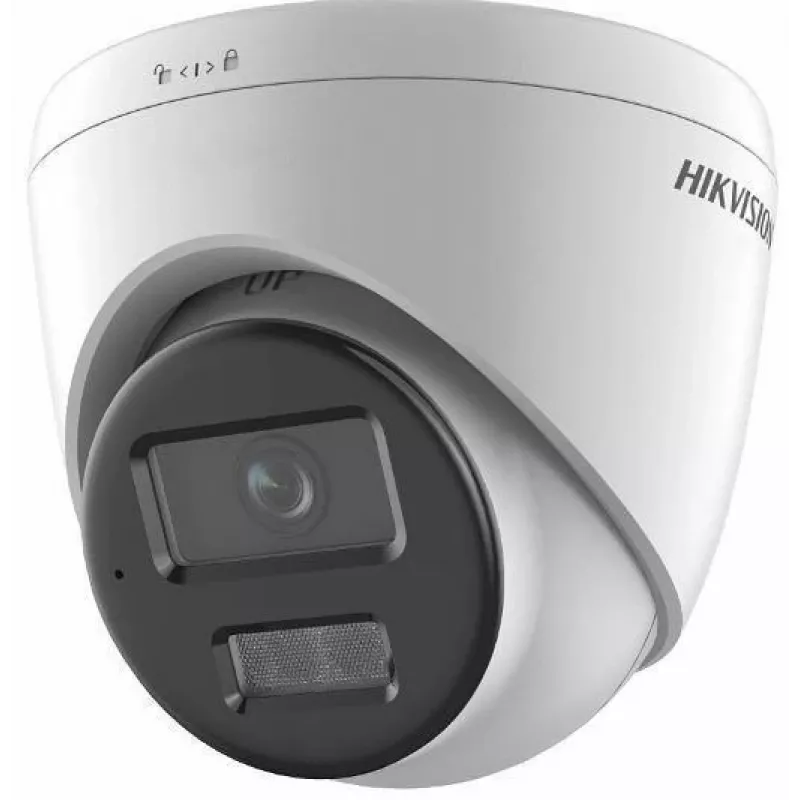

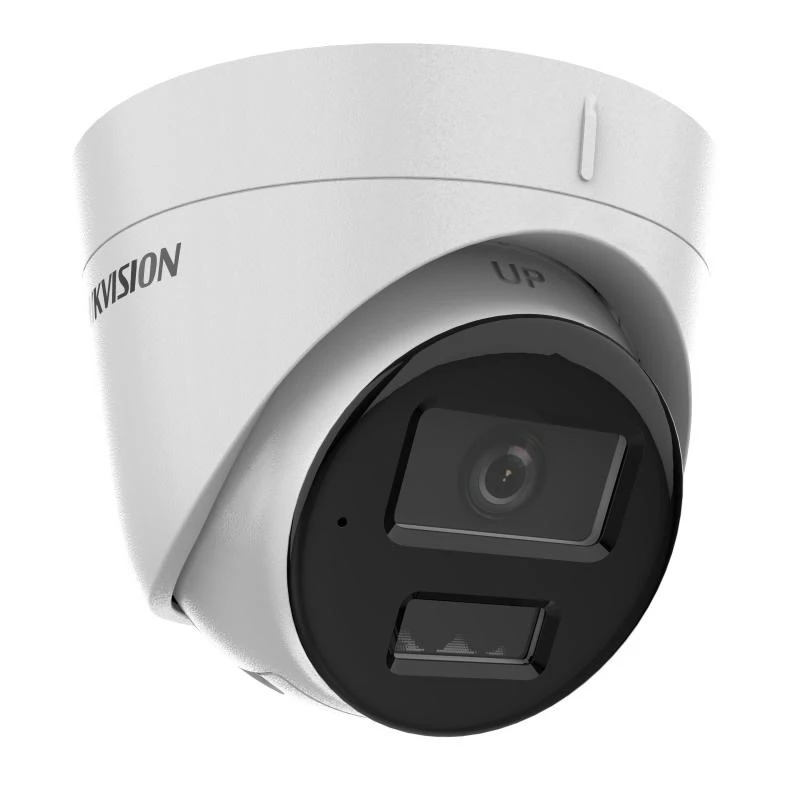

IP security camera Hikvision DS-2CD1341G2-LIU 2.8mm turret, 2.8MP (2560×1440), ceiling mount, wired, indoor/outdoor

The Hikvision DS-2CD1341G2-LIU is a turret-style IP security camera designed for ceiling mounting in both indoor and outdoor environments. It features a 2.8 mm fixed lens and a 2.8 MP sensor that captures 2560×1440 resolution video at up to 25 fps. The camera uses wired Ethernet connectivity and a 1/2.8" CMOS image sensor. Its optical design provides a wide field of view (approximately 104° horizontal and 57° vertical) and supports full 360° rotation of the turret housing for flexible installation angles. The camera is supplied in a white housing and weighs about 0.345 kg.

Advantages

The DS-2CD1341G2-LIU delivers higher-than-basic resolution for clearer identification and monitoring while remaining part of a value-oriented product line. Wired Ethernet ensures a stable network connection and reliable data transmission for continuous surveillance. The camera’s wide viewing angles and 360° turret rotation simplify placement and framing of subjects when mounted on ceilings. Built-in video motion detection supports automated event recording and alerts. The white ceiling-mount turret is suitable for discreet integration into many interior and exterior environments.

Suitable for

• General indoor ceiling surveillance in offices, corridors and retail spaces
• Outdoor covered entrances and building perimeters where ceiling mounting is possible
• Areas requiring continuous wired network connectivity for video monitoring
• Locations where medium-range detection and observation are sufficient (detection up to 53 m, observation up to 21 m)

Key specifications

• Image sensor: 1/2.8" CMOS
• Resolution: 2.8 MP (2560×1440)
• Lens: 2.8 mm fixed focal length
• Frame rate: up to 25 fps
• Field of view: approx. 104° horizontal, 57° vertical
• Rotation: 360° turret rotation for installation adjustment
• Connectivity: Wired Ethernet LAN
• Placement: Indoor and outdoor (ceiling mount)
• Motion detection: Video motion detection supported
• Housing colour: White
• Weight: 0.345 kg

How to use

Mount the camera on a suitable ceiling surface using appropriate fasteners and ensure the turret is oriented to capture the required scene. Connect the camera to a wired Ethernet network for power and data if using Power over Ethernet (PoE) or connect separate power and network cables according to installation requirements. Configure the camera’s network settings and recording parameters using Hikvision-compatible management software or an NVR, enable video motion detection and set sensitivity zones as needed. Adjust the turret rotation and lens aim before finalizing the mounting to achieve the desired coverage.

Recommendations

For reliable outdoor performance, install the camera under a protective overhang if possible and ensure cable entry points are sealed. Use a properly configured wired network or PoE switch to maintain stable connectivity. Test motion detection zones during different lighting conditions and adjust sensitivity to reduce false alarms from environmental motion.
