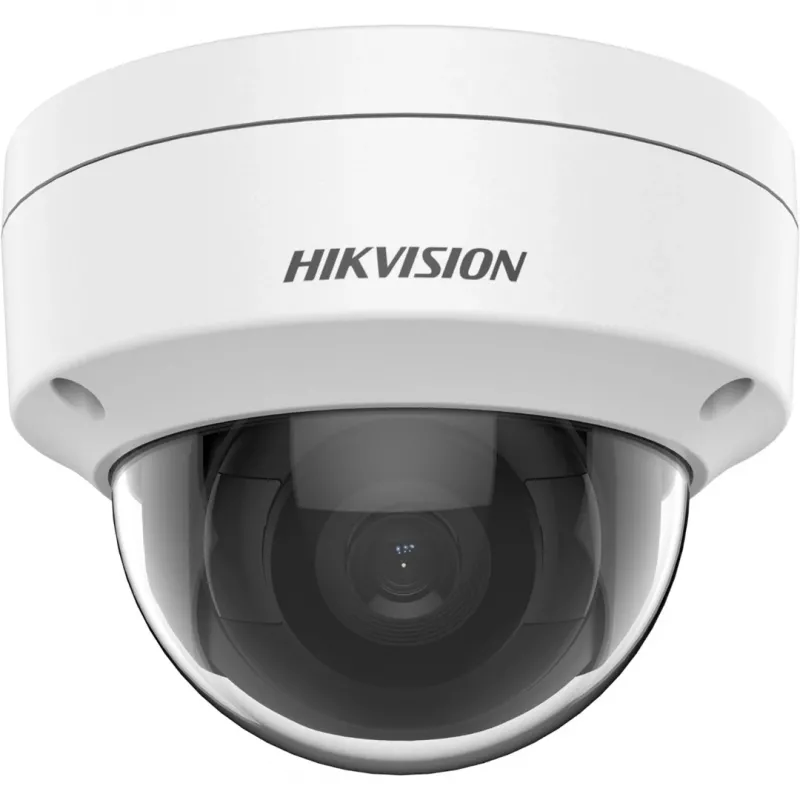

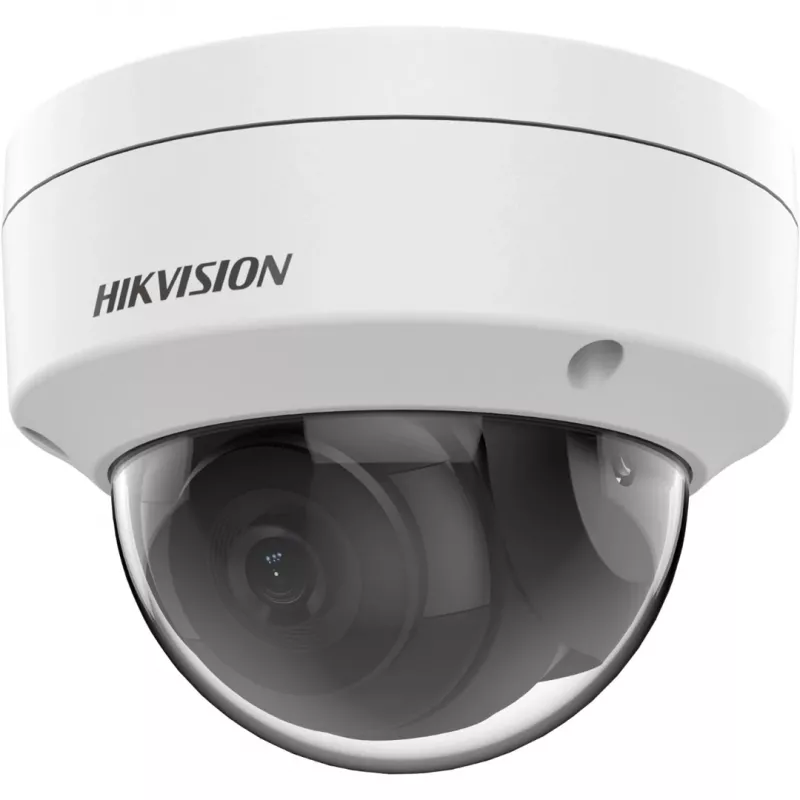

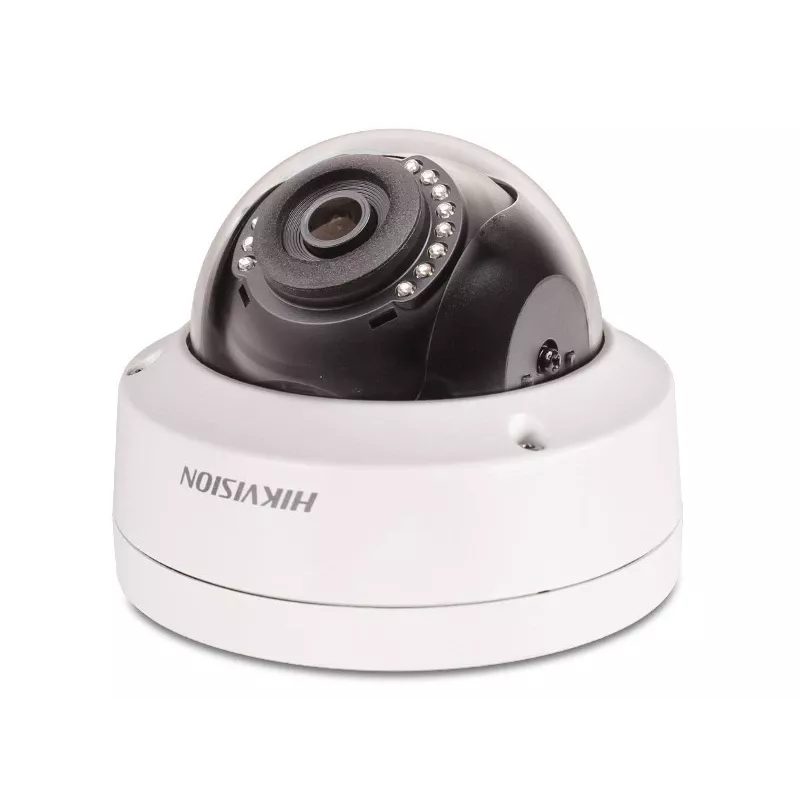

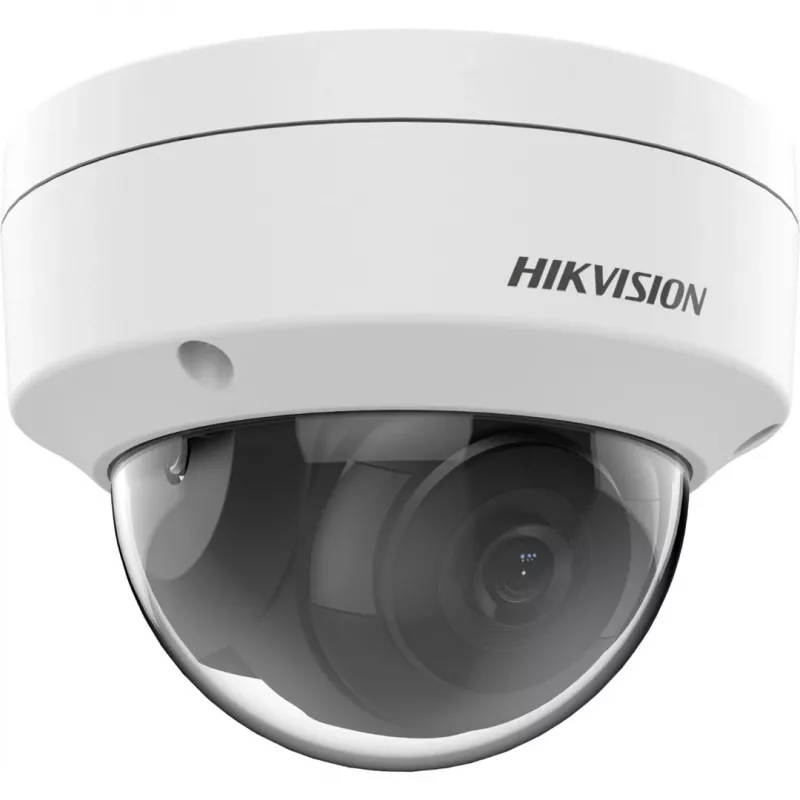

IP security camera Hikvision DS-2CD1121-I Outdoor 1920 x 1080 pixels

The Hikvision DS-2CD1121-I Outdoor 1920 x 1080 pixels is a dome IP security camera built for exterior surveillance. It delivers Full HD 1920 x 1080 resolution through a CMOS sensor and a 2.8 mm fixed focal length, providing wide coverage with a 112.1° horizontal and 60° vertical field of view. The housing combines metal and plastic and meets an IP67 ingress protection rating to resist dust and water, and the design supports wired Ethernet connectivity for stable network transmission.

Advantages

This camera provides reliable Full HD image quality at up to 30 fps, suitable for capturing detailed scenes in outdoor conditions. The IP67-rated metal and plastic enclosure gives robust protection against dust and moisture while remaining compact at approximately 0.41 kg. A wide-angle view reduces the number of cameras required to cover open areas, and built-in video motion detection can assist with event-driven recording and alerts. Wired Ethernet ensures consistent data transfer and integration with standard IP surveillance systems.

Suitable for

• Perimeter monitoring of homes, small businesses, and residential complexes
• Monitoring driveways, entrances and parking areas
• Outdoor common areas and property boundaries

Key specifications

• Image sensor: CMOS, Full HD 1920 x 1080 resolution
• Lens: 2.8 mm fixed focal length for wide-angle coverage
• Field of view: 112.1° horizontal, 60° vertical
• Frame rate: up to 30 frames per second
• Ingress protection: IP67-rated outdoor housing
• Construction: metal and plastic housing
• Connectivity: wired Ethernet (LAN)
• Features: built-in video motion detection
• Weight: approximately 0.41 kg

How to use

Mount the camera on a firm surface using appropriate fasteners and angle it to cover the intended field of view. Connect the device to your network via Ethernet cable and configure IP settings using your network management tools or the camera's web interface. Integrate the camera with your recorder or video management software to enable continuous or event-based recording. Adjust exposure and image settings through the camera menu to optimize clarity for local lighting conditions.

Recommendations

Place the camera under an overhang or use additional weather protection in exposed environments to prolong service life, and position the camera to avoid direct facing of strong light sources. Regularly check cable connections and firmware updates to maintain reliable operation and security integration.
