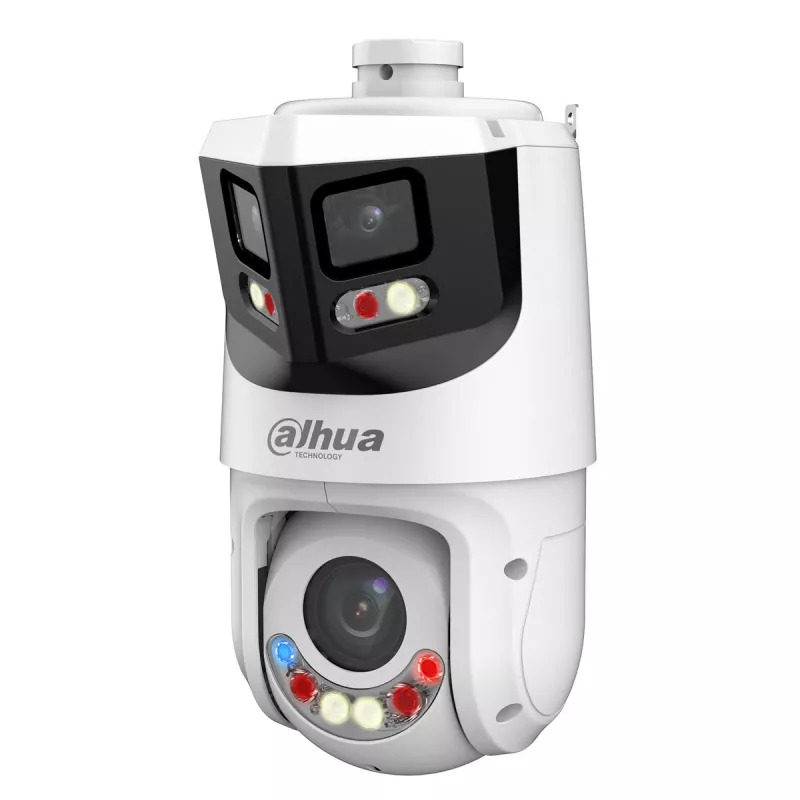

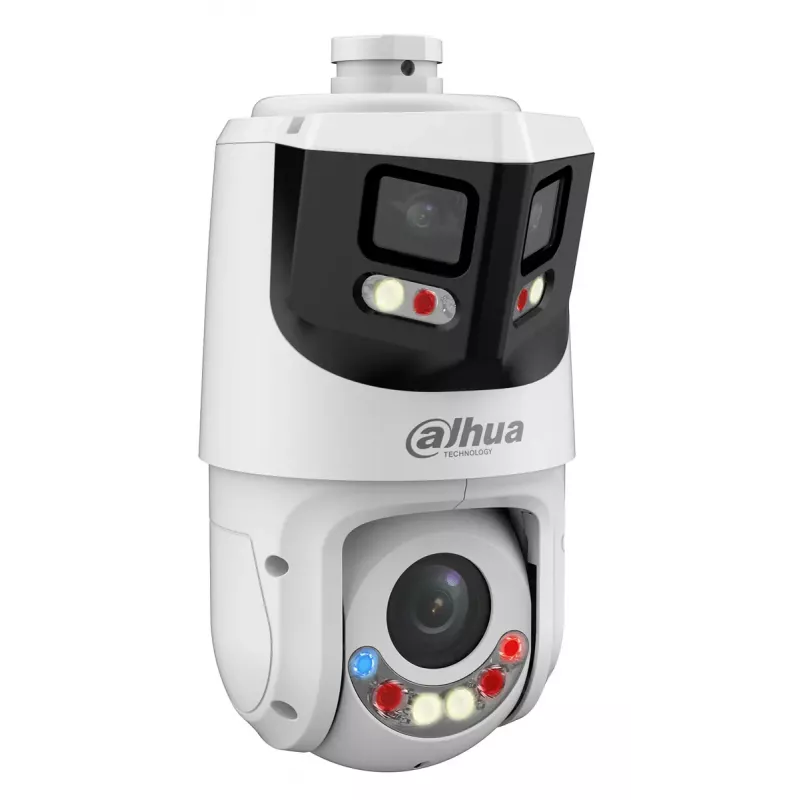

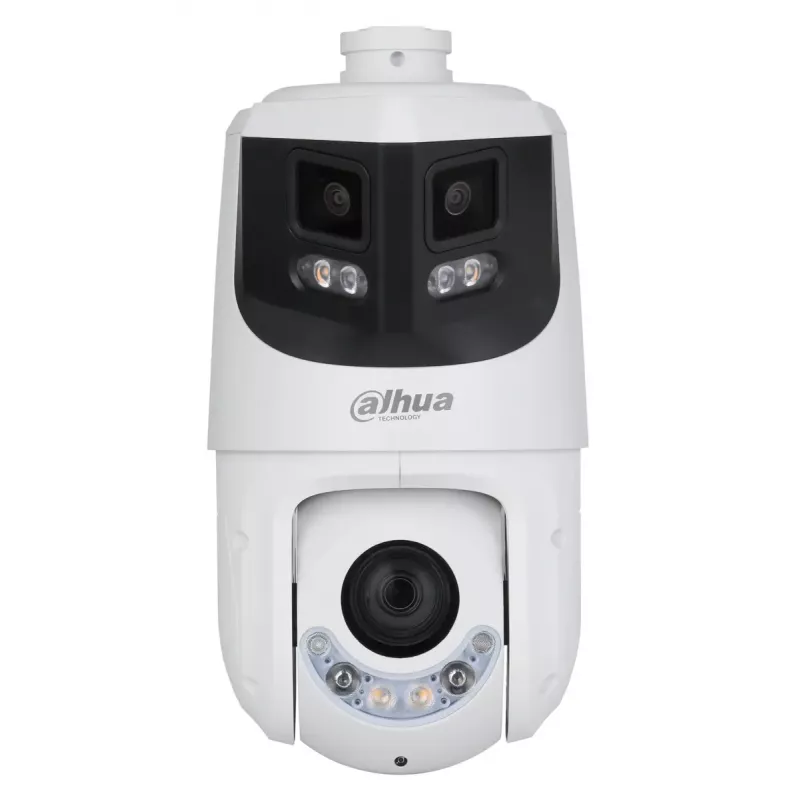

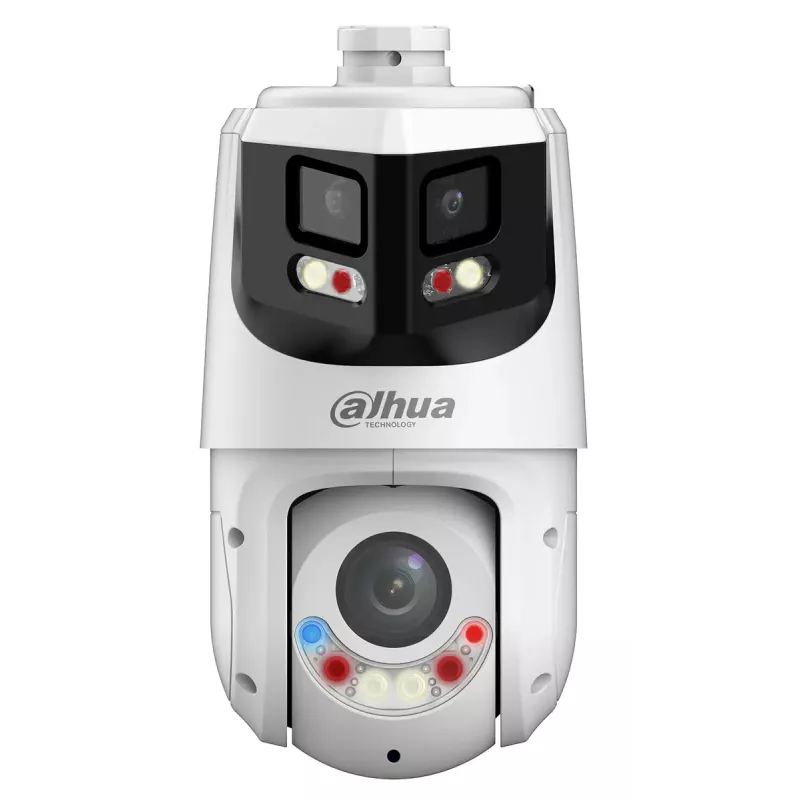

IP security camera Dahua Technology WizSense SDT4E425-8P-GB-APV1 4096 x 1860 pixels

8+4MP 25x TiOC Network Panoramic PTZ Camera provides a combined panoramic overview and high-resolution detail channel in a single IP security unit. The camera offers a 180° stitched overview image alongside a dedicated 4MP detail sensor with 25x optical zoom, making it suitable for indoor and outdoor surveillance where both wide-area coverage and close-up identification are required.

Advantages

The dual-channel design delivers continuous panoramic monitoring plus a high-resolution detail view. With STARVIS™ 4MP CMOS for the detail channel, 25x optical zoom, up to 100 m IR illumination and smart tracking features, the camera supports reliable day-and-night observation and automated follow-up of moving targets. IP66 protection and a dome form factor allow installation on ceilings or walls in varied environments.

Key specifications

• Overview channel: 180° wide-angle stitched image
• Detail channel sensor: 1/2.8" 4MP STARVIS™ CMOS
• Detail resolution: up to 8MP (4096 x 1860 pixels)
• Optical zoom: 25x
• Digital zoom: 16x
• Frame rate: up to 25/30 fps at 8MP
• Infrared (IR) distance: up to 100 m
• Smart features: Auto tracking 3.0, smart tracking, perimeter protection, active deterrence, smart dual light +
• Network: Wired Ethernet LAN
• Installation: Dome for ceiling or wall mounting
• Ingress protection: IP66
• Color: White
• Weight: 3.1 kg

How to use

Mount the dome camera on a suitable ceiling or wall ensuring a stable wired Ethernet connection and proper power supply according to the manufacturer instructions. Configure the panoramic overview and detail channels in the camera web interface or VMS, set patrol patterns and zoom presets, and enable smart tracking and perimeter protection rules as needed. Test IR performance and adjust angle and focus so the overview provides full 180° coverage while the detail channel captures critical areas for identification.

Recommendations

For optimal results, install the camera at a height and distance that balance panoramic coverage with the detail channel’s zoom range; use PoE-enabled switches where possible and regularly verify firmware updates and configuration backups.
