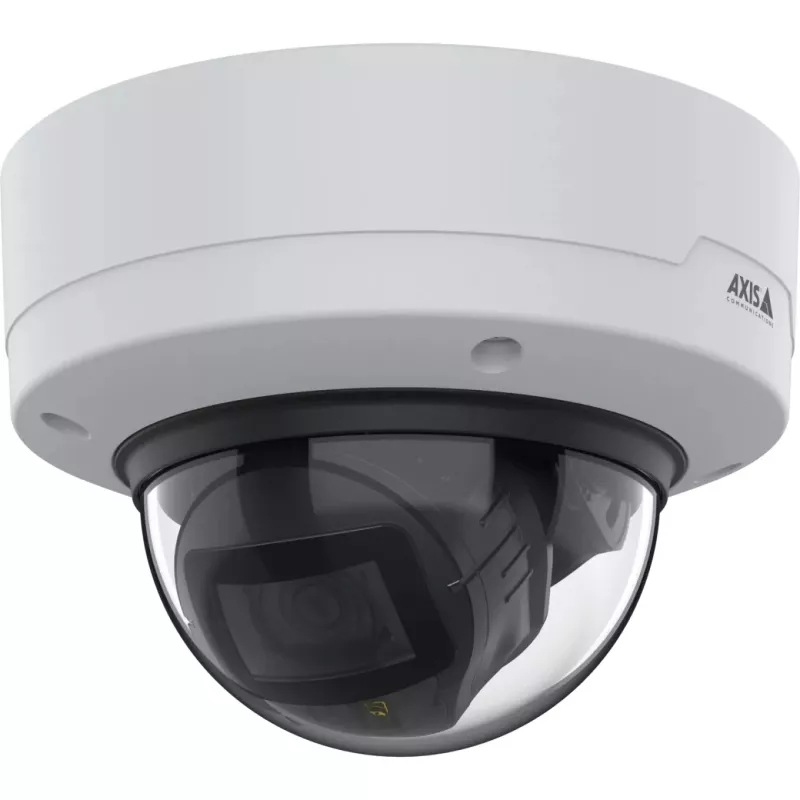

IP security camera Axis P3278-LVE — Dome, 3840×2160, Indoor & outdoor, Ceiling/wall mount, 1/1.8 inch CMOS, 0.03 lx, 103° H

AXIS P3278-LVE is a wired dome IP security camera delivering 8 MP (3840×2160) resolution for indoor and outdoor surveillance. Built on the ARTPEC-9 platform and equipped with a 1/1.8" CMOS sensor, this ceiling- or wall-mountable camera provides wide coverage with a 103° horizontal viewing angle and a 190° rotation range. Lightfinder 2.0, Forensic WDR and OptimizedIR improve image detail in difficult lighting and near-dark conditions, while Axis Zipstream with AV1, H.264 and H.265 support reduces bandwidth and storage needs. The camera also includes audio input capability and a DLPU for running AI analytics at the edge.

Advantages

The camera offers high-resolution image quality and forensic detail in varied lighting thanks to advanced imaging technologies and IR illumination. On-device AI processing enables object detection, classification, tracking and counting without relying solely on central servers. Robust mechanical and environmental ratings (IK10, IP66, NEMA 4X) and an extended operating temperature range make the unit suitable for exposed installations. Built-in cybersecurity features, including hardware-based key protection, help secure video and configuration data.

Suitable for

• Perimeter surveillance of commercial or industrial sites
• Corridors, lobbies and large indoor spaces requiring panoramic coverage
• Vehicle and pedestrian monitoring with object classification and counting
• Outdoor entrances and areas requiring vandal- and weather-resistant devices

Key specifications

• Resolution: 3840 × 2160 (8 MP)
• Image sensor: 1/1.8" CMOS
• Horizontal field of view: 103°; rotation range: 190°
• Minimum illumination: 0.03 lux; OptimizedIR for zero-light operation
• Video codecs: AV1, H.264, H.265 with Axis Zipstream support
• On-device processing: ARTPEC-9 with DLPU for AI analytics
• Night vision range: up to 40 m IR
• Connectivity: wired Ethernet (PoE capable depending on installation)
• Environmental protection: IP66; impact resistance: IK10; NEMA 4X
• Operating temperature range: -40 °C to 50 °C
• Mounting: ceiling or wall (dome form factor)
• Physical: vandal-resistant dome construction; available in black or white; weight ~850 g

How to use

Install the AXIS P3278-LVE on a stable ceiling or wall mount following the manufacturer’s installation instructions and local regulations. Connect the camera to a PoE-enabled network switch or provide appropriate power and Ethernet cabling. Configure basic network and security settings through the Axis configuration interface, enable required codecs and set imaging profiles (WDR, Lightfinder 2.0, IR thresholds) to match site lighting. Deploy AXIS Object Analytics and other edge applications via the camera’s management portal to enable detection, classification and event notifications.

Recommendations

Position the camera to maximize the 103° horizontal field of view and use the 190° rotation to cover critical areas without obstructions. For best forensic results, combine Forensic WDR and Lightfinder 2.0 in scenes with mixed lighting; enable OptimizedIR for complete darkness. Regularly verify firmware and Axis Edge Vault configurations to maintain cybersecurity and update AI models or analytics settings to reflect changing site conditions.
