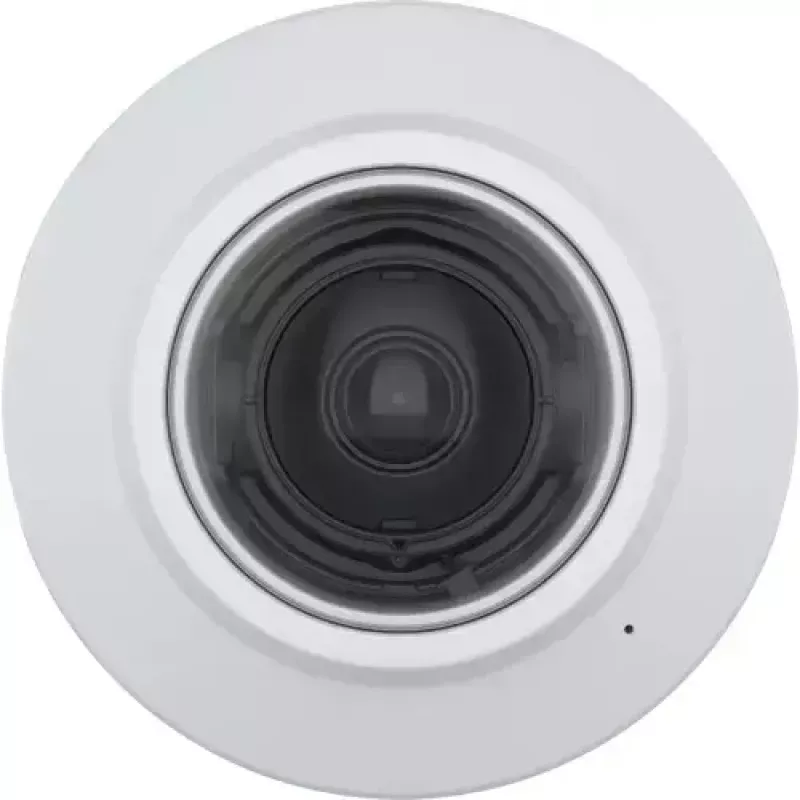

IP security camera Axis 02832-001 Bullet 2688 x 1512

AXIS M3086-V is a compact 4 MP dome camera that delivers high-quality images and supports edge-based deep learning analytics. The AXIS M3086-V Mic variant includes a built-in microphone, making it ready for AXIS Audio Analytics without additional accessories. The camera provides a wide 130° field of view and comes factory-focused for immediate installation.

Advantages

The camera maintains clear, color images in low light with Lightfinder and handles scenes with both bright and dark areas using Wide Dynamic Range (WDR). Edge-based analytics produce searchable metadata for efficient forensic review, and the preinstalled AXIS Object Analytics is configured to detect objects of interest. The M3086-V is compact, vandal-resistant, and designed for discreet indoor installations with a bayonet-fitted casing for quick mounting and removal.

Key specifications

• Image resolution: 4 MP (2688 x 1512)
• Sensor: CMOS 1/2.7" (25.4 / 2.7 mm equivalent)
• Field of view: 130° (wide-angle)
• WDR and Lightfinder for improved performance in challenging light
• Edge analytics with deep learning (AXIS Object Analytics preinstalled)
• Variant available with built-in microphone (AXIS M3086-V Mic)
• Axis Edge Vault hardware-based cybersecurity
• Compression: H.264 / H.265 with Axis Zipstream
• Indoor, vandal-resistant mini dome; dust and drip protected
• Mounting: ceiling (bayonet-fitted casing)
• Connection: wired
• Color: white

How to use

Install the camera on the ceiling using the bayonet-fitted casing — the housing twists on for fast attachment and removal. Connect the camera with a wired network connection and configure it via the Axis management interface. Use the preinstalled AXIS Object Analytics and enable AXIS Audio Analytics for the Mic variant if audio analysis is required. Record to an onboard memory card for edge storage or integrate with your network video recorder and adjust WDR and Lightfinder settings as needed for optimal image quality.

Recommendations

For indoor surveillance with discreet installation, choose the M3086-V for high-resolution video and efficient forensic search. Select the M3086-V Mic if out-of-the-box audio analytics are needed. Ensure proper ceiling mounting and network configuration to make full use of edge analytics and secure storage features.
