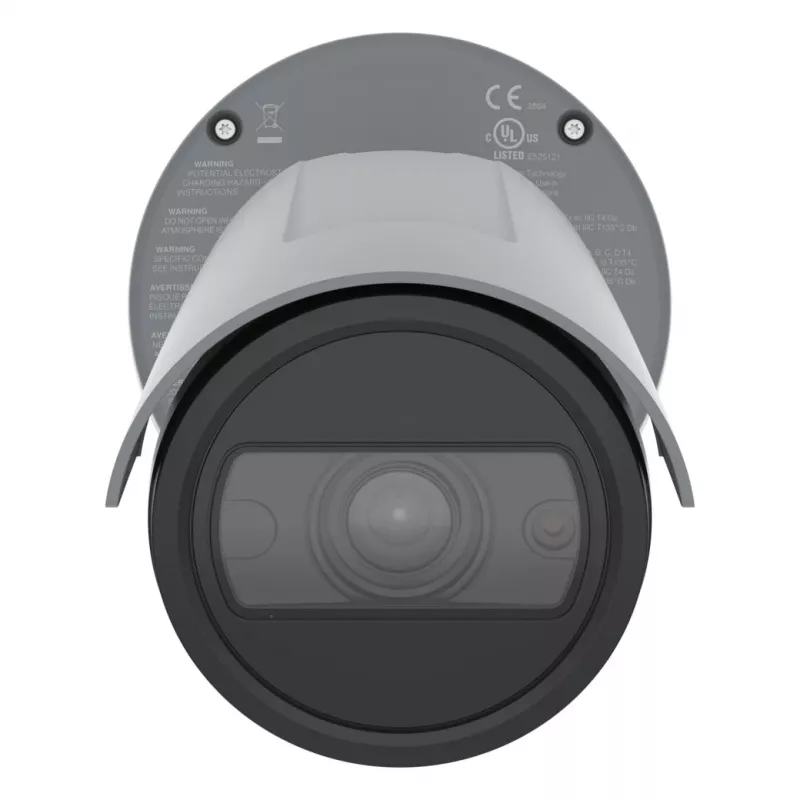

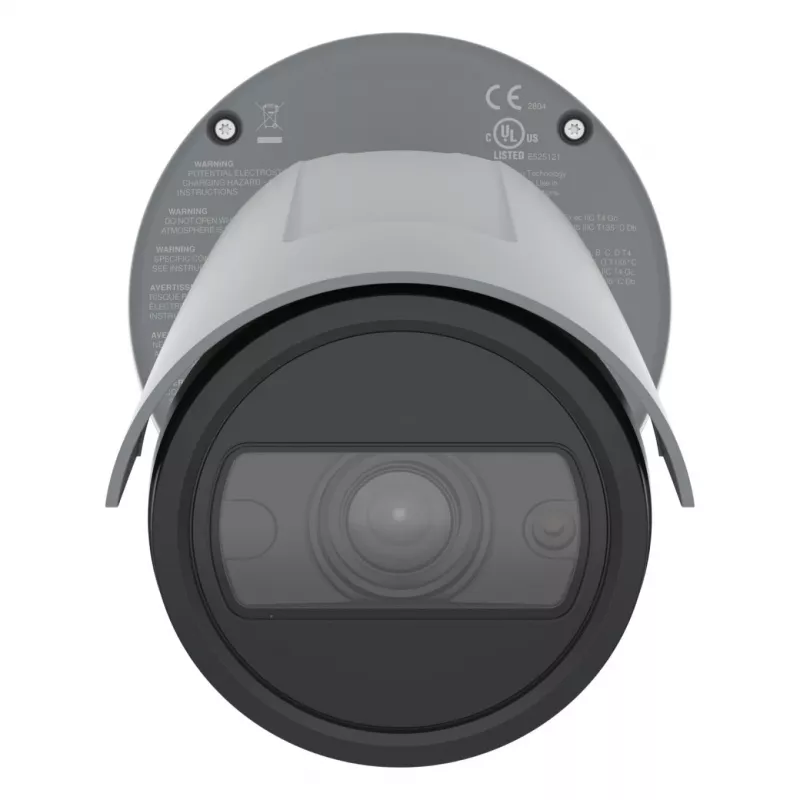

IP security camera Axis 02534-001 Bullet 3840 x 2160 pixels

The AXIS 02534-001 is a robust 4K IP security camera in a bullet form factor, certified for hazardous locations (Zone 2/22 and Class I/II/III Division 2 according to ATEX/IECEx/cULus). Designed for indoor and outdoor use, it delivers 3840 x 2160 resolution at up to 60 fps, a large 1/1.2" sensor for improved low-light sensitivity, and OptimizedIR for surveillance in total darkness up to 40 m. Compact and impact-resistant, the camera supports wired Ethernet connectivity and is suitable for ceiling or wall mounting.

Advantages

This explosion-protected camera combines high-resolution imaging with edge-based deep learning analytics powered by ARTPEC-8 and an integrated DLPU. It delivers true colours and forensic detail in challenging lighting with Lightfinder 2.0 and Forensic WDR, reduces bandwidth and storage needs using Zipstream (H.264/H.265), and provides reliable operation in harsh environments with IP66/67, NEMA 4X and IK10 ratings. Built-in cybersecurity features, including Axis Edge Vault, help protect device identity and simplify product authorization on the network.

Suitable for

• Hazardous industrial areas requiring Zone 2/22 or Division 2 certification
• Health and safety monitoring, including smoke and fire detection in combustible environments
• Operational efficiency and process monitoring with real-time edge analytics
• Indoor and outdoor perimeter surveillance where impact and weather protection are required

Key specifications

• Resolution: 3840 x 2160 (4K) at up to 60 fps
• Sensor: 1/1.2" CMOS
• Optical zoom: 2.08x; focal length: 6.2–12.9 mm
• Minimum illumination: 0.07 lx; OptimizedIR up to 40 m
• Video codecs: H.264 and H.265 with Zipstream
• Connectivity: Wired Ethernet (PoE supported by Axis devices)
• Mounting: Ceiling or wall; form factor: bullet
• Environmental protection: IP66/67, NEMA 4X, IK10; withstands wind up to 50 m/s
• Certifications: ATEX/IECEx/cULus for Zone 2/22 and Class I/II/III Division 2
• Frame rate: 60 fps; Weight: 1.2 kg; Colour: Grey

How to use

Install the camera on a suitable ceiling or wall bracket in accordance with the hazardous area installation rules and applicable certifications. Connect to a wired Ethernet network and integrate with your process control or video management system to receive live video and metadata. Enable on-edge analytics via the camera’s ARTPEC-8 DLPU to run deep learning models locally for tasks such as smoke alerting, object detection and process monitoring. Configure exposure, IR and Zipstream settings in the camera web interface or management software to balance image quality with bandwidth and storage needs.

Recommendations

Place the camera where the field of view covers critical process areas or potential ignition sources, ensure regular calibration and firmware updates, and combine camera analytics with existing sensors for more reliable event detection and predictive maintenance.
