IP security camera Axis 02022-002 3840 x 2160 pixels

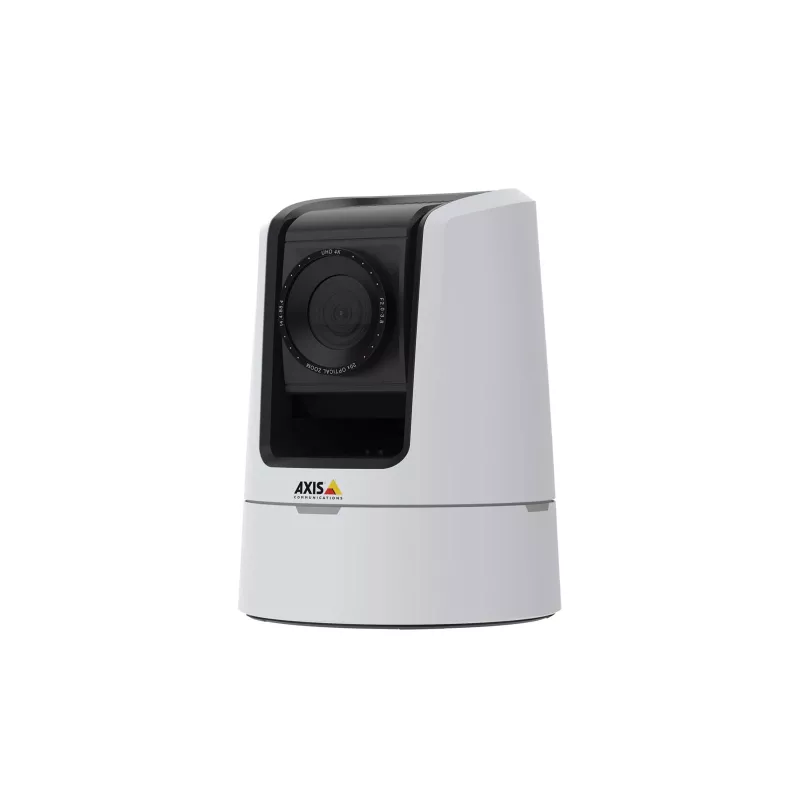

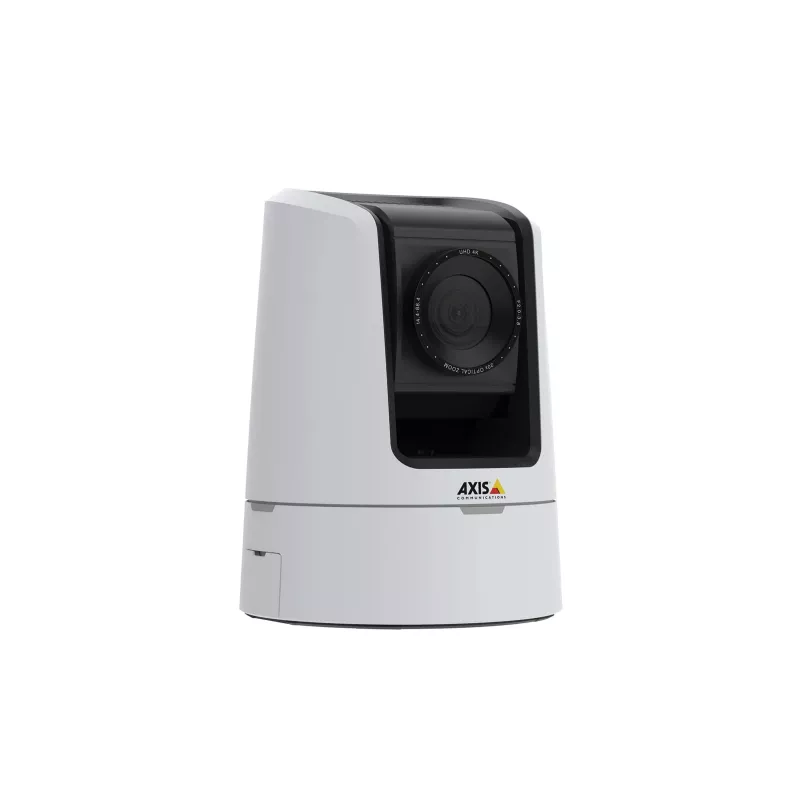

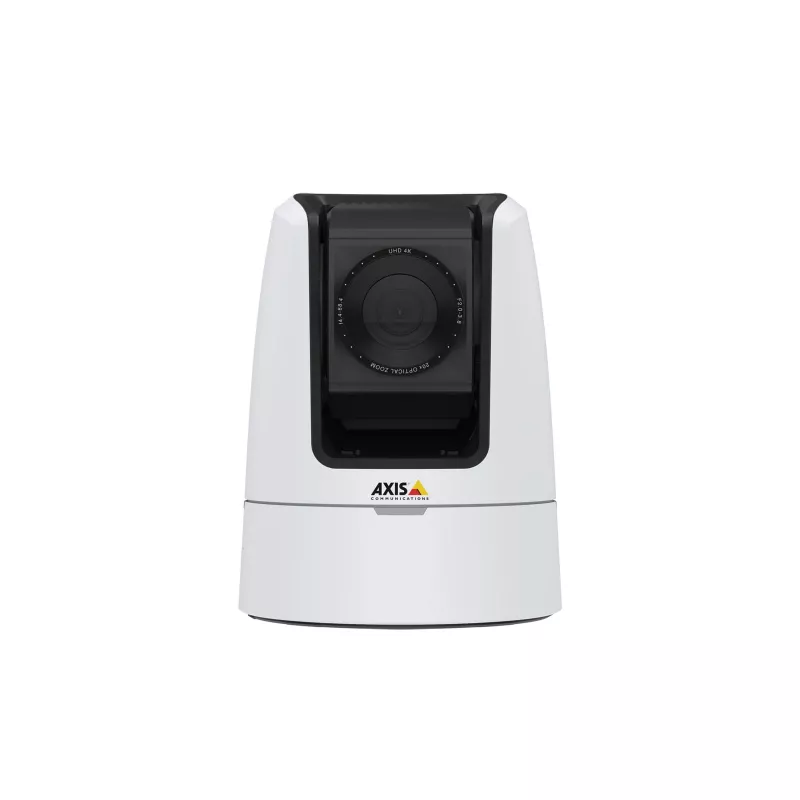

The AXIS V5938 is an indoor IP security camera (model 02022-002) offering 3840 x 2160 resolution, smooth PTZ control and broadcast-quality audio for professional webcasting and surveillance. It supports wired Ethernet connectivity, ceiling or wall mounting, a 20x optical zoom and a CMOS sensor with a minimum illumination of 0.1 lx, delivering detailed images even in low light. The camera is compatible with VISCA joysticks and VISCA over IP and is NDI® compliant (license sold separately).

Advantages

AXIS V5938 combines high-resolution 4K imaging with fluid PTZ mechanics and integrated audio suitable for webcasting. Advanced security features such as signed firmware and secure boot protect firmware integrity, while Axis Zipstream with H.264/H.265 reduces bandwidth and storage needs without noticeable loss of image quality. Compatibility with VISCA control protocols and optional NDI® support simplifies integration into existing AV and broadcast installations.

Suitable for

Key specifications

How to use

Mount the camera on a ceiling or wall using suitable hardware and connect it to a wired Ethernet network for power and data. Configure the camera via its web interface or management software to set resolution, frame rate and compression (H.264/H.265 with Zipstream) and calibrate PTZ presets. To enable remote control, connect a VISCA-compatible joystick or configure VISCA over IP. If NDI® workflows are required, purchase and install the appropriate NDI® license as specified by the manufacturer.

Recommendations

For optimal performance, use a stable wired Ethernet connection and configure Axis Zipstream to balance image quality with bandwidth and storage. Enable signed firmware and secure boot to maintain device security. When deploying in low-light environments, verify the minimum illumination requirements and adjust camera placement and lighting where necessary.
