IP security camera APC NetBotz 165 High Definition

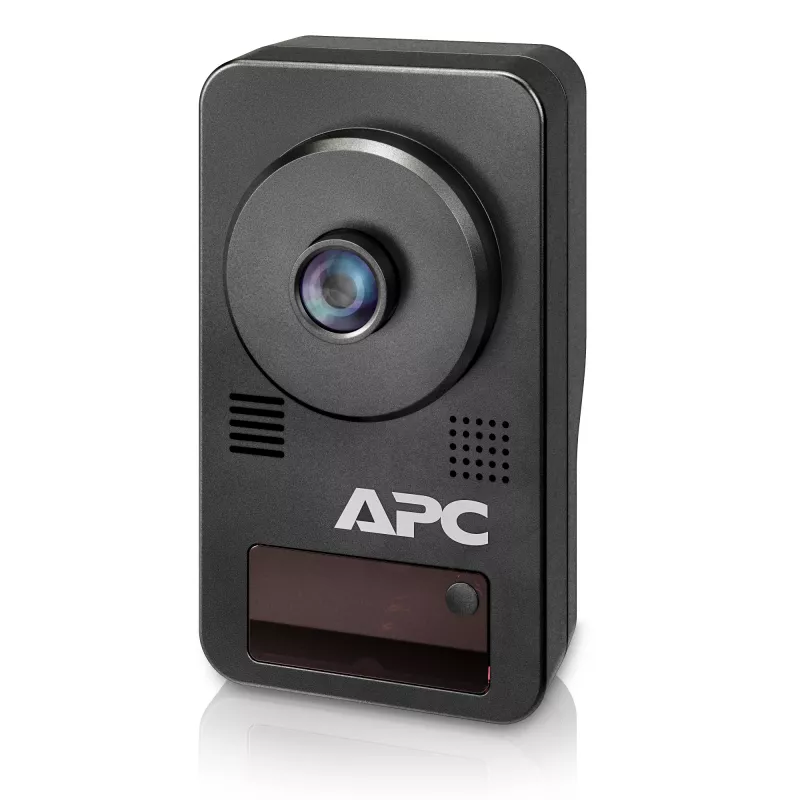

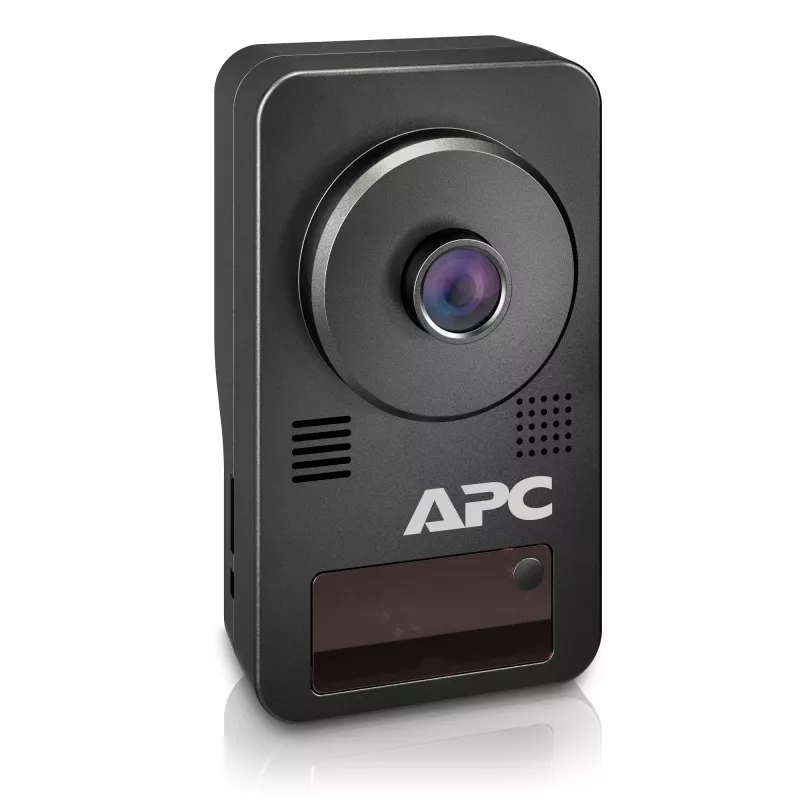

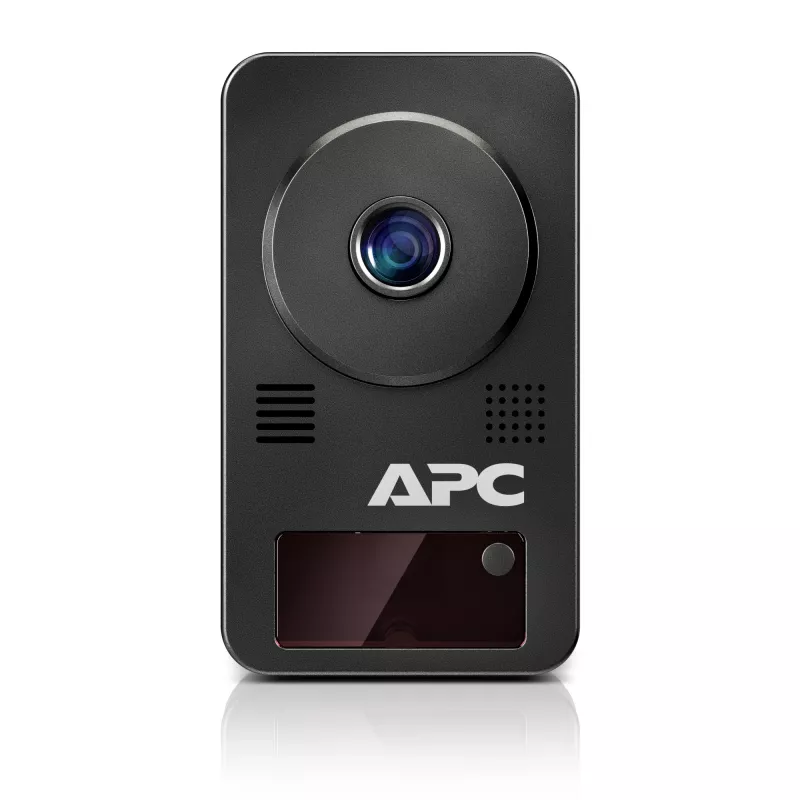

The APC NetBotz 165 High Definition IP security camera is a compact black cube camera designed for indoor and outdoor placement. It delivers high-definition 4MP video with motion detection and supports video storage and clip capture. The camera offers a 100° field of view, fixed 2.8 mm focal length and a CMOS sensor with a low-light sensitivity down to 0.01 lx. Wired connectivity and compatibility with NetBotz 700 series appliances enable integration into existing APC monitoring setups.

Advantages

The camera provides high-definition 4MP image capture with motion detection and configurable alerts to help monitor physical spaces. Its wide 100° field of view and fixed 2.8 mm lens give broad scene coverage, while low-light sensitivity helps maintain usable images in dim conditions. Wired connection ensures stable data transmission and supported integration with NetBotz 700 series appliances simplifies centralized management.

Suitable for

• Server rooms and data centres
• Indoor facility monitoring (corridors, equipment rooms)
• Outdoor covered entrances and loading areas
• Integration with NetBotz 700 series environmental and security monitoring

Key specifications

• Image sensor: CMOS
• Resolution: 4MP (high-definition)
• Minimum illumination: 0.01 lx
• Field of view: 100°
• Focal length: fixed 2.8 mm
• Motion detection and clip capture support
• Video storage support
• Connectivity: wired
• Form factor: compact cube, black

How to use

Mount the camera in a location that provides the desired coverage and run a wired network connection to your monitoring infrastructure. Configure the camera via the NetBotz interface or compatible management software, enable motion detection and set clip capture and alert parameters. Point the fixed 2.8 mm lens to cover the target area and adjust mounting position to optimise the 100° field of view. Connect video storage as required by your monitoring policy.

Recommendations

For best results, install the camera in sheltered outdoor locations or fully indoors to protect it from direct exposure to weather. Use the wired connection for continuous monitoring and integrate the camera with NetBotz 700 series appliances to centralise alerts, recording and environment correlation.
