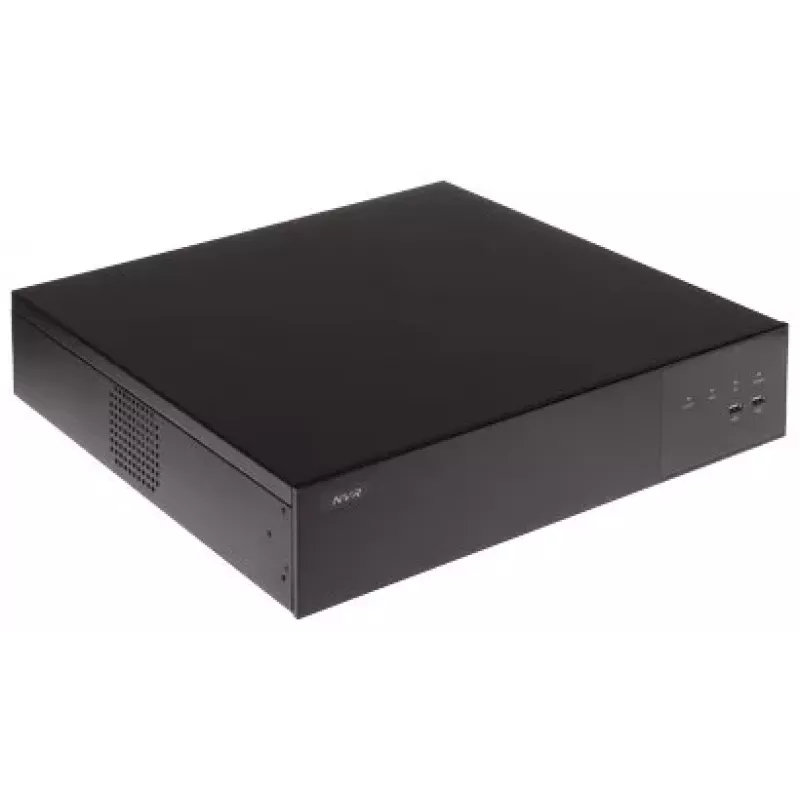

IP Recorder APTI-N3228AI-I3 32 Channels

The APTI-N3228AI-I3 is a high-performance 32-channel IP recorder designed for professional surveillance systems. Supporting up to 8MP (4K UHD) resolution and advanced AI features, it provides reliable and intelligent video management for medium to large-scale installations.

Advantages

With H.265+ compression, the recorder reduces bandwidth and storage requirements without compromising image quality. AI capabilities such as perimeter protection, SMD Plus, and face detection enhance security by filtering false alarms and enabling proactive monitoring.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics hubs
• Educational institutions
• Residential complexes

Key specifications

• 32 IP channels with 256 Mbps incoming bandwidth
• Max recording resolution: 8MP (4K UHD)
• Video compression: H.265+/H.265/H.264+/H.264
• HDMI output up to 4K (3840x2160)
• 2 SATA ports, each supporting up to 10 TB (20 TB total)
• 1x RJ45 10/100/1000 Mbps Ethernet
• 1x USB 2.0, 1x USB 3.0
• 1-ch RCA audio input and 1-ch RCA audio output
• 4-ch alarm input, 1-ch alarm output
• AI features: Perimeter Protection, SMD Plus, Face Detection
• Synchronous playback up to 16 channels
• Decoding: 2-ch@8MP(30fps) or 8-ch@1080P(30fps)
• Power supply: DC 12V
• Form factor: 1U rackmount/desktop

Recommendations

For optimal performance, pair with compatible IP cameras and use high-quality CAT6 cables. Ensure adequate ventilation for continuous operation.
