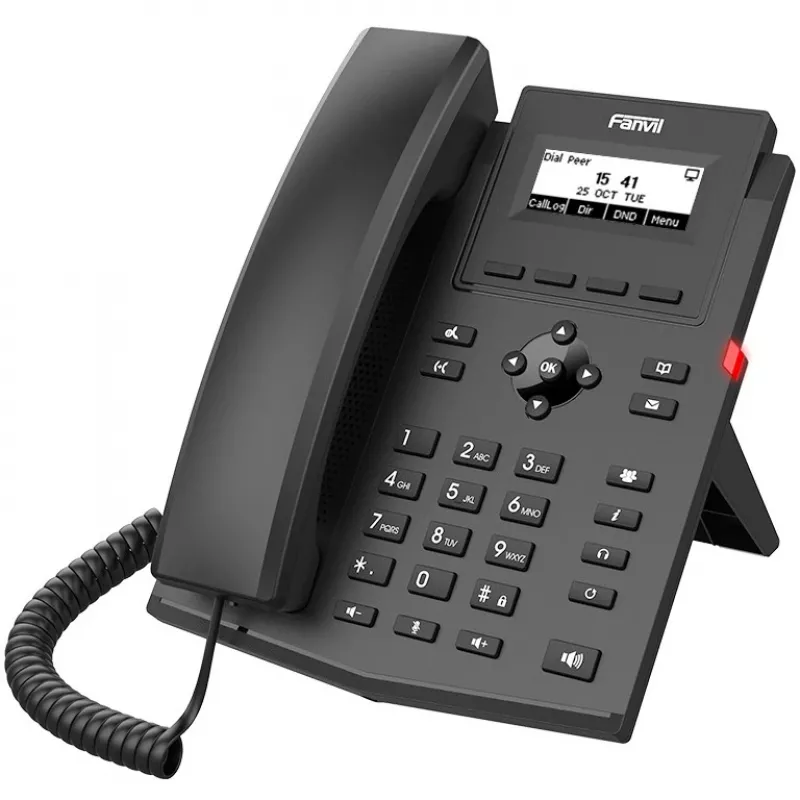

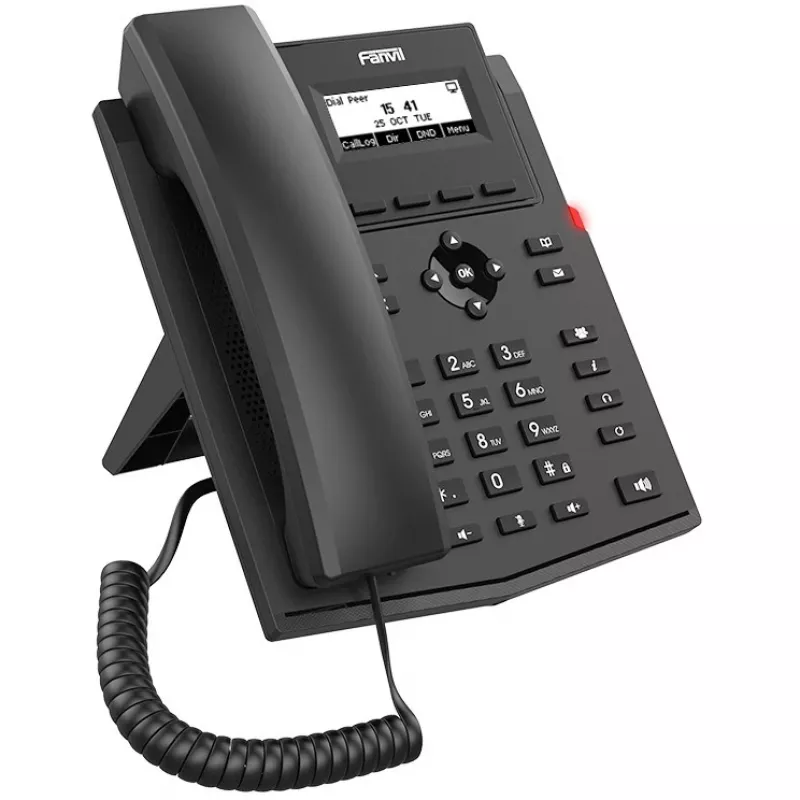

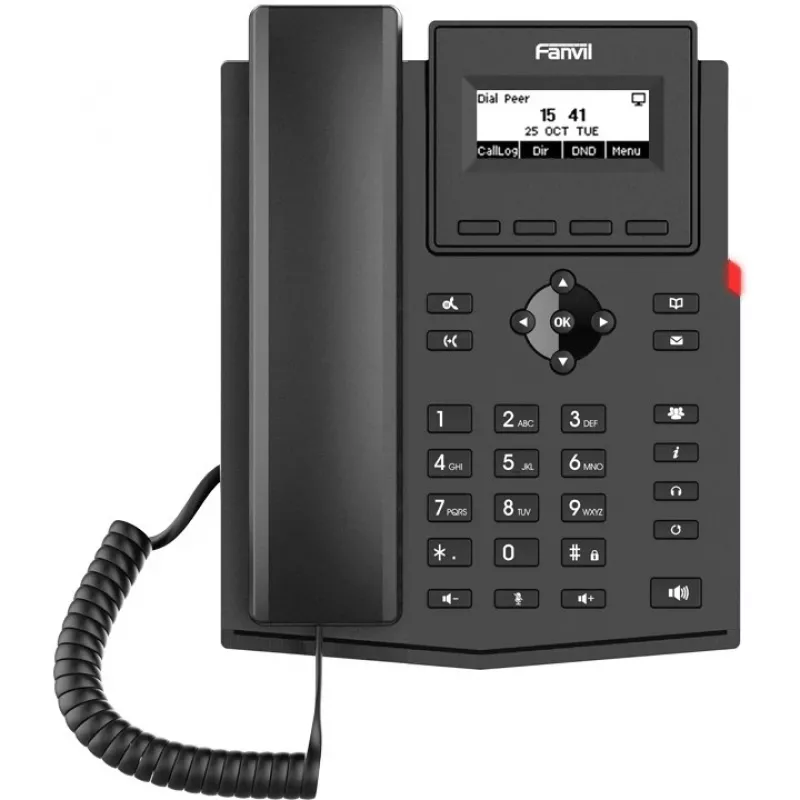

IP Phone Fanvil X301G Black

X301G is an entry-level Gigabit SIP phone designed for business use. It features a 2.3-inch 128x48 pixel dot-matrix display, supports 2 SIP lines and local 6-party conferencing, and includes HD audio, dual 10/100/1000 Mbps network ports and integrated PoE to ensure efficient and reliable communication.

Advantages

The X301G combines basic telephony functions with Gigabit network capability and Power over Ethernet, offering clear HD audio and support for small multi-party conferences. Its compact display and dual network ports simplify desktop setup and network integration while PoE reduces cabling needs.

Key specifications

• Display: 2.3-inch 128 × 48 pixel dot-matrix
• SIP accounts: 2 lines
• Conference: local 6-party conferencing
• Audio: HD audio support
• Network ports: dual 10/100/1000 Mbps Ethernet ports
• Power: integrated PoE (Power over Ethernet)

How to use

Connect the X301G to the network using an Ethernet cable or a PoE-enabled switch to power the device. Register up to two SIP accounts via the phone web interface or local menu, configure network settings as required, and use the handset or speakerphone for calls. To start a local conference, use the phone’s conference feature to add up to six participants.

Recommendations

For best performance, connect the X301G to a Gigabit switch with PoE support and ensure SIP account credentials and network QoS settings are configured on the IP-PBX or SIP provider.
