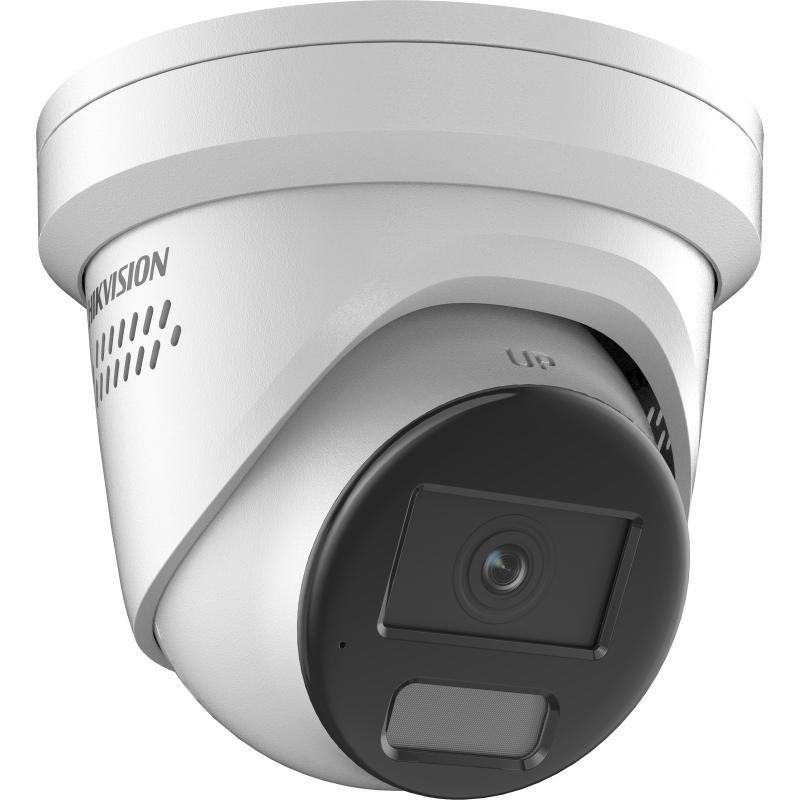

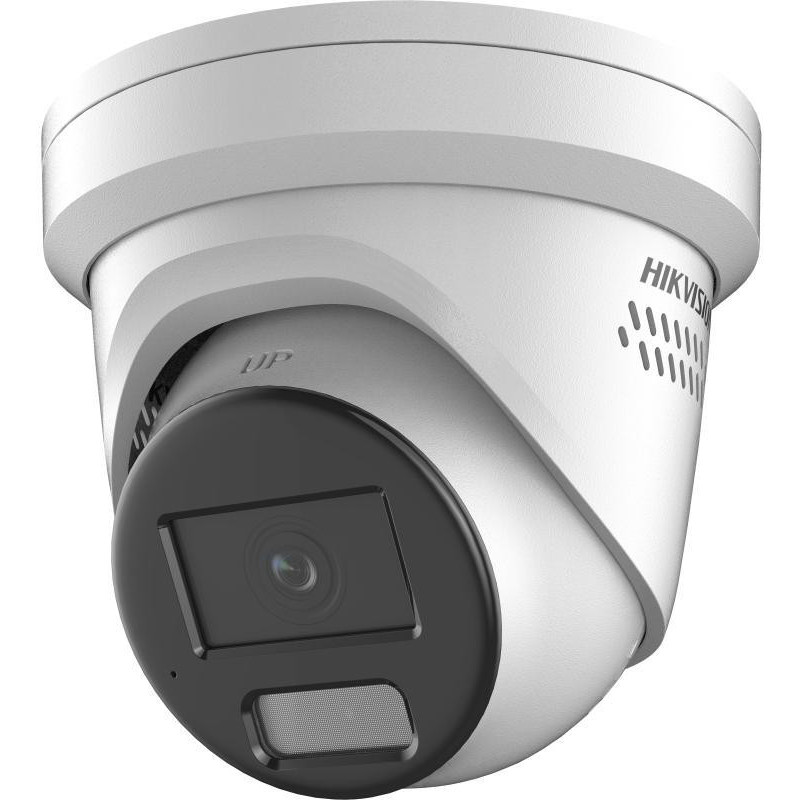

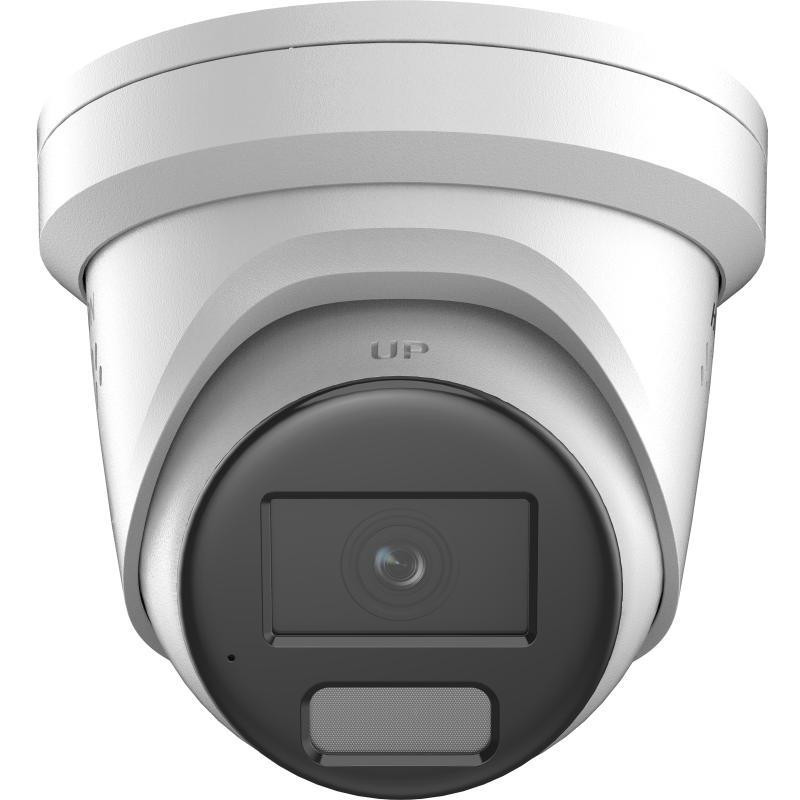

IP Camera Hikvision DS-2CD2387G2H-LISU/SL(4mm)(eF)

The Hikvision DS-2CD2387G2H-LISU/SL(4mm)(eF) is an IP security camera with 8 MP maximum resolution and a 1/1.8" CMOS sensor. It features hybrid smart supplement light, 130 dB WDR, H.265+ compression, and deep learning-based human and vehicle classification.

Key features

• 8 MP high-quality imaging
• Hybrid smart supplement light with up to 30 m range
• 130 dB WDR for clear backlight imaging
• H.265+ compression
• Deep learning-based human and vehicle alarm classification
• Built-in two-way audio
• Active strobe light and audio alarm
• Built-in storage support up to 512 GB (SD card slot)
• IP67 water and dust resistance
• Built-in alarm and audio interfaces

Specifications

• Product type: IP Security Camera
• Brand: Hikvision
• Model: DS-2CD2387G2H-LISU/SL(4mm)(eF)
• Image sensor: 1/1.8" progressive scan CMOS
• Maximum resolution: 3840 × 2160 (8 MP)
• Minimum illumination: Color: 0.0008 lux (F1.0, AGC ON), 0 lux with light
• Shutter speed: 1/3 s to 1/100,000 s
• Day/Night: IR cut filter
• Camera adjustment: Pan 0° to 360°, tilt 0° to 75°, rotate 0° to 360°
• Lens type: Fixed focal lens, 4 mm
• Focal length and field of view: 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
• Lens mount: M16
• Aperture type: Fixed
• Aperture: F1.0
• Depth of field: 4 mm: 3.8 m to ∞
• DORI: 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
• Supplement light: IR, white light
• Supplement light range: Up to 30 m
• Smart supplement light: Yes
• IR wavelength: 850 nm
• Main stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video compression: Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
• Video bitrate: 32 Kbps to 16 Mbps
• H.264 type: Baseline Profile, Main Profile, High Profile
• H.265 type: Main Profile
• Bitrate control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• ROI: 1 fixed region for main stream and sub-stream
• Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio type: Mono
• Audio bitrate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio sampling rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environmental noise filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous live view: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users
• User levels: Up to 3 users: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
• International Protection (IP) code: IP67
