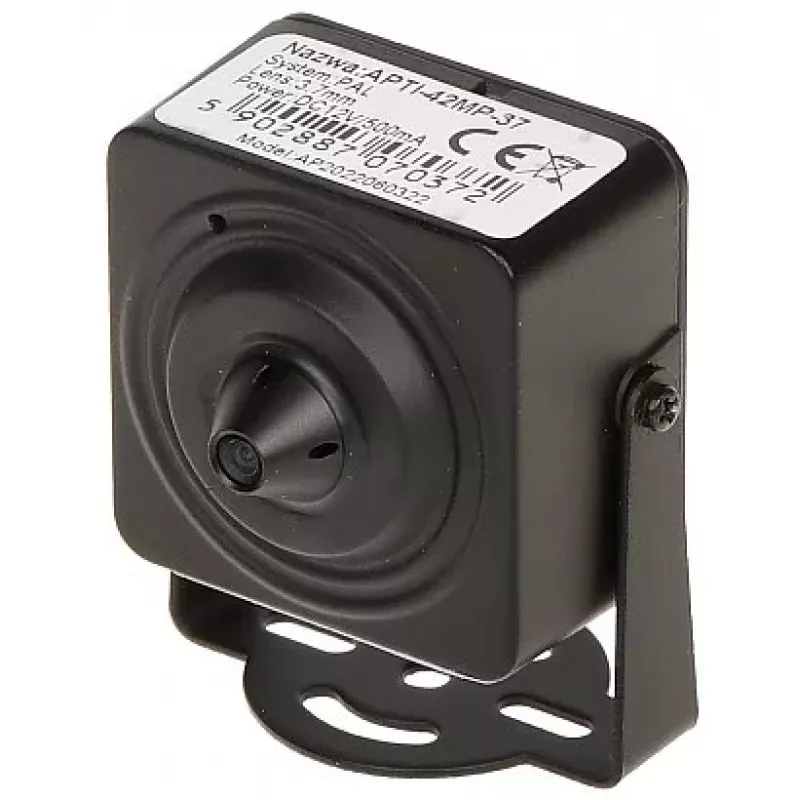

IP Camera APTI-42MP-37 Pinhole 4 MPx 3.7 mm

The APTI-42MP-37 is a high-performance IP pinhole camera designed for discreet surveillance applications. Featuring a 4 Megapixel progressive scan CMOS sensor and a fixed 3.7 mm pinhole lens, it delivers crisp 2560x1440 resolution video at up to 25 fps. With support for H.265+ compression, it reduces bandwidth and storage requirements without compromising image quality. The camera is equipped with a built-in microphone for audio capture, and supports both 12V DC and PoE (802.3af) for flexible installation. Its compact form factor makes it ideal for covert monitoring in indoor environments.

Advantages

High-resolution 4MP imaging with pinhole lens for discreet placement. Advanced video compression (H.265+) saves bandwidth and storage. Built-in microphone enables audio surveillance. Power over Ethernet simplifies cabling. Digital WDR and 3D DNR enhance image quality in challenging lighting conditions.

Suitable for

• Covert surveillance in offices, retail stores, and banks
• Indoor security monitoring where discreet cameras are required
• Integration with existing IP-based security systems

Key specifications

• Image Sensor: 1/3" Progressive Scan CMOS
• Max Resolution: 4 Megapixel (2560 x 1440)
• Lens: Pinhole Fixed 3.7 mm
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Max Frame Rate: 25 fps @ 2560x1440
• Minimum Illumination: 0.01 Lux @ (F1.2, AGC ON)
• Network Interface: 1x RJ-45 10/100 Mbps Ethernet
• Power Input: 12V DC / PoE (802.3af)
• Audio: Built-in Microphone
• ONVIF Support: Yes (Profile S/G/T)
• Dynamic Range: Digital WDR (DWDR)
• Noise Reduction: 3D Digital Noise Reduction (3D DNR)
• Smart Features: Motion Detection, Privacy Mask, ROI
• Operating Temperature: -20°C to 60°C
• Network Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, ONVIF
• Video Bit Rate: 32 Kbps ~ 8 Mbps

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the camera is mounted in a location with adequate network coverage and within the operating temperature range.
