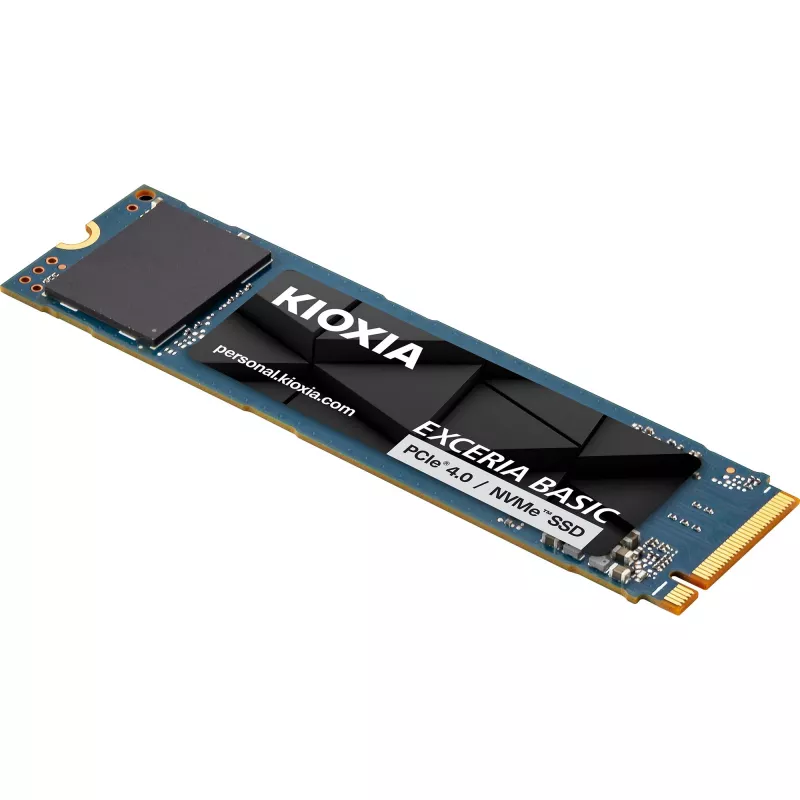

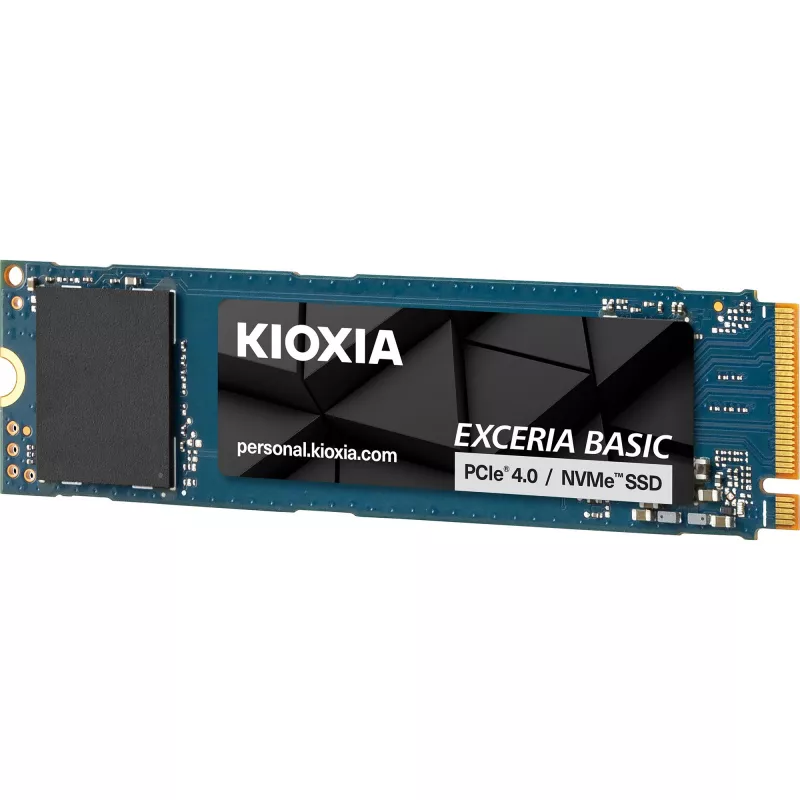

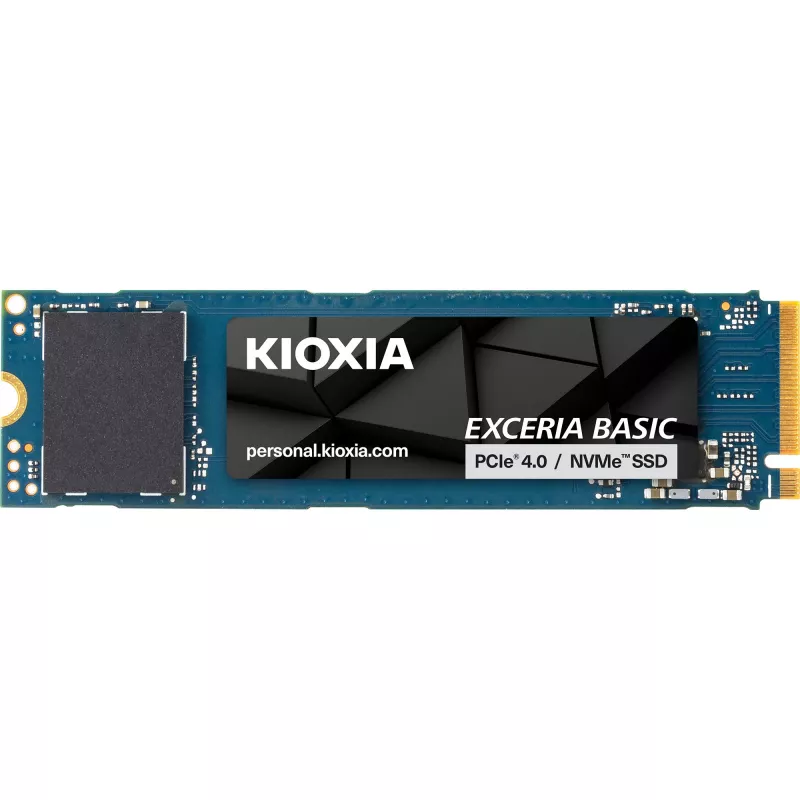

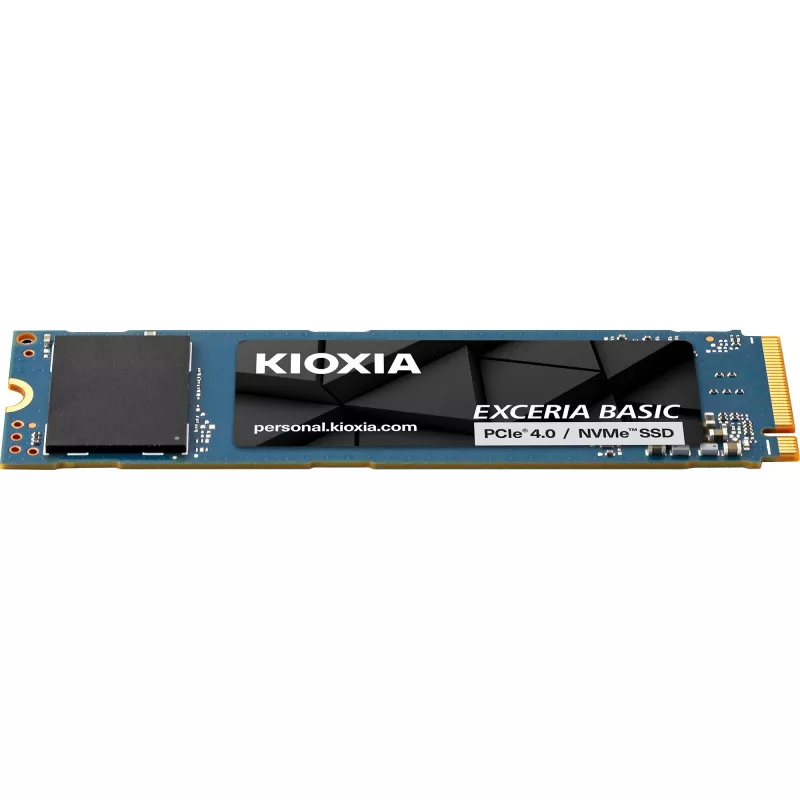

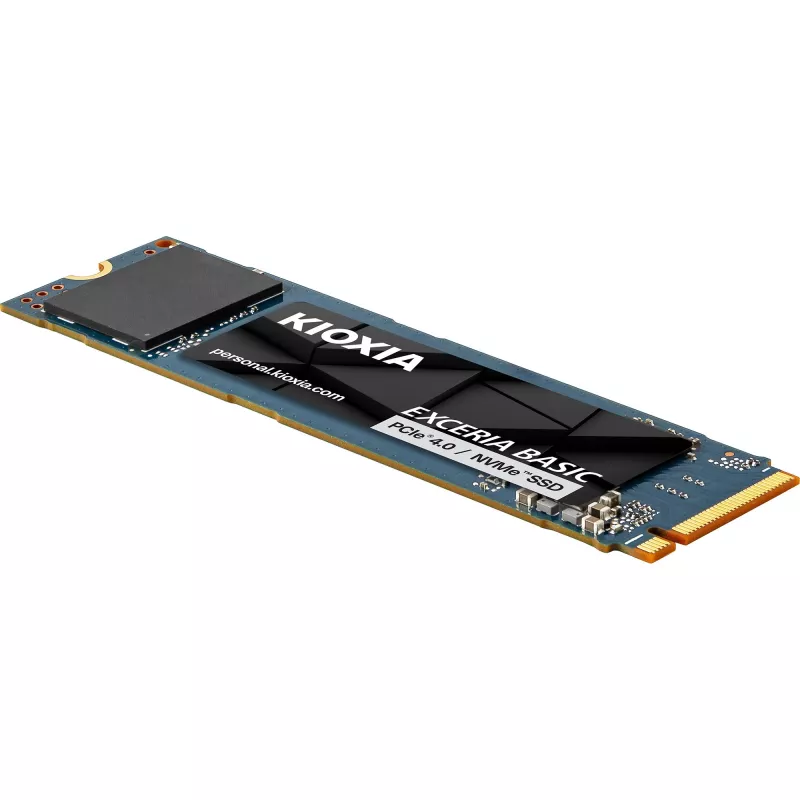

Internal SSD Kioxia LSF10Z002TG8 2 TB M.2 2280 PCIe 4.0 NVMe QLC

EXCERIA BASIC SSD series from KIOXIA brings PCIe® 4.0 performance to mainstream desktops and notebooks in an M.2 2280 form factor. This entry-level NVMe™ SSD uses BiCS FLASH™ 3D memory and is available up to 2 TB capacity, offering sequential read speeds up to 7,300 MB/s for faster system responsiveness and balanced price-to-performance.

Advantages

The EXCERIA BASIC SSD provides a cost-effective performance upgrade from SATA and PCIe® 3.0 drives by combining high sequential read throughput with NVMe™ 2.0d latency improvements. Its M.2 2280 form factor fits most modern PCs and laptops, and the included SSD Utility management software enables drive monitoring, maintenance and life percentage checks to help maintain performance.

Key specifications

• BiCS FLASH™
• NVMe™ 2.0d Technology
• M.2 2280 Form Factor
• PCIe® Gen4 x4
• SSD Utility Management Software
• Capacity: up to 2 TB (M.2 PCI Express 4.0)
• Sequential read speed: up to 7,300 MB/s*
• IOPS values indicated in source: 1,000,000 IOPS; 1,250,000 IOPS
• QLC flash (as listed in source: QLC NVMe 2.0b)
• Intended for: PC / Laptop

How to use

Install the M.2 2280 SSD into a compatible PCIe® 4.0 M.2 slot on your desktop or notebook following your system manufacturer’s instructions. After physical installation, install the SSD Utility management software from KIOXIA to monitor drive health, update firmware and view the Percentage Life Left. Ensure your system BIOS/UEFI and operating system support NVMe™ and PCIe® 4.0 for optimal performance.

Recommendations

Update the SSD Utility to the latest version and check the drive’s health regularly. For best results, use the EXCERIA BASIC SSD in systems with PCIe® Gen4 x4 support; when upgrading from SATA or PCIe® 3.0 drives, confirm system compatibility and backup data before installation.
