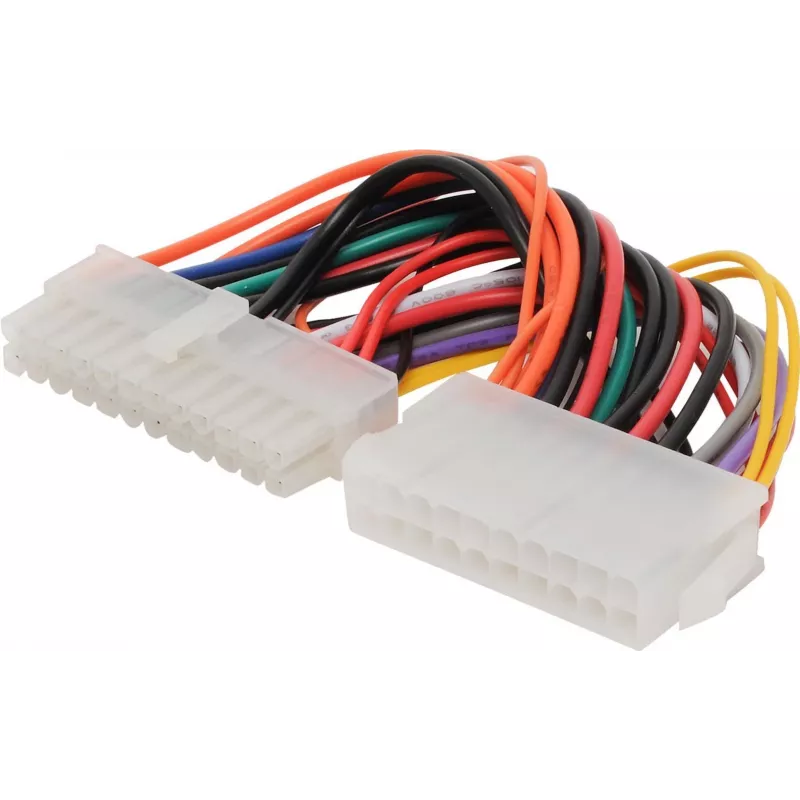

Internal Power Cable ShiverPeaks BS78227-HQ 0.15m

The ShiverPeaks BS78227-HQ internal power cable is a 0.15 m connector cable with ATX 24-pin and 20-pin terminations, intended to deliver stable mainboard power in compact desktop and small-form-factor systems. Designed for short routing distances, the cable provides secure electrical contact between power supply and motherboard connectors, supporting reliable startup and sustained operation in space-constrained builds.

Advantages

This short internal power cable reduces cable clutter inside compact cases and improves airflow by minimizing excess length. The compatible ATX 24-pin and 20-pin connectors allow straightforward connection to motherboards that accept either 20-pin or 24-pin main power inputs. Its compact 0.15 m length simplifies cable management in mini-ITX and micro-ATX enclosures while maintaining the electrical continuity required for system stability.

Suitable for

• Mini-ITX and micro-ATX compact desktop builds
• Small-form-factor PC repairs and upgrades
• Systems where reduced cable length improves airflow and tidiness
• Test benches and temporary setups requiring short main power connections

Key specifications

• Cable length: 0.15 m
• Connector types: ATX 24-pin and 20-pin
• Intended use: internal mainboard power connection
• Design: short-form internal cable for compact routing

How to use

Align the 24-pin or 20-pin connector with the corresponding mainboard power socket and push until it clicks to ensure a secure fit. Route the cable along the shortest, unobstructed path to avoid contact with fans or heat sources. Verify that both ends are fully seated before powering on the system. When replacing an existing cable, power down the system and unplug the power supply from the mains before disconnecting connectors.

Recommendations

Use this cable in enclosures where a short, direct connection is beneficial; avoid excessive bending near connector ends and keep the cable clear of moving parts. For system changes, confirm motherboard compatibility with 20-pin or 24-pin arrangements and ensure secure seating to maintain stable power delivery.
