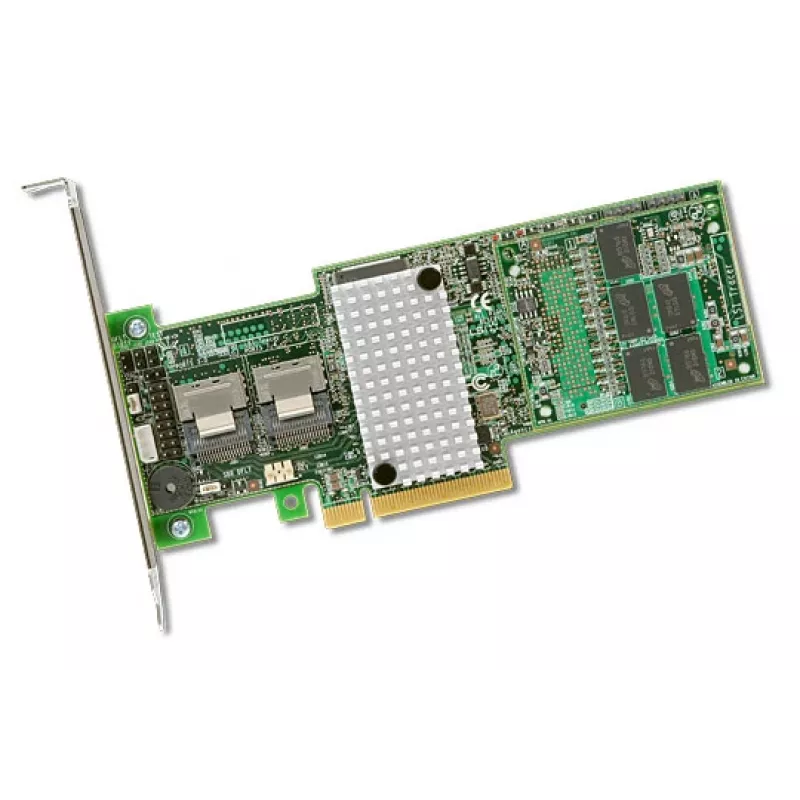

Internal Adapter IBM 4-port 6Gb/s SAS

The IBM Internal Adapter 4-port 6Gb/s SAS (model 00Y2489) is an internal PCIe SAS controller designed to provide reliable, high-speed connectivity for servers and storage systems. It supports up to 6 Gbit/s per port and is compatible with IBM Storwize V3700 and other systems that accept a PCIe host interface, helping to improve storage throughput and overall system performance in enterprise environments.

Advantages

The adapter offers four SAS ports with 6Gb/s data transfer capability, a PCIe host interface for direct connection to server motherboards, and compatibility with IBM storage solutions such as the Storwize V3700. Its internal design fits standard server slots and is intended to deliver stable, low-latency connectivity for disk arrays and storage enclosures.

Suitable for

• Enterprise servers requiring additional SAS ports
• Storage arrays and enclosures like IBM Storwize V3700
• Data centers needing reliable internal host-to-storage connectivity
• Systems with a PCIe host interface

Key specifications

• Manufacturer: IBM
• Model / MPN: 00Y2489
• Interface (host): PCIe
• Output interface: SAS
• Number of ports: 4
• Maximum transfer rate: 6 Gbit/s per port
• Form factor: Internal adapter
• EAN: 7612392243434

How to use

Install the adapter into an available PCIe slot on a compatible server motherboard following standard electrostatic discharge (ESD) precautions. Secure the card, connect SAS cables from the adapter ports to the target storage devices or backplanes, and power on the system. Install or update any required drivers and firmware provided by IBM or the server vendor to ensure full functionality and optimal performance.

Recommendations

Use quality SAS cables and ensure firmware compatibility between the adapter and connected storage. For enterprise deployments, verify server BIOS and OS support for the IBM 00Y2489 adapter and keep drivers and firmware up to date to maintain stability and performance.
