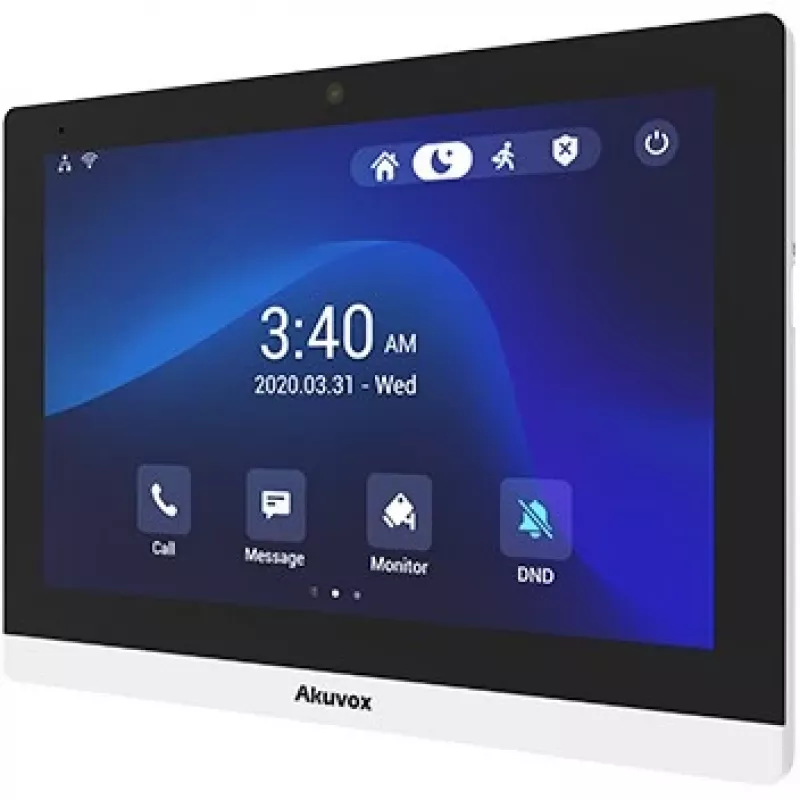

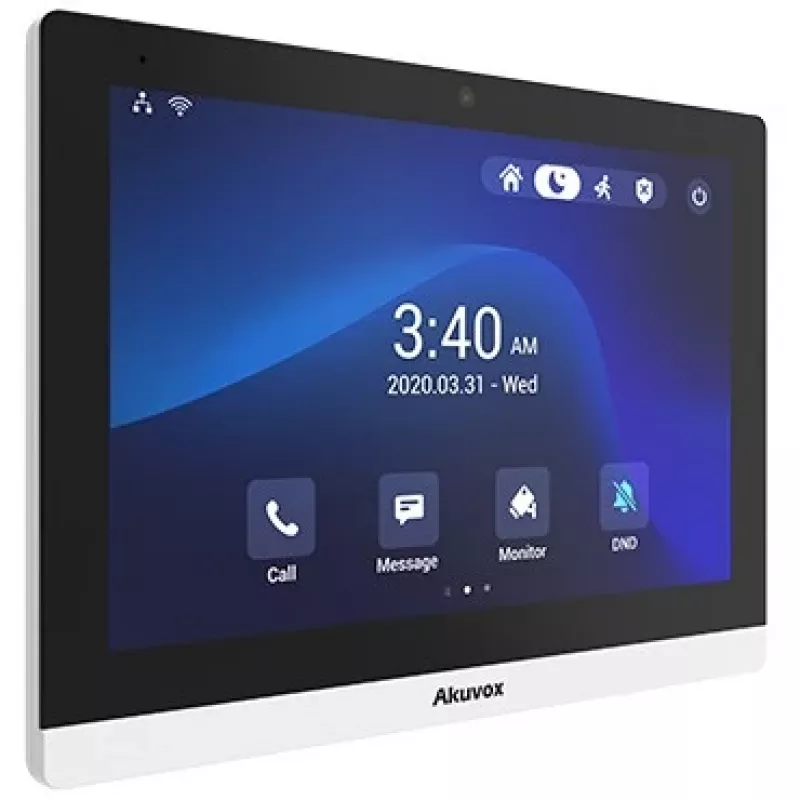

Intercom System Accessory Akuvox C319S Black Wall Mount 10 inch Display

Akuvox C319S is a 10" Android indoor monitor designed as a wall-mounted accessory for intercom systems. It provides a capacitive touchscreen display, two-way audio, HD video reception from door communicators and compatibility with SIP-based PBX systems. The unit supports PoE or an external power source and offers Wi‑Fi connectivity, making it suitable for residential and light-commercial installations.

Advantages

The 10-inch IPS capacitive touch display includes an energy-saving mode and an intuitive user interface suitable for users of varying ages. The monitor receives HD video from door communicators and allows two-way audio communication with other networked units. Compliance with the SIP standard enables straightforward integration with SIP-capable PBXes. Power over Ethernet (PoE) simplifies installation while Wi‑Fi provides flexible connectivity options.

Suitable for

• Apartment or house entry panels where a wall-mounted indoor monitor is required
• Small office reception areas integrating with SIP PBX
• Residences that need telecare pendant integration for elderly assistance
• Installations requiring PoE power or optional external power

Key specifications

• Display: 10" (25.4 cm) IPS capacitive touchscreen
• Network: Ethernet 10/100 Mbps, Wi‑Fi
• Protocols: SIP compatible for PBX integration
• Audio: Built-in microphone and speaker(s), two-way communication
• Video: HD picture reception from door communicator
• Power: Power over Ethernet (PoE) or external power source
• Mounting: Wall mount
• Colour: Black

How to use

Mount the Akuvox C319S on a suitable wall location and connect it to the local network via Ethernet or Wi‑Fi. If using PoE, supply power through an appropriate PoE switch or injector; otherwise connect the external power source. Configure SIP settings to integrate with your SIP-capable PBX and pair any compatible door communicator units to receive HD video and establish two-way audio. Use the capacitive touchscreen and on-screen interface to manage calls, view visitors, and configure settings.

Recommendations

Install the monitor at eye level for comfortable viewing and speaking height. Use a PoE-capable switch for simplified power and network cabling. Ensure firmware is kept up to date and test SIP settings and door communicator video streams during installation to confirm compatibility.
