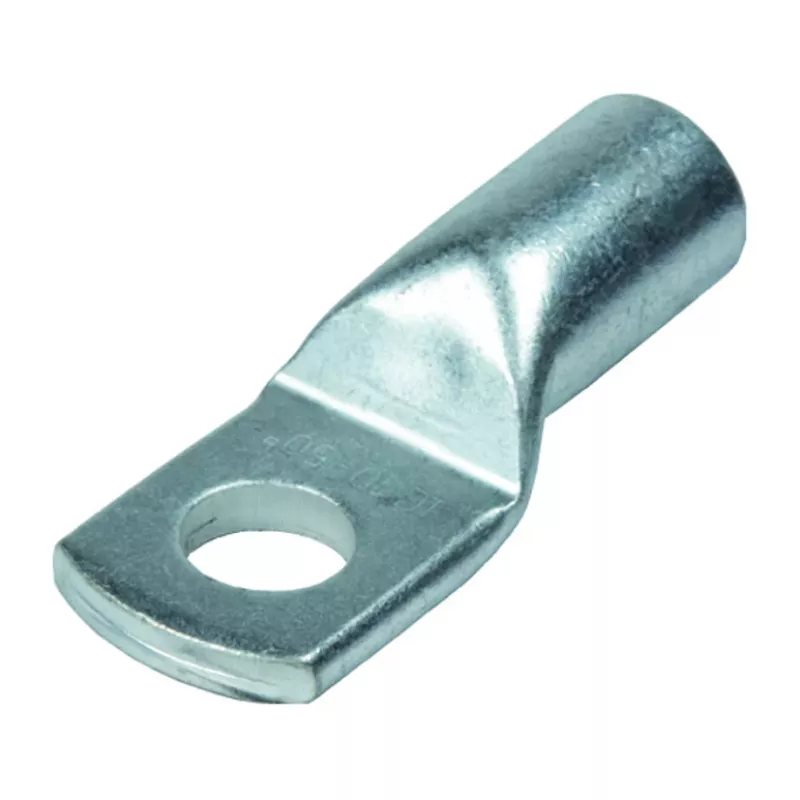

Intercable ICR7010 R-Series Tubular Cable Lug 70 mm² M10 Tin-Plated

The Intercable ICR7010 tubular cable lug stands out through R-Series precision engineering, delivering a heavy-duty crimped connection that excels in power distribution and industrial systems. Unlike generic lugs, it is crafted from high-grade electrolytic copper (E-Cu) per EN 13600 and finished with electro-tin plating, offering exceptional corrosion resistance and low contact resistance. Fully compliant with DIN 46235, this lug ensures a secure, durable connection for 70 mm² conductors.

Highlights

• Tubular design for clean, consistent crimps
• Electrolytic copper (E-Cu) per EN 13600
• Electro-tin plated surface – resists oxidation
• Inspection hole allows visual verification of conductor insertion
• Meets DIN 46235 standards

In daily use

Ideal for panel builders, electricians, and maintenance teams, this cable lug is easy to install with standard crimping tools. The M10 bolt hole fits common busbar and equipment connections, while the barrel accepts 70 mm² stranded or solid copper conductors. Its robust construction handles operating temperatures from -40°C to +120°C, making it suitable for demanding environments. Use it for power distribution, motor connections, earthing systems, and industrial machinery.

Full specifications

• Cable cross-section: 70 mm²
• Bolt hole: M10 (10.5 mm)
• Overall length (L): 58 mm
• Barrel outer diameter (D): 15.5 mm
• Barrel inner diameter (d1): 11.5 mm
• Flag width (B): 22 mm
• Flag thickness (S): 3.5 mm
• Material: Electrolytic copper (E-Cu)
• Surface finish: Electro-tin plated
• Standard: DIN 46235
• Series: R-Series
• Connection method: Crimp
• Inspection hole: Yes
• Operating temperature: -40°C to +120°C
• RoHS compliance: Yes

Final note

With its precision engineering and high-quality materials, the Intercable ICR7010 ensures reliable, long-lasting electrical connections in even the most demanding industrial applications.
