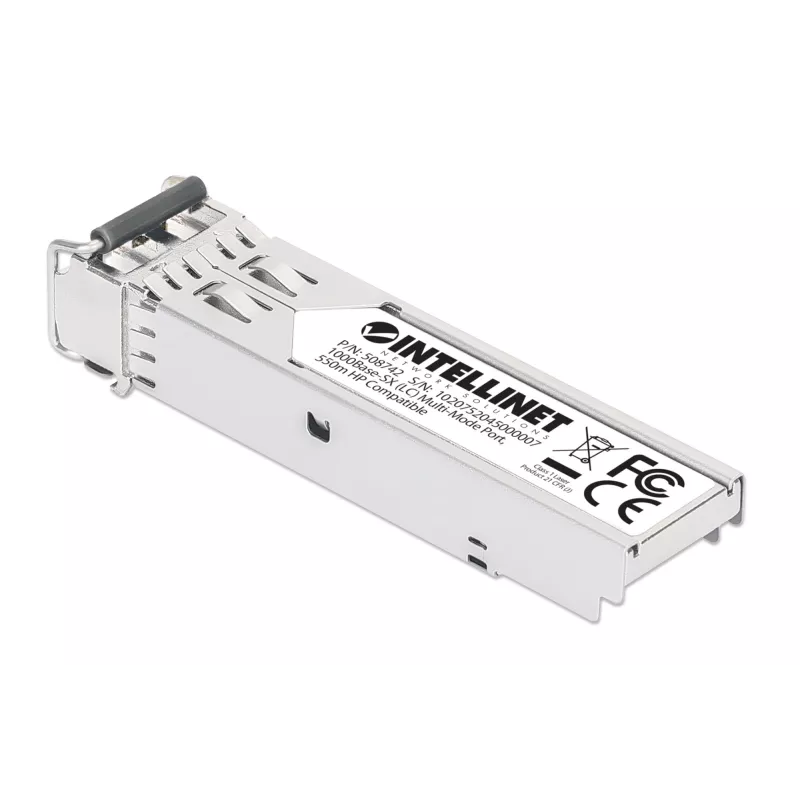

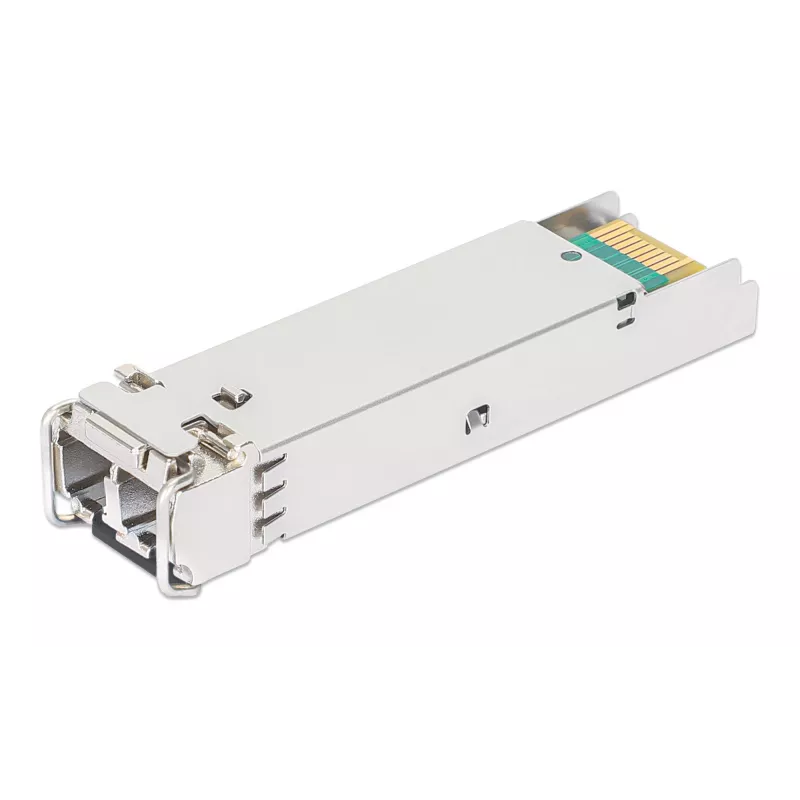

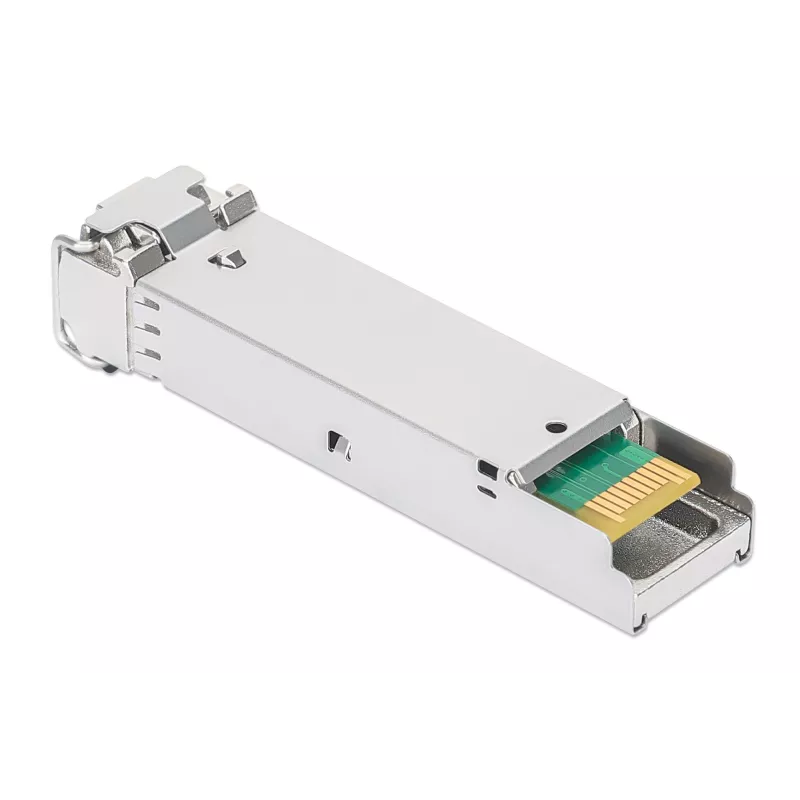

Intellinet Transceiver Module Optical Gigabit Fiber SFP Mini-GBIC 1000Base-Sx LC 550m 850nm

Intellinet Optical Transceiver Module is a Gigabit Fiber SFP (mini-GBIC) designed for multi-mode networks. It provides 1000Base-SX connectivity via an LC duplex port, supports up to 550 m at an 850 nm wavelength, and is programmed to be compatible with HP / HPE switches and routers (vendor part numbers J4858A / J4858B / J4858C / J4858D).

Advantages

The module's compact mini-GBIC metal housing reduces electromagnetic interference and increases mechanical durability while enabling high-density fiber installations. It delivers a balance of performance and affordability and is fully hot-pluggable, allowing installation or replacement without restarting the network switch.

Suitable for

• Multi-mode fiber connections in data centers and wiring closets
• High-density switch or router ports requiring SFP form factor
• Network upgrades or maintenance where HPE compatibility is required

Key specifications

• Form factor: SFP (mini-GBIC)
• Standard: 1000Base-SX
• Connector: LC duplex
• Distance: up to 550 m (multi-mode)
• Wavelength: 850 nm
• Compatibility: programmed for HPE vendor part numbers J4858A / J4858B / J4858C / J4858D
• Brand / MPN / EAN: INTELLINET / 508742 / 0766623508742

How to use

Insert the SFP transceiver into an open SFP slot on a compatible switch or router until it clicks into place. Connect LC duplex multimode fiber cables to the module's LC ports, ensuring correct transmit/receive orientation. The module is hot-pluggable, so it can be installed or replaced without powering down the device. Verify link LEDs and switch interface status to confirm the connection.

Recommendations

Use multimode fiber rated for 850 nm and observe the 550 m maximum distance. Handle the optical interfaces carefully, keep protective caps on unused ports, and ensure firmware or driver requirements of the host device are met for HPE compatibility.
