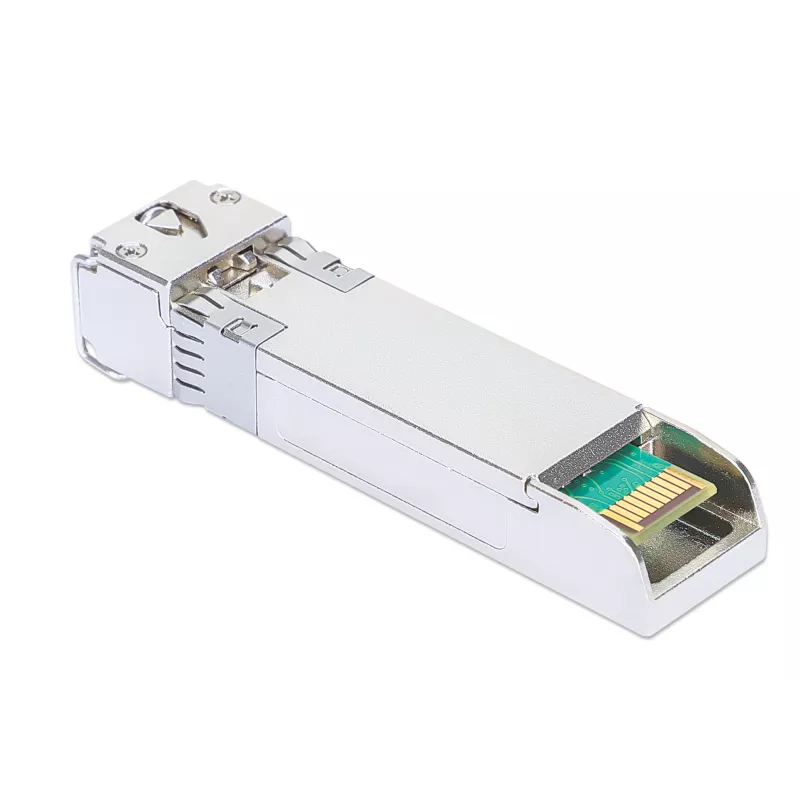

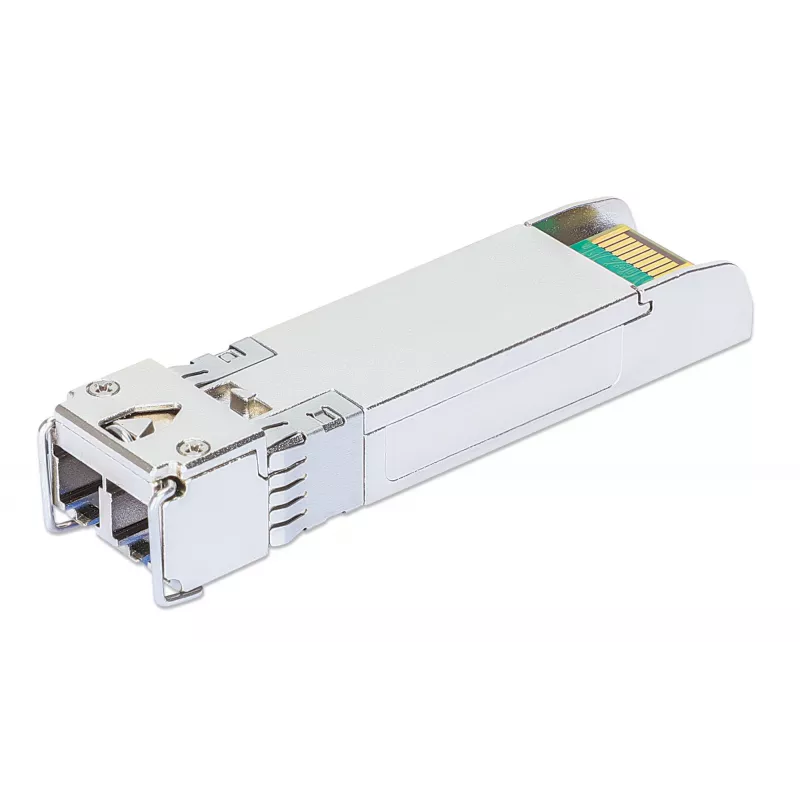

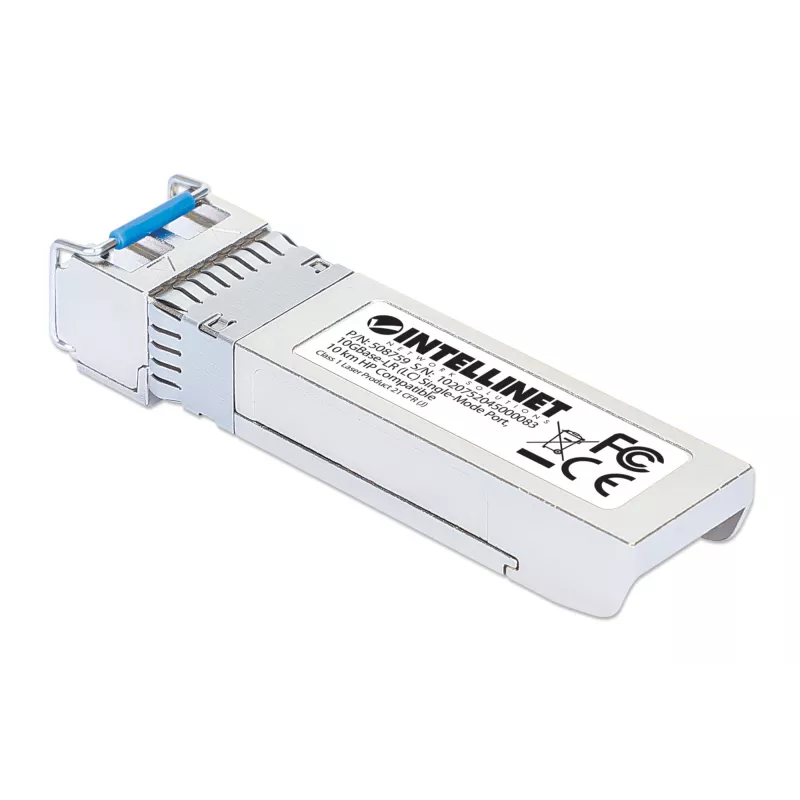

Intellinet Transceiver Module Optical 10 Gigabit Fiber SFP+ 10GBase-LR 300m 1310nm

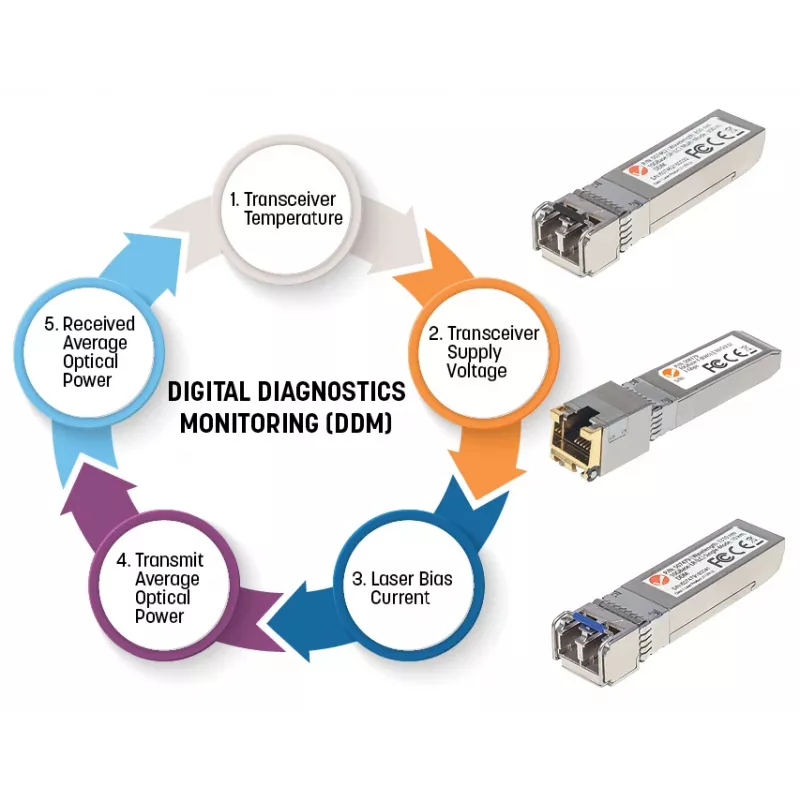

The Intellinet 10GBase-LR SFP+ transceiver module provides 10 Gigabit Ethernet connectivity over single-mode fiber with a 1310 nm wavelength. Housed in a metal casing to reduce electromagnetic interference and increase durability, this SFP+ module is compatible with HP / HPE systems and programmed to broadcast vendor part numbers J9151A, J9151D, JD094A and JD094B. The module supports hot-pluggable installation and standard Digital Diagnostics Monitoring (DDM) for real-time monitoring of optical output/input power, temperature, laser bias current and supply voltage.

Advantages

The compact mini-GBIC (SFP+) form factor allows high-density fiber installations while occupying minimal port space. Metal housing improves robustness and EMI protection. The module delivers 10 Gbps performance over single-mode fiber and supports hot-swap installation to avoid network downtime. Built-in DDM provides diagnostic visibility for proactive maintenance.

Suitable for

• 10GbE links between buildings or in data center backbones
• Single-mode fiber runs up to specified distances
• High-density switch or router installations requiring compact transceivers

Key specifications

• Standard: 10GBase-LR SFP+
• Wavelength: 1310 nm
• Maximum data rate: 10,000 Mbit/s (10 Gbps)
• Maximum transfer distance: up to 300 m over single-mode fiber (note: product materials also reference up to 10 km in other contexts)
• Connector: LC
• Power supply voltage: 3.3 V
• Typical power consumption: 1 W
• Housing: metal, colour: silver
• Dimensions: 14 mm x 57 mm x 12 mm
• Weight: 0.02 kg
• Compatibility: programmed for HPE part numbers J9151A / J9151D / JD094A / JD094B

How to use

Install the SFP+ module into a compatible switch or router SFP+ slot until it seats firmly. Connect an LC-terminated single-mode fiber cable to the module. The transceiver is hot-pluggable so it can be inserted or removed without powering down the host device. Use your equipment’s management interface to verify the link status and to access DDM values for monitoring optical power, temperature and supply parameters.

Recommendations

Use single-mode fiber with LC connectors and verify fiber type and connector cleanliness before insertion. Observe manufacturer limits for link distance and power budgets. Monitor DDM readings during installation and operation to ensure signal integrity.
