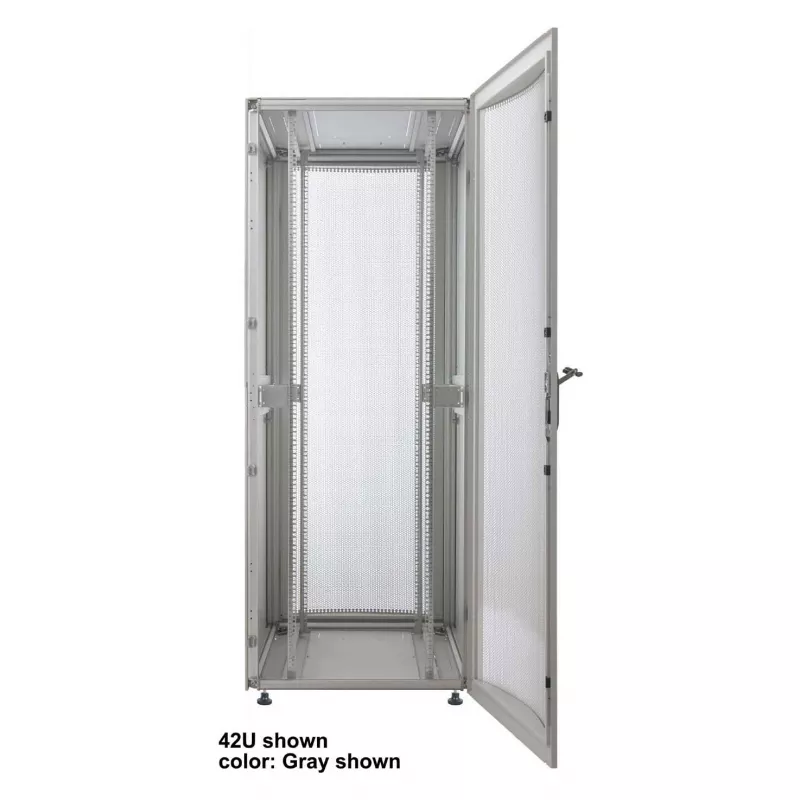

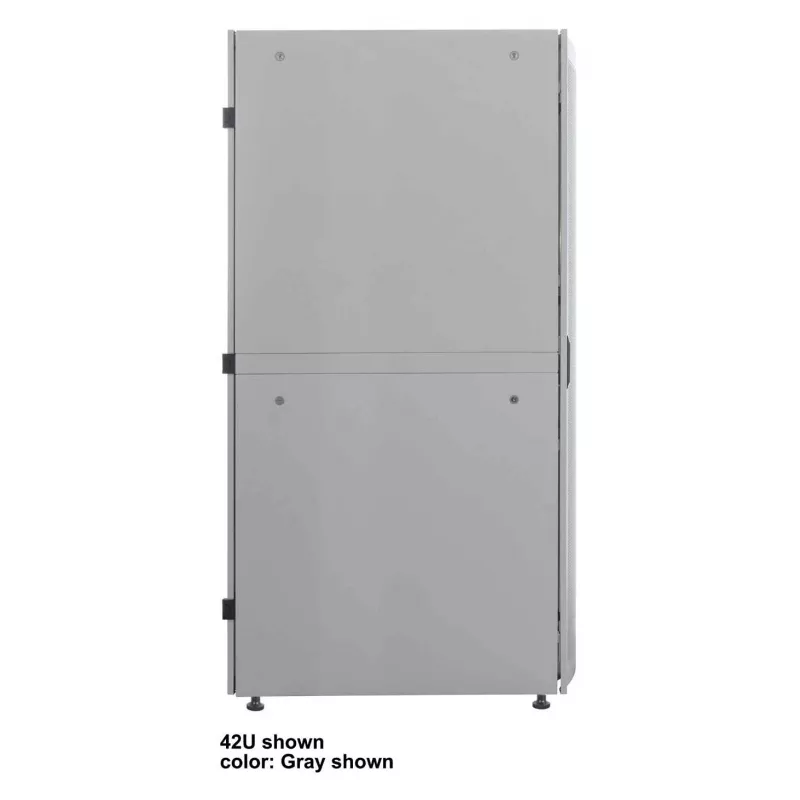

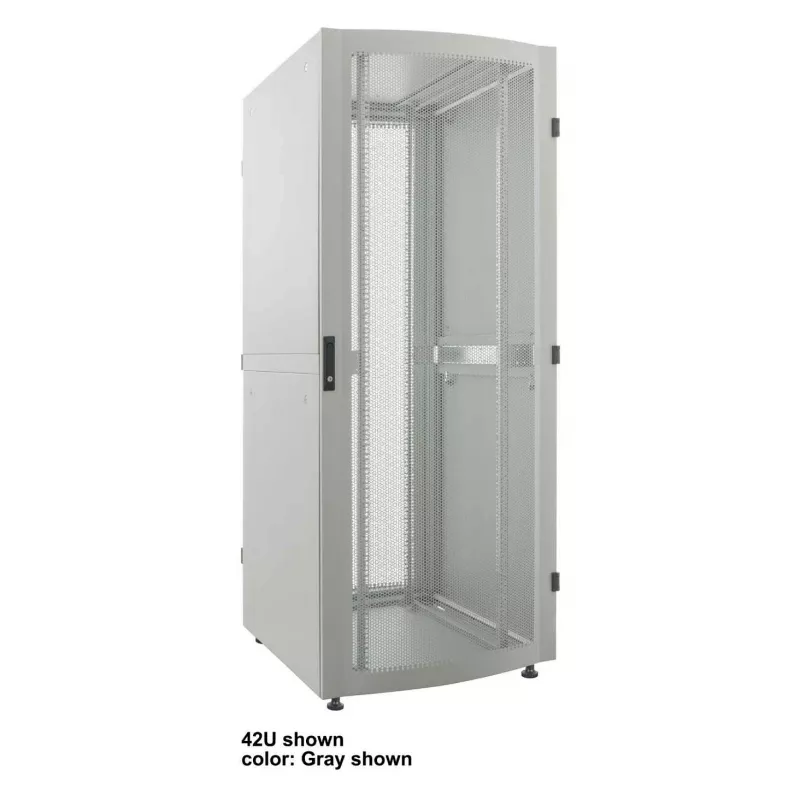

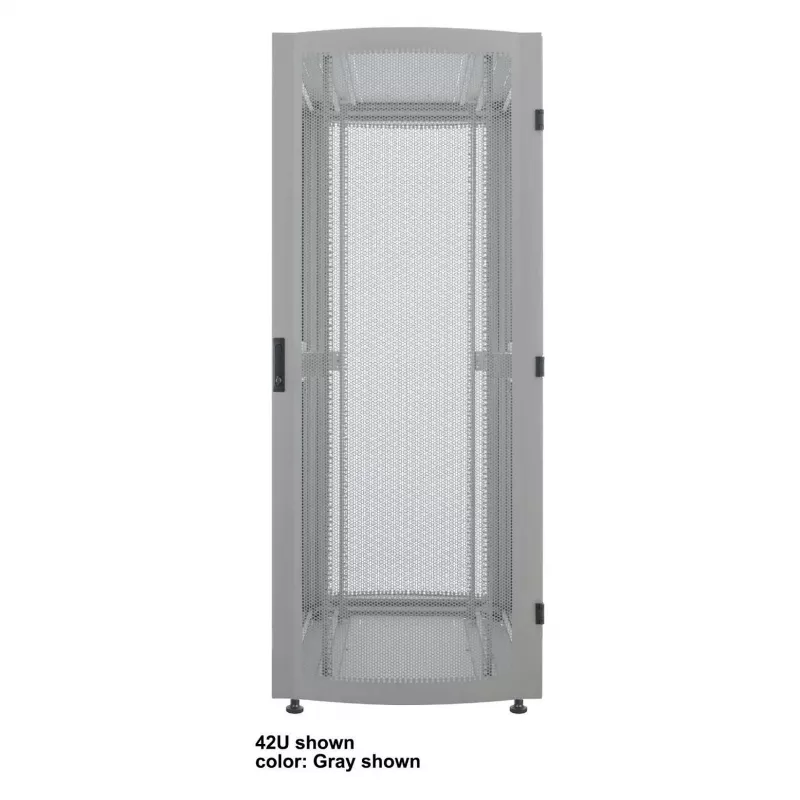

Intellinet Premium Line 36U Server Cabinet – 19 inch Rack, 800x1000mm, Black, 2000kg Capacity, Flatpack

Data center technicians and IT managers tasked with housing high-density networking hardware require a rack that delivers uncompromising structural integrity. The Intellinet Premium Line 36U Server Cabinet, with its 2000 kg static load capacity, provides the robust foundation needed for enterprise servers, switches, and patch panels. Its 800mm width and 1000mm depth accommodate deep equipment, while the flatpack design simplifies transport and installation through standard doorways.

Key specifications

• Rack type: Server Cabinet (19-inch)
• Rack capacity: 36U
• Maximum weight capacity: 2000 kg (static)
• Height: 1767 mm
• Width: 800 mm
• Depth: 1000 mm
• Colour: Black (RAL 9005)
• Material: SPCC cold rolled steel
• Front door: Perforated steel, single section, 180° opening
• Rear door: Perforated steel, split section, 180° opening
• Side panels: Removable, lockable
• Cable entry: Top and bottom with brush strips
• Cooling: Passive ventilation, optimized for active cooling
• Security: Lockable front, rear, and side panels
• Mounting rails: Adjustable depth, square hole
• Feet/castors: Heavy-duty castors and levelling feet included
• Grounding: Grounding kit included
• IP protection class: IP20
• Compliance: RoHS, REACH
• Frame construction: Welded frame
• Finish: Powder coated
• Shipping condition: Flatpack (disassembled)

Why choose it

This cabinet is engineered for demanding environments where equipment protection and accessibility are non-negotiable. The perforated doors and passive ventilation promote efficient airflow, while the lockable panels safeguard sensitive components. The adjustable mounting rails offer flexibility for various server depths, and the included castors and levelling feet ensure stable positioning. With a 2000 kg load capacity, it confidently supports fully loaded equipment.

Ideal use cases

• Enterprise data centers and server rooms
• Telecommunications and network infrastructure
• High-density storage and computing environments
• Facilities requiring secure and organized equipment housing

Good to know

The cabinet ships as a flatpack, which reduces shipping volume and allows for easier maneuverability. Assembly is straightforward with included hardware. The grounding kit ensures proper electrical safety, and the IP20 rating provides basic protection against solid objects. This model is RoHS and REACH compliant, reflecting Intellinet's commitment to environmental standards.
