DIGITUS SOHO Pro DN-49201-SET — 19 inch 4U Wall-Mounted Network Cabinet Set, 540x400 mm, IP20, Key Lock, Light Grey

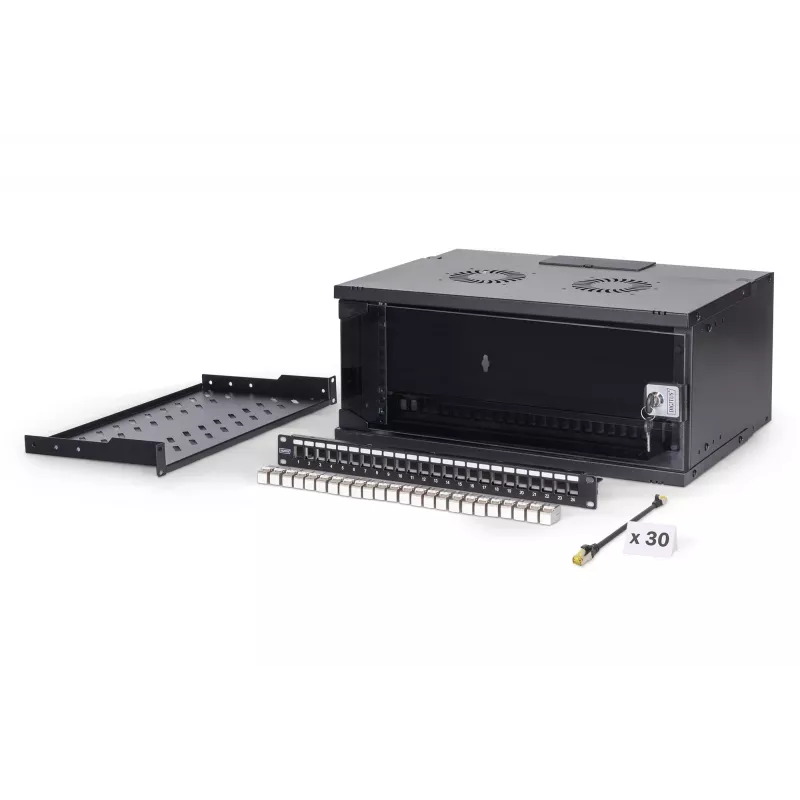

Compact yet complete, the DIGITUS SOHO Pro DN-49201-SET bundles a 4U wall-mounted enclosure with a 1U shelf, 24-port modular patch panel, 24 shielded Cat 6A keystone modules, and 30 short Cat 6A S/FTP patch cables. This ready-made set eliminates the guesswork of mixing components, saving planning time and ensuring compatibility for 10GBase-T and PoE deployments in small offices, home offices, and tight technical rooms.

Highlights

• All-in-one 19" 4U wall-mounted network set with matched accessories
• Shielded Cat 6A keystone modules and S/FTP patch cables support 10GBase-T and PoE
• Steel closed-frame cabinet with IP20 protection and keyed lock for basic security
• Supports up to 60 kg of equipment; depth-adjustable 19" profile rails
• Passive ventilation slots and prepared for optional fan unit
• Light grey (RAL 7035) finish, glass front door, removable side panels

In daily use

Mount the enclosure on a wall in a sub-distribution or technical room, then install the included shelf and patch panel. The 24 shielded Cat 6A keystone modules snap into the panel, while the 30 short S/FTP patch cables connect switches and devices with reliable high-speed links. The glass door opens 180 degrees for easy access, and the keyed lock keeps unauthorized hands away from critical connections.

Full specifications

• Rack type: Wall-mounted rack cabinet
• Rack standard: 19 inch
• Rack units: 4U
• External dimensions (W x D x H): 540 x 400 x 230 mm
• Protection rating: IP20
• Security: Lockable front door (key lock)
• Door type: Glass front door
• Side panels: Removable
• Material: Steel sheet (1.1–1.5 mm thickness)
• Colour: Light grey (RAL 7035)
• Load capacity: 60 kg
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive ventilation slots, prepared for fan unit
• Mounting rails: 2x 19" profile rails, depth adjustable
• Assembly: Pre-assembled
• Door opening angle: 180 degrees
• Included accessories: 1U shelf, 24-port modular patch panel, 24 shielded Cat 6A keystone modules, 30 short Cat 6A S/FTP patch cables

Final note

For a fast, secure, and high-performance network setup in limited spaces, the DIGITUS SOHO Pro DN-49201-SET provides everything you need in one box—no compatibility worries, just wall-mount, install, and connect.
